The Problem: Traditional Routers Reach Their Limits
In today's connected world, traditional routers are often no longer sufficient to meet the increasing demands for speed, reliability, and robustness. Especially in industrial environments, mobile applications, or remote areas, stable and fast internet connections are essential. Fluctuating signal strengths, limited bandwidths, and a lack of fail-safety can lead to significant productivity losses and jeopardize critical processes.
The Solution: The Teltonika RUTC50 – Your 5G Powerhouse for Every Challenge
The Teltonika RUTC50 sets new standards in connectivity. This industrial 5G Router is designed to offer you superior performance and unwavering reliability. With its support for 5G Sub-6GHz SA/NSA, it delivers breathtaking speeds of up to 3.4 Gbit/s download and is fully backward compatible with LTE Cat 20 and 3G. The integrated WLAN 6 (802.11ax) technology with Dual-Band MU-MIMO ensures efficient and fast wireless networking for up to 512 devices simultaneously, while the Dual-SIM function with intelligent auto-failover and load balancing ensures that your connection never drops.
Maximum Performance and Flexibility for Your Applications
The RUTC50 is not only fast but also extremely versatile. It features five Gigabit Ethernet ports (1x WAN, 4x LAN) for flexible integration into existing networks and offers impressive processing power thanks to the powerful Mediatek Dual-Core 1.3 GHz ARM Cortex A53 processor and 512 MB RAM (some versions with 1GB RAM and 8GB Flash for advanced edge computing applications). The robust construction made of anodized aluminum and the extended operating temperature range of -40 °C to +75 °C with IP30 protection make it the ideal partner for demanding industrial and outdoor applications. Furthermore, the router offers GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS) for precise location services and time synchronization.
Security and Management at the Highest Level
With the OpenWrt-based RutOS operating system, you benefit from a variety of advanced security features and management tools. These include extensive VPN protocols such as OpenVPN, IPsec, GRE, PPTP, L2TP, ZeroTier, and WireGuard, as well as firewall, VLAN support, and web filtering. Compatibility with the Teltonika Remote Management System (RMS) allows you to centrally monitor, configure, and maintain your device fleet from anywhere in the world, significantly reducing administrative effort and maximizing operational security.
Technical Specifications
| Manufacturer: | Teltonika Networks |
| Model: | RUTC50 |
| Product Type: | Industrial 5G Router |
| Cellular Standard: | 5G Sub-6GHz (SA/NSA), LTE Cat 20, 3G |
| 5G Download Speed: | Up to 3.4 Gbit/s (4x4 MIMO) |
| 5G Upload Speed: | Up to 900 Mbit/s (2x2) |
| WLAN Standard: | WLAN 6 (802.11b/g/n/ac/ax), Dual-Band (2.4 GHz / 5 GHz), MU-MIMO |
| WLAN Speed 5 GHz: | Up to 2402 Mbit/s |
| WLAN Speed 2.4 GHz: | Up to 576 Mbit/s |
| Max. WLAN Users: | Up to 512 |

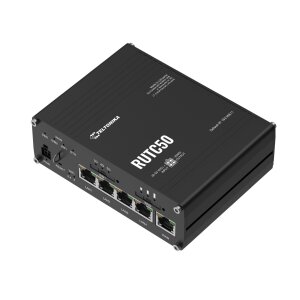

| Ethernet Ports: | 5 x Gigabit Ethernet (1x WAN, 4x LAN) |
| SIM Slots: | 2 x Mini SIM (2FF), eSIM (optional) |
| CPU: | Mediatek Dual-Core 1.3 GHz, ARM Cortex A53 |
| RAM: | 512 MB DDR3 (some versions with 1GB) |
| Flash Memory: | 16 MB NOR, 512 MB NAND (some versions with 8GB) |
| Operating System: | RutOS (OpenWrt based Linux OS) |

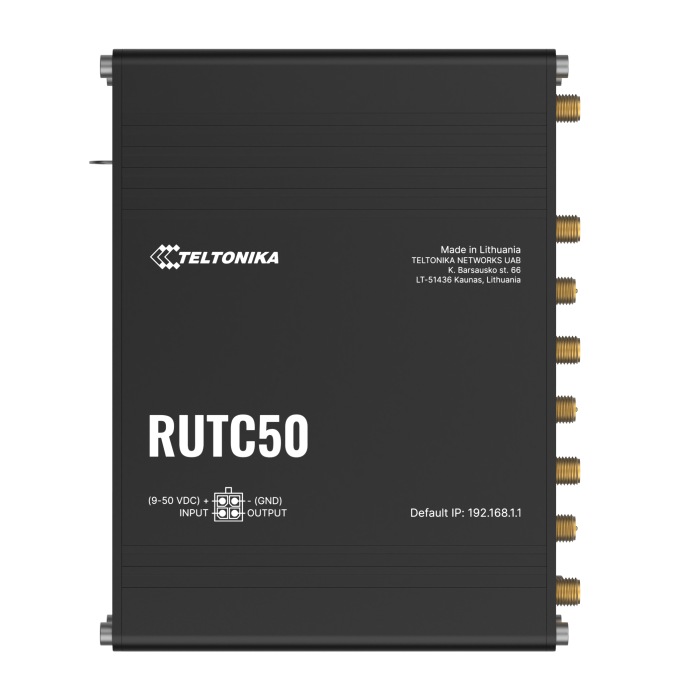

| Power Supply: | 9-50 VDC, 4-Pin Industrial DC Socket, Passive PoE (LAN1) |
| Power Consumption: | Idle: <4.5W, Max: <13.5W |
| Operating Temperature: | -40 °C to +75 °C |
| Humidity: | 10% to 90% non-condensing |
| Protection Rating: | IP30 |
| Dimensions (W x H x D): | 103.4 x 42.6 x 130.4 mm |

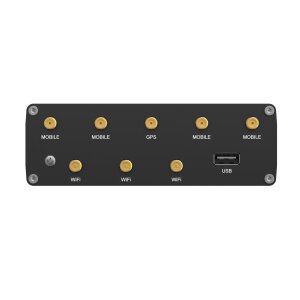

| Antenna Connectors: | 4x SMA (5G/LTE), 3x RP-SMA (WLAN), 1x SMA (GNSS) |
| GNSS Support: | GPS, GLONASS, BeiDou, Galileo, QZSS |
| USB Port: | 1 x USB-A 2.0 |
Scope of Delivery
| 1 x Teltonika RUTC50 5G Router |
| 1 x 24W Power Supply (EU PSU) |
| 4 x 5G Cellular Antennas (swivel, SMA connector) |
| 3 x WLAN Antennas (magnetic base, RP-SMA connector, 1.5m cable) |
| 1 x GNSS Antenna (self-adhesive, SMA connector, 3m cable) |
| 1 x Ethernet Cable (1.5m) |
| 1 x SIM Adapter Kit |
| 1 x Quick Start Guide |
Häufig gestellte Fragen (FAQ)
What speeds does the Teltonika RUTC50 achieve in the 5G network?
The Teltonika RUTC50 achieves impressive download speeds of up to 3.4 Gbps and upload speeds of up to 900 Mbps in the 5G Sub-6GHz network.
Does the RUTC50 support Wi-Fi 6 and how many devices can it connect?
Yes, the RUTC50 supports the latest Wi-Fi 6 (802.11ax) standard with dual-band and MU-MIMO technology. It can connect up to 512 devices simultaneously with high efficiency.
What does the Dual-SIM function with Auto-Failover mean for the RUTC50?
The Dual-SIM function with Auto-Failover means the router can accommodate two SIM cards. Should the primary cellular connection fail (e.g., due to weak signal or data limit), the RUTC50 automatically and seamlessly switches to the second SIM card to ensure uninterrupted connectivity.
Is the Teltonika RUTC50 suitable for use in harsh industrial environments?
Absolutely! The RUTC50 features a robust anodized aluminum casing and an extended operating temperature range from -40 °C to +75 °C. With an IP30 protection rating, it is perfectly equipped for demanding industrial environments.
What management options does the RUTC50 offer?
The RUTC50 runs on the powerful RutOS (OpenWrt-based Linux OS) and is fully compatible with the Teltonika Remote Management System (RMS). This allows for comprehensive remote monitoring, configuration, and maintenance of the router from anywhere.
