Your Invisible Communication Hub: Performance That Hides
Are you looking for an Antenna that not only delivers top performance but also completely recedes into the background visually? The Poynting MIMO-4-19 in black is the answer. Specially developed for users who want to make no compromises, it offers the maximum possible Antenna configuration with nine elements in a single housing. Whether on your highly equipped off-road truck, an expedition vehicle, or a civilian emergency vehicle – the black MIMO-4-19 looks like a natural part of the construction and does not disturb the aesthetics of your vehicle. It is ideal for mobile command centers, undercover investigators, or anyone who wants to operate a mobile data center with 4x4 MIMO 4G / 5G and 4x4 MIMO WLAN to enable video editing, cloud uploads, and conferences even in the most remote places in the world. The massive number of Antennas ensures redundancy and the most stable connections, even in difficult situations.
Robustness Meets Versatility: Ready for Every Challenge
The Poynting MIMO-4-19 is more than just an Antenna – it is a statement of extreme resilience and adaptability. Thanks to its IP69K certification, it is absolutely waterproof and dustproof, and the IK10 rating guarantees the highest impact resistance. This makes it the first choice for demanding environments such as Transport & Automotive, Marine applications, or use in industry and event technology. Imagine you need a constant, high-bandwidth data connection for autonomous agricultural or construction machinery: the MIMO-4-19 provides the necessary connectivity and robustness. It is also the perfect solution for temporary broadband supply at remote workplaces or construction sites where conventional infrastructure is lacking. Its omnidirectional radiation characteristic ensures excellent coverage in all directions.
Future-proof Connectivity: Always One Step Ahead
With the Poynting MIMO-4-19, you are investing in the future of your connectivity. This Ultra-Wideband antenna covers an impressive frequency spectrum from 617 MHz to 6000 MHz for cellular, making it fully 5G 4G capable and supporting future bands up to 6 GHz. The four integrated WLAN Antennas are designed for dual-band operation (2.4 GHz and 5-7.2 GHz) and thus support the latest standards such as WLAN 6, 6E, and are even WLAN 7 Ready. This means for you: you are well equipped for the highest data rates and stable wireless communication, whether you are setting up your local Network in the camp or transmitting critical data via 5G. The integrated GPS/GLONASS function also ensures precise positioning and navigation, an indispensable feature for many M2M & IoT applications and mobile command centers.
Easy Integration, Maximum Flexibility: Your Mounting Options

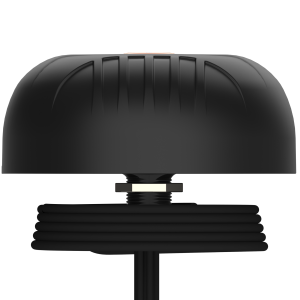

Despite the impressive number of nine integrated antenna elements and the associated cables, the installation of the Poynting MIMO-4-19 is surprisingly simple and flexible. All nine cables run through a single, central threaded stud. This means for you: you only need a single hole in the roof or mounting surface to achieve maximum performance – an enormous simplification compared to multiple individual Antennas. The antenna is also ground plane independent, which gives you additional freedom in placement. The scope of delivery includes various Antenna Mounting Accessories options: a threaded stud set for clamping thicknesses up to 225 mm, a mast/wall mount, and an adhesive pad for surface mounting. This allows you to attach the antenna exactly where you need it, whether on a vehicle, a temporary structure, or a wall.
Strengths & Notes at a Glance
- Pro: Comprehensive Connectivity in One Enclosure: The 9-in-1 integration of 4x4 MIMO 5G/4G, 4x4 MIMO WLAN, and GPS/GLONASS in a single antenna significantly simplifies installation, reduces space requirements, and minimizes the number of necessary roof penetrations.
- Pro: Extremely Robust and Weather-Resistant: With an IP69K and IK10 rating, the antenna is extremely resistant to water, dust, extreme temperatures (-40°C to +80°C), and impacts, making it ideal for demanding transport and marine environments.
- Pro: Future-proof Broadband Coverage: The antenna offers ultra-wide frequency coverage for cellular (617-6000 MHz), covering current 4G/4G and future 5G bands up to 6 GHz, as well as dual-band WLAN (2.4 GHz and 5-7.2 GHz), ensuring compatibility with new technologies like WLAN 6/6E/7.
- Note: Lack of Support for Band 71: The antenna does not support T-Mobile Band 71 (600-700 MHz), which is important in rural areas of the USA for improved range and coverage. This may limit performance in certain regions.
- Note: Fixed Cable Length: The standard cable length of 2 meters for all elements can be a limitation in larger vehicles or complex installation scenarios requiring longer cable runs, necessitating additional extension cables with potential signal loss.
Specifications & Features
| Manufacturer: | Poynting Antennas |
| Model: | MIMO-4-19 (A-MIMO-0004-V1-19-B) |
| Antenna Type: | 9-in-1 Multi-frequency Antenna |
| Configuration: | 4x4 MIMO Cellular, 4x4 MIMO WLAN, 1x GPS/GLONASS |
| Cellular Frequency Range: | 617 – 6000 MHz |
| Cellular Peak Gain (617-960 MHz): | 0.5 dBi |
| Cellular Peak Gain (1427-1517 MHz): | 3.5 dBi |
| Cellular Peak Gain (1710-2700 MHz): | 3.5 dBi |
| Cellular Peak Gain (3400-6000 MHz): | 5.5 dBi |
| Cellular Polarization: | Linear Vertical |
| WLAN Frequency Range: | 2.4 – 2.5 GHz & 5.0 – 7.2 GHz |
| WLAN Peak Gain (2.4 GHz): | 3.5 dBi |
| WLAN Peak Gain (5.0-7.2 GHz): | 7.0 dBi |
| GPS/GLONASS Frequency: | 1575.42 MHz (GPS), 1600 MHz (GLONASS) |
| GPS LNA Gain: | 21 dBi (active) |
| GPS Voltage: | 2.7 - 3.3 V DC |
| Radiation Pattern: | Omnidirectional |
| Cable Type (Cellular/WLAN): | HDF-195 |
| Cable Type (GPS): | RTK-031 |
| Cable Length: | 2 Meters (all elements) |
| Connector Type (Cellular): | 4x SMA (M) |
| Connector Type (WLAN): | 4x RP-SMA (M) |
| Connector Type (GPS): | 1x SMA (M) |
| Housing Material (Radome): | UV-stable ASA (Halogen-free) |
| Color: | Black |
| Dimensions: | 280 x 165 x 55 mm |
| Operating Temperature: | -40°C to +80°C |
| IP Rating: | IP69K |
| Impact Resistance: | IK10 |
| Mounting Options: | Threaded Studs, Mast/Wall Mount, Adhesive Pad, Ground Plane Independent |
| Certifications: | CE, RoHS, E-Mark (E1), UL 94-HB, EN 13823, MIL-STD 810G |
| Number of Ports: | 9 |
| Product Weight: | Approx. 1.6 kg |
Scope of Delivery
| 1 x Poynting MIMO-4-19 Antenna (Black) with 9 cables |
| 1 x Threaded Stud Set (short & long) |
| 1 x Adhesive Pad (Double-sided) |
| 1 x Mast Mount & Clamps |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What is the Poynting MIMO-4-19 antenna primarily used for?
You primarily use the Poynting MIMO-4-19 for transport and automotive applications, marine, M2M (Machine-to-Machine) and IoT (Internet of Things) systems when you need powerful, multi-frequency connectivity in a robust housing.
Which frequency bands does the Poynting MIMO-4-19 cover?
The antenna covers an ultra-wide frequency band for mobile communications from 617 to 6000 MHz (including 4G LTE and 5G), as well as Wi-Fi bands from 2.4 - 2.5 GHz and 5.0 - 7.2 GHz.
Is the Poynting MIMO-4-19 suitable for use on boats or ships?
Yes, the Poynting MIMO-4-19 is ideally suited for your use in maritime environments due to its robust, waterproof design with IP69K rating and its radiation characteristics specifically optimized for transport and marine applications.
Does the MIMO-4-19 antenna support 5G mobile communication?
Yes, the antenna is designed for future 5G mobile communication technologies up to 6 GHz and offers you ultra-wide band coverage from 617 to 6000 MHz, covering both current 4G/LTE and upcoming 5G bands.
What mounting options does the Poynting MIMO-4-19 offer?
The antenna offers you various mounting options, including threaded spigots (for clamping thicknesses up to 225 mm), a pole/wall mount, and an adhesive pad for surface mounting. It is also ground-plane independent, which gives you flexibility during installation.
What Wi-Fi capabilities does the Poynting MIMO-4-19 offer?
The MIMO-4-19 features four dual-band Wi-Fi antennas, enabling simultaneous operation in the 2.4 GHz and 5 to 7.2 GHz ranges for 4x4 MIMO capability, thus providing high wireless performance.
