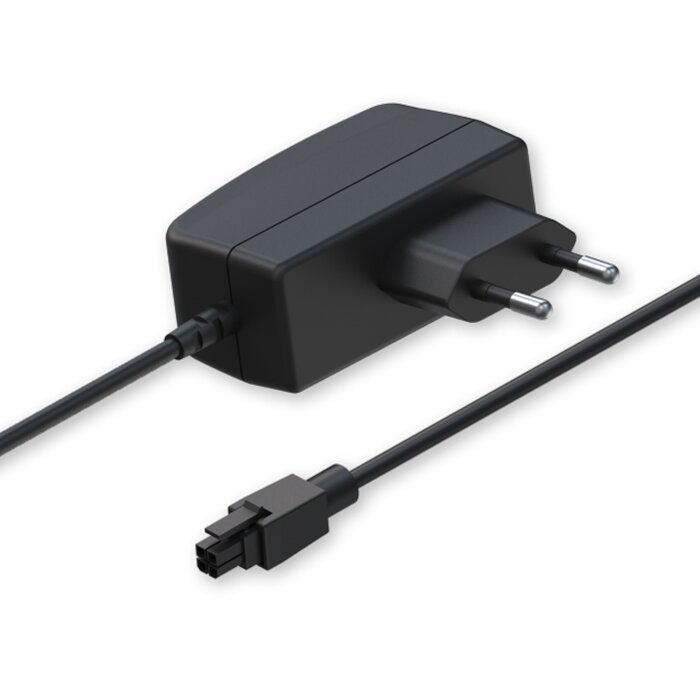

Stable Power for Demanding Tasks: The Original Power Supply
Your professional Network equipment deserves an equally professional Power Supply. The Teltonika PR3PXEU3 is no ordinary Power Supply – it is the power source developed and approved by Teltonika for a variety of their powerful Teltonika 4G / 5G Routers. With a constant output power of 18 watts, it ensures that your router operates stably and reliably at all times, even under maximum utilization, such as high data traffic or the use of all interfaces. Rely on the original to secure the longevity and performance of your investment.
The 4-Pin Industrial Connector: Built for Maximum Operational Reliability
The decisive difference to standard power supplies lies in the detail: the 4-pin industrial connector. This connection was specially designed for professional use. It locks firmly into the socket of your Teltonika device, preventing accidental movement or vibration from interrupting the power supply. At the same time, the well-thought-out pin assignment ensures a clean separation of power and ground lines, which prevents potentially harmful ground loops and protects the signal quality of your Network.
Universally Applicable in the EU: Wide Range Input & Efficiency
Thanks to the wide input range of 90 to 264 VAC and a frequency tolerance of 47 to 63 Hz, the PR3PXEU3 is extremely flexible for use with various power grids within Europe. The built-in Euro plug (Type C) fits all common sockets in the EU. Furthermore, the power supply meets the strict Level VI energy efficiency standard. This means it operates very efficiently not only during operation but also consumes minimal power in idle mode – good for the environment and your operating costs.
Full Compatibility: The Safe Choice for Your Teltonika Fleet
This power supply is the official power source for a wide range of Teltonika hardware. It is perfectly matched to models of the RUT series (such as RUT360), the entire RUTX family (RUTX08, RUTX09, RUTX10, RUTX11, RUTX50, RUTXR1) as well as devices of the TRB, TSW, and TCR series. If you are looking for a suitable power supply for your Teltonika device, the PR3PXEU3 is the first and safest choice. It belongs to the category PoE Injectors / Power Supplies and is an essential Teltonika Accessories.
Strengths & Notes at a Glance
- Pro: As original Teltonika accessory, it guarantees 100% compatibility and electrical safety.
- Pro: The robust 4-pin industrial connector provides an extremely secure hold and prevents accidental disconnection.
- Pro: Effectively prevents ground loops, thereby increasing the stability of the connected device.
- Pro: The stable 18W power output reliably supplies even demanding routers under full load.
- Note: The proprietary 4-pin connector is not compatible with devices that use standard barrel connectors.
- Note: The version with a Euro plug (Type C) is unsuitable for direct use outside the EU (adapter required).
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | PR3PXEU3 |
| EAN: | 4779051840601 |
| Product Type: | Power Supply Unit (PSU) |
| Power Plug Type: | EU (Type C), Euro plug |
| Rated Input Voltage: | 100 – 240 VAC |
| Absolute Input Voltage Range: | 90 – 264 VAC |
| Rated Input Frequency: | 50 / 60 Hz |
| Absolute Input Frequency Range: | 47 – 63 Hz |
| Input Current (max.): | 0.6 A |
| Inrush Current (max.): | 60 A |
| Output Voltage (DC): | 12 VDC |
| Max. Output Voltage Deviation: | 11.4 – 12.6 VDC |
| Output Current (max.): | 1.5 A |
| Output Power: | 18 W |
| Output Connector: | 4-Pin Industrial Connector |
| Connector Pitch: | 3 mm |
| Short Circuit Protection: | Yes, present |
| Input Protection: | Fuse |
| Dielectric Withstand Voltage (HIPOT): | 4000 VDC (Primary to Secondary) |
| MTBF (Mean Time Between Failures): | 30,000 hours |
| Energy Efficiency: | Level VI |
| Safety Standards: | IEC 62368-1:2014, EN 62368-1:2014+A11:2017 |
| EMC Standards: | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019 |
| Dimensions (Power Supply Housing): | 55.7 x 35.9 x 27.0 mm |
| Cable Length: | 2.0 m |
| Weight: | 89.8 g |
| Compatibility: | RUT360, RUTX08, RUTX09, RUTX10, RUTX11, RUTX50, RUTXR1, TRB-Series, TSW-Series, TCR-Series |
Scope of Delivery
| 1 x Teltonika PR3PXEU3 Power Supply (12V/1.5A) with 4-Pin Connector |
Frequently Asked Questions (FAQ)
Which Teltonika routers is the PR3PXEU3 power supply suitable for?
The power supply is officially compatible with a variety of Teltonika devices, including models from the RUT series (e.g., RUT360), the entire RUTX series (RUTX08, RUTX09, RUTX10, RUTX11, RUTX50, RUTXR1), as well as devices from the TRB, TSW, and TCR series.
Why does this power supply have a 4-pin connector instead of a normal round connector?
The 4-pin industrial connector was developed for higher operational safety. It ensures a firm, locked connection that cannot accidentally come loose, and cleanly separates power and ground lines to prevent interference from ground loops – a crucial advantage in professional and industrial applications.
Can I also use this power supply for devices from other manufacturers?
No, this is not recommended. Due to the proprietary 4-pin connector and the electrical values precisely matched to Teltonika devices, the power supply is not intended for use with other brands' devices and is physically incompatible.
What does the energy efficiency class "Level VI" mean?
Level VI is an international standard for the energy efficiency of external power supplies. It places high demands on operational efficiency and mandates very low power consumption in idle mode (when no device is connected). This makes the power supply more environmentally friendly and cost-saving in operation.
Can the power supply cable be extended?
Although technically possible, extending the 12V DC cable is not recommended. Any extension increases electrical resistance, which can lead to a voltage drop. This could affect the stability of the connected router, especially under high load.
Where can I find the official datasheet for the Teltonika PR3PXEU3?
The official datasheet can be downloaded directly from the Teltonika Networks website. It contains all detailed technical specifications, dimensions, and product certifications.
