No More Downtime: Your Reliable UPS for Teltonika Routers

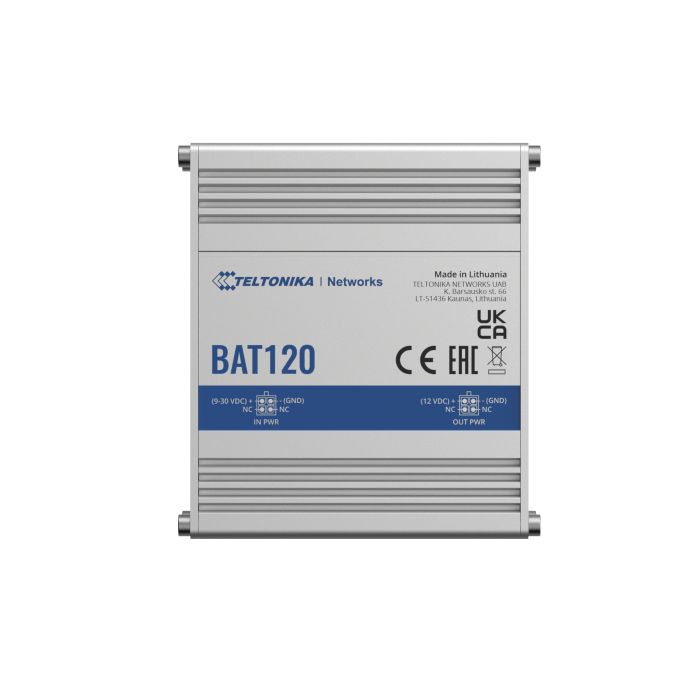

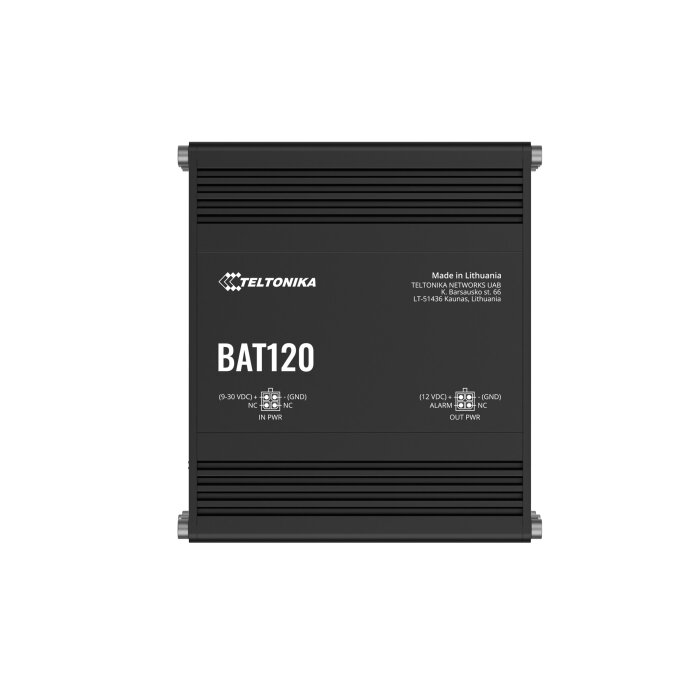

A power outage can bring entire operations to a standstill in critical applications. The Teltonika BAT120 was developed precisely for this scenario. It is a compact but powerful uninterruptible Power Supply (UPS) specifically designed for Network devices such as the Teltonika 4G / 5G Routers of the RUT and RUTX series. If the power fails, the BAT120 immediately steps in and supplies your device with stable 12 VDC for up to 6 hours, so your data connection and processes continue without interruption.
Built to Last: Robustness and Smart Features
The robust aluminum housing not only protects the high-quality electronics and the two Li-Ion batteries but also makes the BAT120 suitable for use in control cabinets, vehicles, or production environments. Thanks to the well-thought-out Mounting Systems, it can be easily mounted on a DIN rail or attached to a wall. The highlight is the digital alarm output: it reports the power outage to the router, which can then send an SMS or email. This way, you always know immediately what is happening on site – a perfect DIN rail uninterruptible Power Supply for proactive management.
Maximum Security and Flexibility
The BAT120 not only protects against power outages but also your connected hardware. Integrated protection circuits against reverse polarity, overvoltage at the input, and overcurrent at the output prevent damage to your expensive Network equipment. The wide input voltage range of 9 to 30 volts DC ensures maximum compatibility with various power supplies and power sources, enabling use in a wide range of applications, including the automotive sector.
Plug-and-Play: Easy Integration Without Software
You can save yourself complicated configurations. The BAT120 is a pure plug-and-play device. Simply connect it between the Power Supply and the router – done. An on/off switch and clear status LEDs provide information about the charge status and operating status at all times. The four power LEDs show you the remaining battery capacity in 25% increments, so you always have a complete overview, without any software or cumbersome user interface.
Strengths & Notes at a Glance
- Pro: The robust aluminum housing and DIN rail mounting are ideal for industrial applications.
- Pro: The dedicated alarm output enables proactive notification in case of power failure via the router.
- Pro: Comprehensive protection circuits reliably secure the UPS and the connected device.
- Pro: The wide input voltage range of 9-30V allows for very flexible use.
- Note: Compatibility is primarily limited to Teltonika devices due to the proprietary 4-pin connector.
- Note: The operating temperature range of 0 °C to 45 °C excludes use under extreme conditions.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | BAT120 |
| EAN: | 4779027312910 |
| Order-Code: | BAT120000000 |
| Device Type: | Uninterruptible Power Supply (UPS) |
| Battery Type: | 2x 18650 Lithium-Ion (Li-Ion) Cells |
| Battery Capacity: | 2300 mAh / 17 Wh |
| Emergency Power Runtime: | Up to 6 hours (depending on consumer) |
| Input Voltage: | 9 – 30 VDC |
| Output Voltage (Mains Operation): | 9 – 30 VDC (corresponds to input voltage) |
| Output Voltage (Battery Operation): | 12 VDC |
| Max. Output Power (Battery): | 22 W |
| Max. Output Current (Battery): | 1.8 A |
| Max. Power Consumption (Charging): | 4 W |
| Max. Charging Current: | 300 mA |
| Power Connectors: | 2 x 4-Pin industrial DC socket (1x input, 1x output) |
| Alarm Output: | 1 x Active HIGH Digital Output (max. 12 V, 2.5 mA) |
| Controls: | On/Off Slide Switch |
| Status LEDs: | 1x IN PWR, 1x OUT PWR, 4x Power Status (25% increments) |
| Input Protection: | Reverse Polarity Protection, Overvoltage Protection |
| Output Protection: | 3A Overcurrent Protection |
| Housing Material: | Aluminum |
| Dimensions (W x H x D): | 100 x 30 x 85 mm |
| Weight: | 315 g |
| Mounting Options: | DIN Rail, Surface Mounting |
| Operating Temperature: | 0 °C to 45 °C |
| Certifications: | CE, UKCA, EAC, WEEE |
Scope of Delivery
| 1 x Teltonika BAT120 UPS |
| 1 x Quick Start Guide (QSG) |
Frequently Asked Questions (FAQ)
Which devices are compatible with the Teltonika BAT120?
How long does it take to fully charge the BAT120?
A full charge of the 2300 mAh battery takes theoretically over 7 hours with a maximum charging current of 300 mA. The actual charging time may vary depending on the battery condition and environmental factors.
Can I replace the batteries in the BAT120 myself?
No, the manufacturer does not intend for the internal 18650 Li-Ion cells to be replaced. Opening the casing will void the warranty.
What do the flashing LEDs on the BAT120 mean?
The LEDs indicate the operating status. If all power LEDs flash rapidly, overheating is present. If the OUT PWR LED flashes, it indicates a short circuit at the output. A sequential illumination of the power LEDs indicates the active charging process.
Does the BAT120 require special software for configuration?
No, the BAT120 is a pure plug-and-play hardware device without its own software or configuration interface. The configuration of power outage alarm notifications is done directly in the connected Teltonika Router.
How is the BAT120 mounted?
The UPS can be mounted flexibly. It can be placed on a flat surface, attached to a wall, or installed on a standard DIN rail in a control cabinet.
