Your Key to Uncompromising 5G & 4G Connectivity
No more dead zones and slow connections where you least expect them! The Poynting XPOL-1-5G v2 is the ultimate mobile Antenna, specifically designed for you to ensure a stable and fast internet connection even in the most demanding environments. Whether you are in a densely built-up city center where signals are reflected by buildings, or you are traveling with your motorhome or houseboat – this omnidirectional Antenna captures radio waves from all directions. It is the perfect outdoor Antenna when a clear line of sight to the cell tower is not always possible and you need to rely on consistent performance.
Maximum Performance through 4x4 MIMO and Broadband Coverage
Do you want to utilize the full speed of your mobile connection? Then the Poynting XPOL-1-5G v2 with its advanced 4x4 MIMO antenna is exactly what you need. Modern 4G / 5G routers are often designed for four Antennas, and with four integrated antenna elements in one housing, you unleash the full potential of your device. The antenna is not only '5G Ready' but also backward compatible with 2G, 3G, and 4G 4G. It covers an extremely wide frequency range from 617 MHz to 3800 MHz, including the important 3.5GHz 5G/CBRS bands, thus providing you with a future-proof broadband antenna for excellent 5G connectivity and 4G 4G reception improvement. The included 5-meter Antenna Cables with SMA connectors ensure flexible connectivity.
Reliable Connectivity for Every Challenge
The Poynting XPOL-1-5G v2 is your robust partner for a variety of application scenarios. Imagine you need a reliable internet connection at a temporary construction site or an event – the weatherproof antenna is quickly installed and provides you with instant Fixed Wireless Access (FWA). It is also the ideal choice for telemetry and IoT applications in harsh environments, such as monitoring energy or water infrastructures, thanks to its resistance to extreme temperatures (-40°C to +70°C), dust, and water (IP65 weatherproof).
Robustness Meets Easy Installation

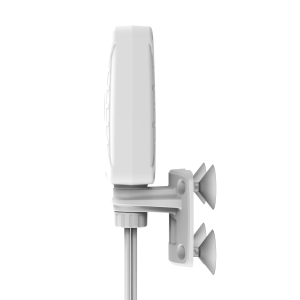

Poynting has thought of everything with the XPOL-1-5G v2 to make installation as easy as possible for you. The housing made of UV-stable SAN Marine ASA plastic is not only brilliant white and aesthetic but also extremely resistant to wind (up to 160 km/h) and vandalism (IK10). You can permanently mount the antenna on a wall (wall-mount antenna) or attach it to a pole (pole-mount antenna). For temporary deployments or if you simply don't want a permanent installation, you can even easily attach it to a window with the included suction cups. All antenna mounting Accessories are included, so you're ready to go immediately.
Strengths & Notes at a Glance
- Pro: Broadband compatibility and future-proofing for 2G, 3G, 4G, 4G, and all important 5G bands (617 MHz – 3800 MHz).
- Pro: Extremely robust and weatherproof design (IP65, IK10) for reliable use under the harshest conditions from -40°C to +70°C.
- Pro: Optimal 4x4 MIMO technology for higher data throughputs and improved signal quality with compatible routers.
- Pro: Versatile and easy mounting options (wall, pole, window) for maximum flexibility.
- Pro: Excellent for urban environments and mobile applications thanks to its omnidirectional radiation pattern.
- Note: Lower peak gain (up to 4 dBi) compared to the newer V3 version (up to 7 dBi), which can make a difference in very rural areas with extremely weak signals.
- Note: The actual performance improvement depends heavily on specific environmental conditions, proximity to cell towers, and the frequency bands used.
Specifications & Features
| Manufacturer: | Poynting Antennas (Pty) Ltd |
| Model: | XPOL-1-5G v2 (A-XPOL-0001-V2-41) |
| Antenna Type: | Cross-Polarized (X-Polarized), Omnidirectional |
| MIMO Configuration: | 4x4 MIMO |
| Frequency Band 1: | 617 – 960 MHz |
| Frequency Band 2: | 1427 – 1517 MHz |
| Frequency Band 3: | 1700 – 2700 MHz |
| Frequency Band 4: | 2300 – 2700 MHz |
| Frequency Band 5: | 3400 – 3800 MHz (5G/CBRS) |
| Peak Gain: | Up to 4 dBi |
| VSWR: | ≤ 2.5:1 (over 90% of bands) |
| Input Impedance: | 50 Ohm (Nominal) |
| Polarization: | Cross-Polarized (Vertical & Horizontal) |
| Cable Type: | 4x HDF195 Coaxial Cable |
| Cable Length: | 5 Meters |
| Connector Type: | 4x SMA (male), gold-plated |
| Housing Material (Radome): | UV-stable SAN Marine ASA plastic |
| Housing Color: | Brilliant White (Pantone P 179-1 C) |
| Protection Class (IP-Rating): | IP65 |
| Impact Resistance: | IK10 |
| Wind Resistance: | Up to 160 km/h |
| Operating Temperature Range: | -40°C to +70°C |
| Product Dimensions: | 247 mm x 157 mm x 88 mm |
| Mounting Options: | Wall Mount, Pole Mount, Window Mount (with Suction Cups) |
| Grounding: | DC-grounded |
| Certifications: | RoHS 2011/65/EU, ISO 9001:2015, CE, EN, CSA |
Scope of Delivery
| 1 x Poynting XPOL-1-5G v2 Antenna (A-XPOL-0001-V2-41) |
| 1 x Universal Bracket (Wall/Pole/Window) |
| 1 x 4-way Cable Harness HDF195, 5m long (permanently mounted) |
| 4 x Suction Cups for Window Mounting |
Frequently Asked Questions (FAQ)
What does 4x4 MIMO mean for the Poynting XPOL-1-5G v2 antenna?
4x4 MIMO (Multiple Input, Multiple Output) means that your antenna has four separate antenna elements integrated, which can simultaneously send and receive four data streams. This leads to higher data rates, improved signal quality, and a more stable connection for you, especially when used with compatible 4x4 MIMO routers.
Is the Poynting XPOL-1-5G v2 suitable for 5G?
Yes, your Poynting XPOL-1-5G v2 is '5G Ready' and designed for 5G applications. It covers the relevant 5G frequency bands from 617 MHz to 3800 MHz, including the new 3.5GHz 5G/CBRS bands, and is backward compatible with 2G, 3G, and 4G LTE, keeping you flexible.
Can the Poynting XPOL-1-5G v2 be used both indoors and outdoors?
Yes, with its IP65 certification and robust construction, your antenna is primarily designed for outdoor use. However, you can also mount it on a window with the included suction cups and use it as a powerful indoor antenna.
What is the difference between the XPOL-1-5G v2 and the XPOL-1-5G+ (V3)?
The XPOL-1-5G+ (V3) is the newer, third generation of your antenna. It offers extended frequency coverage (up to 6000 MHz) and higher peak gain (up to 7 dBi) compared to your V2 (up to 4 dBi). Your V2, due to its lower gain and better pattern control, is often better suited for urban applications, while the V3 with its higher gain offers advantages for you in rural and suburban areas.
What type of cables and connectors does the Poynting XPOL-1-5G v2 use?
Your antenna is typically supplied with 5 meter (16.4 feet) long HDF195 coaxial cables, equipped with SMA (male) connectors. Adapters for TS9 or U.fl/MHF are often available as optional Accessories, should you need them.
How is the Poynting XPOL-1-5G v2 mounted?
Your antenna offers versatile mounting options. You can attach it to a wall or a pole (pole mount) using the included brackets. For indoor use, suction cups are often included to easily mount it on a window.
