Your Gateway to the 5G Era for Industry
Are you ready for the next generation of connectivity? The Teltonika TRB500 is your ideal partner to fully leverage the benefits of 5G. This industrial 5G Gateway was specifically developed for demanding applications where speed, reliability, and low latency are crucial. Whether you want to connect machines, transmit real-time data, or monitor critical infrastructures – with the TRB500, you are perfectly equipped. It is the perfect solution for modern IT_Network infrastructures.
Maximum Performance, Minimum Complexity
The TRB500 impresses not only with its 5G capability but also with its ease of use. Thanks to the integrated Gigabit Ethernet port, you can connect your devices quickly and easily. The robust design and extended temperature range make it the perfect companion for factory floors, construction sites, or other harsh environments. You benefit from a stable connection, even when conventional WiFi reaches its limits.
Reliability You Can Count On
When it comes to industrial applications, fail-safety is crucial. The Teltonika TRB500 offers exactly that. It supports Dual-SIM with auto-failover, meaning that if the primary SIM card fails, it automatically switches to the second one. This keeps your connection always active. The integrated security features protect your data and your Network from unauthorized access. Rely on a device designed for continuous operation.
Flexibility for Every Application
The compact design of the TRB500 allows for flexible installation, even in confined spaces. It is ideal for M2M and IoT applications, Smart City projects, remote office solutions, or as a backup connection for your DSL / VDSL Routers. With its wide range of supported frequency bands, it is a globally deployable Teltonika 4G / 5G Routers.
Strengths & Notes at a Glance
- Pro: Ultra-fast 5G connectivity for demanding applications.
- Pro: Robust design and extended temperature range for industrial environments.
- Pro: Gigabit Ethernet port for fast and stable wired connections.
- Pro: Dual-SIM with auto-failover for maximum reliability.
- Pro: Compact design for flexible installation.
- Note: External Antennas (not included) may be required for optimal 5G performance.
- Note: A SIM card is required for operation and is not included.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | TRB500 |
| Product Type: | Industrial 5G Gateway |
| Mobile Technology: | 5G (SA/NSA), 4G (4G-FDD/TDD), 3G |

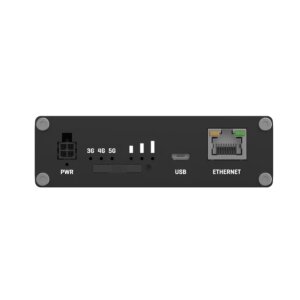

| Ethernet: | 1 x Gigabit Ethernet Port (RJ45) |
| SIM Slots: | 2 (Dual-SIM) |

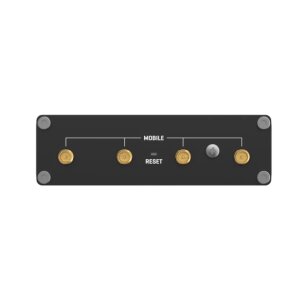

| Antenna Connectors: | 4 x SMA (for 5G), 1 x SMA (for GNSS) |
| GNSS: | GPS, GLONASS, BeiDou, Galileo |
| Operating Temperature: | -40 °C to 75 °C |
| Housing Material: | Aluminum |
| Power Supply: | 9-30 VDC |
| Dimensions (WxHxD): | 75 x 27 x 65 mm |
| Weight: | 0.22 kg |
| Mounting: | DIN rail (optional), Wall mount |
| Management: | RMS (Remote Management System), WebUI, CLI |
| Security: | Firewall, VPN (OpenVPN, IPsec, L2TP, PPTP) |
| Certifications: | CE, RED, RoHS, WEEE |
Scope of Delivery
| 1 x Teltonika TRB500 Industrial 5G Gateway |
| 1 x 1.5 m Ethernet Cable |
| 1 x QSG (Quick Start Guide) |
| 1 x RMS Flyer |
| 1 x SIM Needle |
Frequently Asked Questions (FAQ)
What is the Teltonika Networks TRB500?
The Teltonika Networks TRB500 is an industrial 5G gateway designed for high-speed connectivity in demanding environments.
What are the advantages of an industrial 5G gateway like the TRB500?
An industrial 5G gateway like the TRB500 offers extremely high bandwidths, low latencies, and robust connectivity, ideal for critical M2M and IoT applications.
Does the Teltonika TRB500 support Gigabit Ethernet?
Yes, the Teltonika TRB500 is equipped with Gigabit Ethernet ports to ensure a fast and reliable wired connection.
Which applications is the Teltonika TRB500 best suited for?
The TRB500 is excellently suited for applications such as industrial automation, smart city infrastructure, video surveillance, remote maintenance, and transport solutions.
How does the TRB500 differ from other industrial gateways?
The TRB500 stands out due to its 5G connectivity, high performance, robust design, and support for Gigabit Ethernet, making it a future-proof solution.
What security features does the Teltonika TRB500 offer?
The Teltonika TRB500 offers comprehensive security features such as VPN (OpenVPN, IPsec, L2TP, PPTP), firewall, and various authentication protocols to protect your data.
