Your Internet Turbo for Remote Locations
Do you know the feeling? Your phone barely has reception, but you urgently need a stable internet connection for your holiday home, allotment garden, or construction site. This is exactly where the QuWireless QuMax A240M comes in. It is not just a high-performance antenna, but a clever all-in-one system that securely houses your Teltonika RUT241 router (or other RUT2xx models) in an IP67 outdoor enclosure. This way, you free your router from the basement or steel cabinet and place it directly where the mobile signal is strongest. The result? A reliable connection for all your applications, even when traditional DSL connections are not available.
Robust Connectivity for Industry and Smart Living
The QuWireless QuMax A240M is the ideal solution to massively improve connectivity in rural or remote areas. Imagine you have a home office in the countryside and need a stable connection for video conferences or smart home applications. Or you are looking for a robust Network solution for industrial environments and IoT applications, where protecting the router from extreme weather conditions is essential. The IP67 housing reliably protects your router from dust and water, while the mobile antenna ensures maximum signal strength for critical outdoor processes. Whether for surveillance, data transmission, or simple browsing – this outdoor antenna delivers the necessary performance.
Smart Technology for Maximum Range and Easy Installation

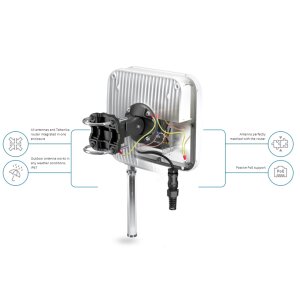

The secret of the QuMax A240M lies in its intelligent design: A powerful, directional 4G directional antenna specifically captures signals from distant mobile base stations and filters out interference. You simply point it towards the nearest transmission mast to achieve the best possible performance. At the same time, an integrated WiFi Omni Antenna ensures that you have comfortable WiFi coverage in the immediate vicinity – for example, on your terrace or directly at the installation site. And the power supply? That's incredibly simple via Passive PoE (Power over Ethernet). You simply run a LAN cable from the building to the antenna. Via a passive PoE Injectors / Power Supplies (24V), you send power upwards. Your router is powered and simultaneously delivers data down into your Network. This way, you save on additional power cables and outdoor sockets!
Your Questions, Our Answers about the QuMax A240M
Do you have questions about the QuWireless QuMax A240M? We have the answers:
-
1. Which Teltonika router can I install in the QuMax A240M housing?
Answer: The QuMax A240M housing is compatible with various Teltonika RUT2xx routers, including the RUT241, RUT240, RUT230, RUT200, RUT260, and RUT281. -
2. Is the router included in the scope of delivery of the QuMax A240M?
Answer: No, the Teltonika router is not included in the scope of delivery of the QuMax A240M and must be purchased separately. The QuMax A240M is an antenna housing with integrated Antennas and a space for router installation. -
3. What protection class does the QuMax A240M housing have?
Answer: The QuMax A240M housing has protection class IP67, which means it is completely dustproof and protected against temporary immersion in water, making it ideal for outdoor use. -
4. Does the QuMax A240M support Power over Ethernet (PoE)?
Answer: Yes, the QuMax A240M supports Passive PoE, which simplifies installation as both power and data can be transmitted over a single LAN cable. -
5. Which frequency bands are supported by the 4G antenna of the QuMax A240M?
Answer: The 4G antenna of the QuMax A240M supports a wide range of frequency bands, including 694-960 MHz, 1.7-2.2 GHz, and 2.2-2.7 GHz, with corresponding gains of 4 dBi, 5 dBi, and 6 dBi. -
6. Is the WiFi antenna in the QuMax A240M omnidirectional or directional?
Answer: The integrated WiFi antenna in the QuMax A240M is omnidirectional, while the 4G antenna is directional.
Strengths & Notes at a Glance
- Pro: Excellent signal amplification through the most powerful directional 4G antenna in the QuWireless range, optimized for long-range connections and areas with poor coverage.
- Pro: Robust outdoor construction (IP67) reliably protects the integrated router and Antennas from dust, water, and extreme temperatures from -40°C to 75°C, for reliable operation under demanding conditions.
- Pro: All-in-one solution with Passive PoE integrates 4G and WiFi Antennas as well as an installation space for the Teltonika RUT2xx router in a single housing and simplifies installation with just one cable for power and data.
- Note: The compatible Teltonika RUT2xx router is not included in the scope of delivery and must be purchased separately, which incurs additional costs.
- Note: The directional nature of the 4G antenna requires precise alignment with the mobile base station for optimal performance, which can make installation somewhat more complex than with omnidirectional antennas.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuMax A240M |
| Product Type: | All-in-One 4G Directional Antenna |
| Suitable for Routers: | Teltonika RUT240, RUT241, RUT200, RUT230, RUT260, RUT281 |
| Material: | ABS (UV-resistant, grey) |
| Protection Class: | IP67 |
| Operating Temperature: | -40°C to +75°C |
| Dimensions (External): | 272 x 276 x 96 mm |
| Weight: | approx. 1.8 kg |
| 4G Frequency Range 1 (Low Band): | 694 - 960 MHz | Gain: 2 dBi |
| 4G Frequency Range 2 (Mid Band): | 1700 - 2200 MHz | Gain: 2 dBi |
| 4G Frequency Range 3 (High Band): | 2200 - 2700 MHz | Gain: 4 dBi |
| 4G VSWR: | < 1.60 (max < 2.00) |
| 4G Beamwidth: | 70° Horizontal / 70° Vertical |
| 4G Polarization: | Linear |

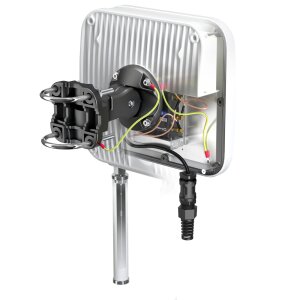

| 4G Configuration: | 2x2 MIMO (2x internal U.FL Pigtails to the router) |
| WiFi Frequency: | 2.400 - 2.483 MHz |
| WiFi Gain: | 6 dBi |
| WiFi VSWR: | < 1.70 |
| WiFi Beam Angle: | 360° Horizontal (Omni) |
| WiFi Configuration: | 1x1 SISO (1x internal U.FL Pigtail to the router) |
| Power Supply: | Passive PoE (24V recommended) via LAN port |

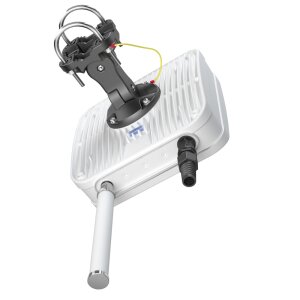

| Cable Gland: | Weatherproof RJ45 pass-through |
| Mounting: | Incl. bracket for mast (up to approx. 50mm) or wall |
Scope of Delivery
| 1 x QuWireless QuMax A240M Outdoor Antenna |
| 1 x Bracket for Mast & Wall |
Frequently Asked Questions (FAQ)
Which Teltonika router can I install in the QuMax A240M enclosure?
Your QuMax A240M enclosure is compatible with various Teltonika RUT2xx routers, including the RUT241, RUT240, RUT230, RUT200, RUT260, and RUT281.
Is the router included with the QuMax A240M?
No, the Teltonika router is not included with your QuMax A240M and must be purchased separately. The QuMax A240M is an antenna enclosure with integrated antennas and a space for installing your router.
What is the protection class of the QuMax A240M enclosure?
Your QuMax A240M enclosure has an IP67 protection class, which means it is completely dustproof and protected against temporary immersion in water, making it ideal for your outdoor use.
Does the QuMax A240M support Power over Ethernet (PoE)?
Yes, your QuMax A240M supports Passive PoE, which simplifies your installation as both power and data can be transmitted over a single LAN cable.
Which frequency bands are supported by the LTE antenna of the QuMax A240M?
The LTE antenna of your QuMax A240M supports a wide range of frequency bands, including 694-960 MHz, 1.7-2.2 GHz, and 2.2-2.7 GHz, with corresponding gains of 4 dBi, 5 dBi, and 6 dBi.
Is the Wi-Fi antenna in the QuMax A240M omnidirectional or directional?
The integrated Wi-Fi antenna in your QuMax A240M is omnidirectional, while the LTE antenna is directional.
