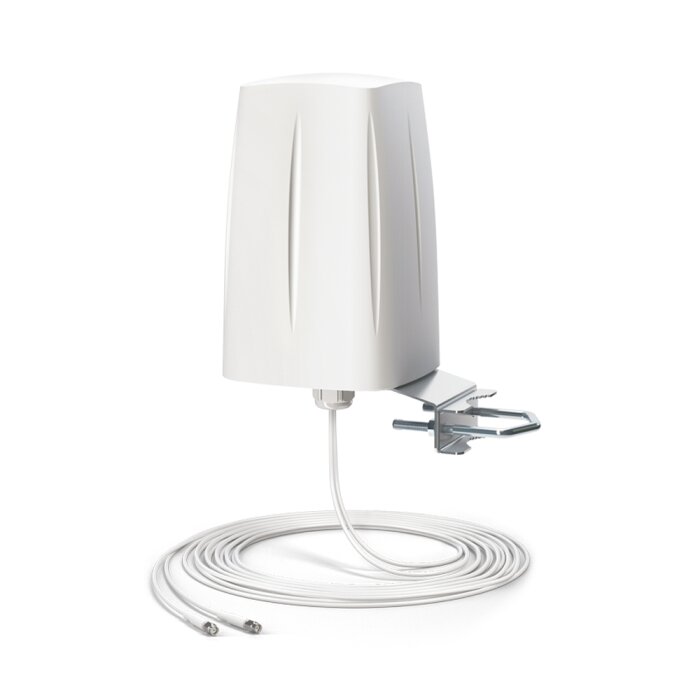

QuOmni AO5G2U omnidirectional MIMO 2x2 high gain antenna is predicted for 4G and 5G mainly, but is compatible with 3G and 2G as well. It is primary designed for 5G/4G/3G/2G devices which require high efficiency connections. The antenna covers many 4G bands including the new extended 4G Band 71 with frequency range from 617 to 3800MHz.
The enclosure of the QuOmni antenna is absolutely weatherproof (IP67) and is specially designed for outdoor use. This allows you to use the QuOmni antenna even in extreme weather conditions. That antenna is predicted to be installed on the buildings (on the pole or on the wall).
The antenna has two 5m LMR195 antenna cables with SMA male connectors. This allows the antenna to be operated directly on all common 4G or 5G routers with an external antenna connection.
Technical Data:
| Manufacturer / Model: | QuWireless / QuOmni AO5G2U |
| Type of Antenna: | Omni Antenna |
| Frequency: | 694 - 966MHz 1710 - 2200MHz 2200 - 2690MHz 3300 - 3800 MHz |
| Gain: | 3dBi 3.5dBi 3.5dBi 4dBi |
| VSWR: | max. 2.0 |
| Polarisation: | Vertical |
| Beamwidth: | 360° Horizontal 35° Vertical |
| Impedance: | 50 Ohm |
| Material: | ABS, aluminum, PTFE, Fiberglass |
| Appliance: | Indoor / Outdoor (IP67 Rated) |
| Temperature Range (Operating): | -40° to 75° C |
| Dimensions: | 16 x 16 x 24 cm |
| Weight: | 1.5 kg |
Scope of delivery:
| 1 x QuWireless QuOmni AO5G2U Antenna |
| 1 x Mounting Equipment |
