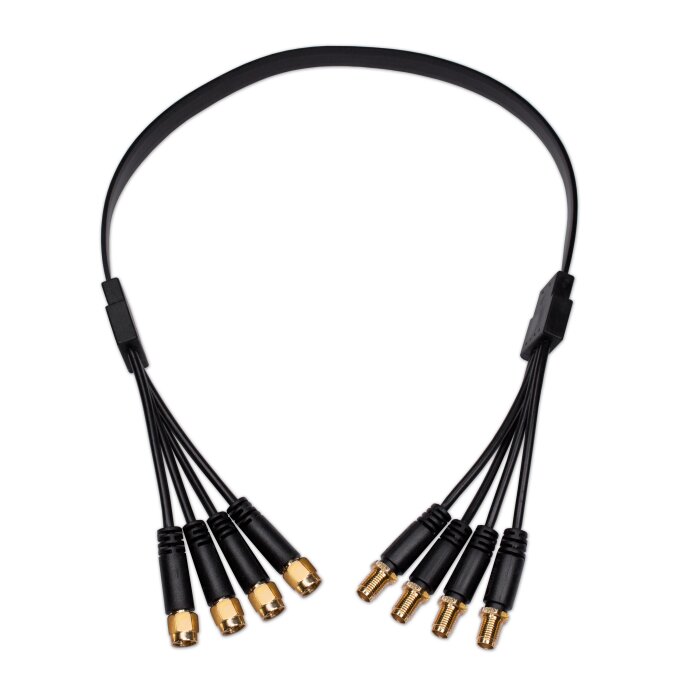

The JARFT J2250-RPSMA 4x4 MIMO WLAN window feed-through provides an excellent solution for connecting a 4x4 MIMO WLAN outdoor antenna to your indoor WLAN router or access point without the need for drilling.
At 50 cm long and featuring an ultra-thin design, this window cable can easily be placed through or laid inside a window frame without causing any damage to the frame, window, or locking mechanism.

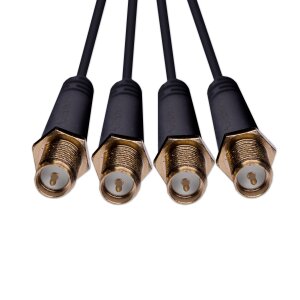

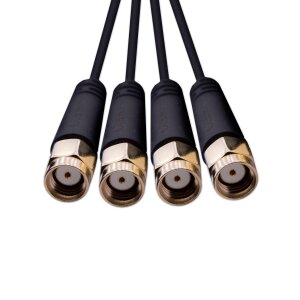

Equipped with four RP-SMA plugs and four RP-SMA sockets, the feed-through ensures a stable and low-loss connection between your 4x4 MIMO WLAN antenna's cable and the antenna cable, or even directly to the antenna ports of your WLAN router or access point. This RP-SMA WLAN window feed-through is also available in a single and 2x2 MIMO version in our range. Additionally, it is compatible for use with LTE/5G antennas and corresponding routers, also available in our shop.
Technical Data:
| Manufacturer: | JARFT |
| Model: | J4450-SMA |
| Product: | Coaxial Window Feedthrough |
| Cable Type: | Micro Coaxial Cable 1.13 |
| Impedance: | 50 Ohms |
| Attenuation: | ~0.8dB @ 1GHz ~1.16dB @ 2GHz 1.44dB @ 3GHz 1.68dB @ 4GHz 1.88dB @ 5GHz 2.08dB @ 6GHz |
| Length: | 50cm |
| Width: | 1.0 cm |
| Height: | 1.5 mm |
| Color: | Black |
| Connectors: | 4 x SMA Plug to 4 x SMA Socket |
Scope of Delivery:
| 1 x Window feed-through for 4x4 MIMO WiFi Antenna - 50cm, RP-SMA Male / Female |
