5G RedCap: The Smart Path to the Future of IoT
The RUT976 is no ordinary 5G router. It uses intelligent 5G RedCap (Reduced Capability) technology. This means for you: You get the crucial advantages of 5G – such as extremely low latency and high Network capacity – but at significantly lower hardware and operating costs than with full-fledged gigabit routers. It is the perfect, cost-efficient solution for IoT applications that require more performance than 4G, but not the full data throughput of eMBB-5G. Make your infrastructure future-proof without breaking your budget.
Maximum Reliability Thanks to Dual-SIM Failover
In industry, a stable connection is not an option, but a necessity. That's why the RUT976 is designed as an IoT Gateway with Failover Function. With two SIM card slots, you can establish redundant connections via two different mobile Network providers. The intelligent RutOS operating system continuously monitors the connection. In case of a weak signal, reaching a data limit, or a complete Network outage, the router automatically and seamlessly switches to the second SIM card. This way, your application always stays online.

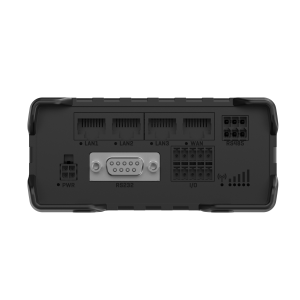

The Universal Interface: RS232, RS485, and I/Os On Board
The true strength of the RUT976 lies in its ability to bridge the gap between IT and OT. While other routers only offer Ethernet, this device gives you a wealth of industrial interfaces. Connect older machine controls, sensors, or terminals directly via the serial RS232 or RS485 interface. Use the digital inputs and outputs to query statuses or switch external devices such as a warning light via the relay output. This router is the central control unit for your M2M and IoT projects.
Built for Extremes: Robustness and Remote Management via RMS
Deployment in control cabinets, vehicles, or hard-to-reach locations? No problem. The robust aluminum housing with IP30 protection and the wide operating temperature range of -40 °C to +75 °C guarantee reliable operation under the toughest conditions. And the best part: You don't have to be on site. The RUT976 is fully compatible with the Teltonika Remote Management System (RMS). Manage hundreds of devices centrally via a web interface, perform firmware updates, and monitor status – it couldn't be more efficient. As one of the leading Teltonika 4G / 5G Routers, it is the first choice for professionals.
Strengths & Notes at a Glance
- Pro: Future-proof and cost-efficient 5G connectivity through RedCap technology.
- Pro: Extreme interface variety with RS232, RS485, digital I/Os, and relay output.
- Pro: Maximum connection security through Dual-SIM functionality with advanced auto-failover.
- Pro: Extremely robust design for harsh environments and extended temperature range.
- Pro: Fully remotely manageable via the Teltonika Remote Management System (RMS).
- Note: The Ethernet ports (10/100 Mbps) and WLAN (Wi-Fi 4) are not designed for gigabit speed, which could be a limiting factor for internal high-speed networks.
- Note: 5G RedCap deliberately offers reduced data rates (~223 Mbps) and is optimized for IoT/M2M, not as a replacement for a broadband connection with maximum throughput.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | RUT976 |
| EAN: | 4779051841745 |
| Manufacturer Part Number: | RUT976000000 |
| CPU: | Mediatek, 580 MHz, MIPS 24KEc |
| RAM: | 128 MB, DDR2 |
| Flash Memory: | 16 MB, NOR Flash |
| Operating System: | RutOS (Linux-based) |
| Cellular Technology: | 5G RedCap (Reduced Capability), 4G (4G Cat 4) |
| 5G Data Rate: | up to 223 Mbps (Download), 123 Mbps (Upload) |
| 4G (4G) Data Rate: | up to 195 Mbps (Download), 105 Mbps (Upload) |

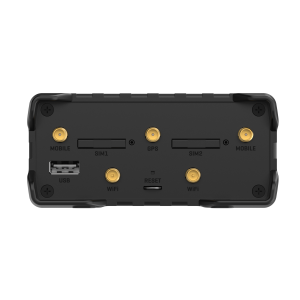

| SIM Slots: | 2 x Mini-SIM (2FF), externally accessible |
| SIM Functions: | Auto-Failover, weak signal, data limit, roaming, network outage |
| WLAN Standard: | IEEE 802.11b/g/n (Wi-Fi 4), 2.4 GHz |
| WLAN Modes: | Access Point (AP), Station (STA) |
| WLAN Security: | WPA3-SAE, WPA3-EAP, WPA2-Enterprise, WPA2-PSK, OWE |
| Ethernet Ports: | 4 x 10/100 Mbps RJ45 (1x WAN configurable, 3x LAN) |
| Serial Interface RS232: | 1 x DB9 Female (with RTS/CTS Flow Control) |
| Serial Interface RS485: | 1 x 6-Pin Female (Full/Half-Duplex) |
| Digital I/O: | 3x Input, 3x Output (details see datasheet) |
| GNSS Systems: | GPS, GLONASS, BeiDou, Galileo, QZSS |
| Cellular Antenna Connectors: | 2 x SMA (male) |
| WLAN Antenna Connectors: | 2 x RP-SMA (male) |
| GNSS Antenna Connector: | 1 x SMA (male) |
| USB Port: | 1 x USB-A (USB 2.0) |
| Power Supply: | 9 – 30 VDC (4-Pin Industrial Socket) |
| Passive PoE: | Yes, via LAN1 (Mode B, 9-30 VDC) |
| Power Consumption: | < 3 W (Idle), < 7 W (Maximum) |
| Housing: | Aluminum with plastic panels |
| Protection Class: | IP30 |
| Operating Temperature: | -40 °C to +75 °C |
| Dimensions (W x H x D): | 110 x 50 x 100 mm |
| Weight: | approx. 650 g |
| Mounting: | DIN Rail, Wall Mount |
Scope of Delivery
| 1 x Teltonika RUT976 Router |
| 1 x 4-Pin Power Supply |
| 2 x Cellular Antenna (SMA male) |
| 2 x WLAN Antenna (RP-SMA male) |
| 1 x GNSS Antenna (SMA male, self-adhesive) |
| 1 x Ethernet Cable (1.5 m) |
| 1 x SIM Adapter Kit |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
What exactly is 5G RedCap and why should I use it?
5G RedCap (Reduced Capability) is a 5G standard that offers a middle ground between the speed of 4G and the full performance of 5G. It is optimized to deliver important 5G benefits such as low latency and high Network capacity, but with lower power consumption and at lower costs. It is ideal for industrial IoT applications (e.g., sensors, controllers) that require better response time than 4G, but not gigabit data rates.
Is the RUT976 suitable for vehicle tracking and fleet management?
Yes, absolutely. Thanks to the integrated GNSS module, which supports GPS, GLONASS, BeiDou, and Galileo, as well as the robust housing and stable mobile Network connection, the Router is excellently suited for precise tracking and data transmission in vehicles and fleets.
What advantage does the Dual-SIM function offer in practice?
The Dual-SIM function drastically increases reliability. You can use SIM cards from two different Network operators. If one Network fails or the signal is too weak, the Router automatically switches to the second SIM card, ensuring an uninterrupted connection. This is crucial for business-critical applications.
Can I manage the Router remotely without being on-site?
Yes. The RUT976 is fully compatible with the Teltonika Remote Management System (RMS). Through this platform, you can centrally monitor, configure, restart, and perform firmware updates on one or hundreds of Routers, significantly reducing maintenance effort.
Why does the Router have so many different Antenna connectors?
Do I need a special 5G RedCap SIM card for operation?
No, generally no special SIM card is required. You need a mobile Network plan that supports 5G. However, the provider's 5G Network must support the SA (Standalone) architecture and RedCap functionality to fully utilize the benefits. The device is backward compatible with 4G.
