Your Router Outdoors: Maximum Performance Without Compromise
You know the problem: Your Teltonika RUT241 performs well indoors, but outdoors, on the RV roof or your video surveillance mast, it's exposed to the elements. The QuSpot A240S is more than just an Antenna – it's a shield and performance booster in one. This specially developed all-in-one outdoor Antenna Enclosure for RUT240 transforms your router into a robust outdoor unit. Forget complicated setups with separate boxes and Antennas. Here you get a clean, professional, and extremely powerful complete solution.
The Secret: Zero Cable Loss, Full Reception
Every meter of Antenna Cables means signal loss (attenuation). With traditional setups, 30-50% of signal strength can quickly be lost before it even reaches the router. The QuSpot A240S cleverly bypasses this problem: The router is connected directly to the integrated Antennas inside the Enclosure. The connecting cables are only a few centimeters long. The result? Drastically reduced signal loss and thus a stronger, more stable, and faster 4G signal. Get the absolute maximum out of your mobile plan.
Built for Every Adventure: The QuSpot A240S in Use
Whether you're a digital nomad traveling with a camper, need a reliable internet connection on your boat, or want to connect a remote holiday cabin – the QuSpot A240S is your reliable partner. Thanks to the 360° omnidirectional characteristic, you don't have to painstakingly align the Antenna with a cell tower. This makes it the perfect omnidirectional antenna for better 4G reception on boats or RVs, where the position constantly changes. Mounting is child's play on a mast or wall thanks to the included Mounting Systems.
Easy Installation, Professional Result

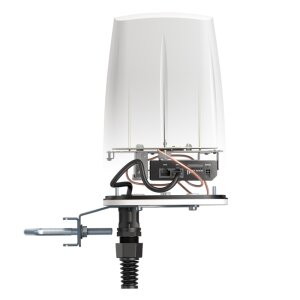

Installation is incredibly simple. You open the Enclosure, mount your Teltonika Router on the designated plate, connect the short Antenna Cables, and plug in the Ethernet Cable. The router is elegantly powered via Passive Power over Ethernet (PoE) through the same Ethernet Cable that also transmits data. So you only need a single cable leading into your vehicle or building. Please note that a suitable Passive PoE Injector (not included) is required for operation.
Strengths & Notes at a Glance
- Pro: Drastically reduced cable losses for maximum 4G reception.
- Pro: Makes the indoor router absolutely weatherproof (IP67).
- Pro: Clean all-in-one installation instead of multiple individual parts.
- Pro: 360° reception ideal for mobile applications (no alignment needed).
- Pro: Also improves outdoor WiFi coverage.
- Note: As an omnidirectional Antenna, not suitable for extreme ranges with a known cell tower (directional Antennas would be better for this).
- Note: Requires a separate Passive PoE Injector for router Power Supply.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuSpot A240S |
| EAN: | 5907772035016 |
| HAN / MPN: | A240S |
| Product Type: | Antenna System with Integrated Enclosure |
| Integrated 4G Antennas | |
| Quantity: | 2 |
| Antenna Type: | Multiband 4G/5G Omnidirectional Antenna |
| Frequency Range 1: | 694 - 960 MHz |
| Antenna Gain 1: | 2 dBi |
| Frequency Range 2: | 1700 - 2200 MHz |
| Antenna Gain 2: | 2 dBi |
| Frequency Range 3: | 2200 - 2700 MHz |
| Antenna Gain 3: | 4 dBi |
| Polarization: | Vertical |
| Horizontal Beamwidth: | 360° |
| Vertical Beamwidth: | ~35° |
| Impedance: | 50 Ω |
| VSWR: | <1.60 (max. <2.00) |
| Integrated WiFi Antenna | |
| Quantity: | 1 |
| Antenna Type: | WiFi Omnidirectional Antenna |
| Frequency Range: | 2.4 - 2.5 GHz |
| Antenna Gain: | 6 dBi |
| Polarization: | Vertical |
| Horizontal Beamwidth: | 360° |
| Vertical Beamwidth: | ~25° |
| Impedance: | 50 Ω |
| VSWR: | <1.70 (max. <2.00) |
| Mechanical & Physical Specifications | |
| Dimensions: | 160 x 160 x 240 mm |
| Weight: | 1.5 kg |
| Housing Material: | ABS, Aluminum, PTFE |
| Protection Class: | IP67 |
| Impact Resistance: | IK08 |
| Operating Temperature: | -40°C to +75°C |
| Mounting Type: | Mast or Wall Mounting |
| Compatible Mast Diameter: | 40 - 60 mm |
| Connections & Compatibility | |
| External Connector: | 1x Waterproof RJ45 Socket |

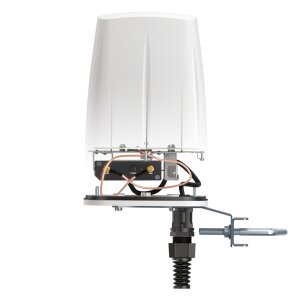

| Internal Connectors: | Pre-assembled Cables with SMA (4G) & RP-SMA (WiFi) |
| Primarily Compatible with: | Teltonika RUT241 |
| Other Compatible Routers: | Teltonika RUT200, RUT230, RUT240, RUT260, RUT281 |
| Compatibility Note: | For RUT230, only one 4G Antenna is connected |
Scope of Delivery
| 1 x QuSpot A240S Antenna Enclosure |
| 1 x Mounting material for mast/wall mounting (U-bolts etc.) |
Frequently Asked Questions (FAQ)
Is the Teltonika RUT241 Router included with the QuSpot A240S?
No, the Router is not included. The QuSpot A240S is an Antenna enclosure specifically designed to house and operate a Teltonika RUT241 or another compatible Teltonika LTE / 5G Routers model.
Do I need additional Accessories for the installation?
Yes, you will need an Ethernet Cable of the desired length and a suitable PoE Injectors / Power Supplies to power the Router within the enclosure. However, the Mounting Systems for a mast or wall are already included.
Can I also use the Antenna for 5G?
The Antenna covers frequency bands also used for 5G. Thus, it can be used with a 5G-capable Router, but it is primarily optimized as a powerful 4G / LTE solution.
Does the QuSpot A240S Antenna need to be specially aligned?
No. As it is an Omni-Directional Antenna, it receives and transmits signals in a 360-degree radius. Special alignment with a transmission mast is not necessary, which makes installation particularly easy.
How is the Router protected from moisture inside?
The Enclosures are IP67 certified. This is achieved through a special seal and a waterproof RJ45 Cabling gland, which reliably prevents the ingress of dust and water.
Does the Antenna also improve the WiFi reception of my Router?
Yes, the QuSpot A240S includes an integrated WiFi Omni-Directional Antenna with 6 dBi gain. This ensures significantly better WiFi coverage around the Antenna's mounting location, e.g., at a campsite.
