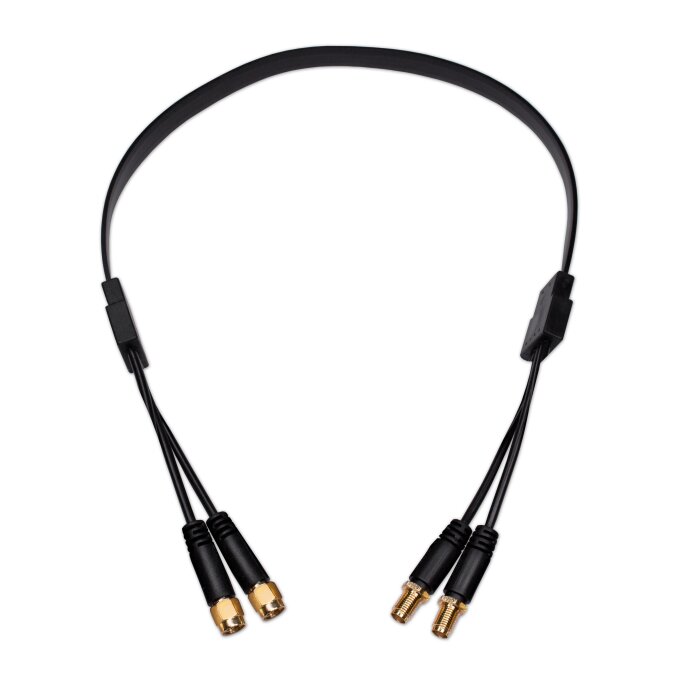

The JARFT J2250-RPSMA 2x2 MIMO WLAN window feed-through is the ideal solution for connecting a 2x2 MIMO WLAN outdoor antenna to your indoor WLAN router or access point without the need for drilling.
With a length of 50 cm and an ultra-flat design, the window cable can easily be routed through a window frame or simply laid inside it without damaging or affecting the frame, the window, or the locking mechanism.
Equipped with two RP-SMA plugs and two RP-SMA sockets, the window feed-through ensures a secure and low-loss connection between the antenna cable of your 2x2 MIMO WLAN antenna and the antenna cable or even the antenna ports of your WLAN router or access point. You can also find this RP-SMA WLAN window feed-through in a single version as well as a 4x4 MIMO variant in our range. This window feed-through is also available in our shop for use with an LTE/5G antenna and corresponding routers.
Technical Data:
| Manufacturer: | JARFT |
| Model: | J2250-RPSMA |
| Product: | Coaxial Window Feedthrough |
| Cable Type: | Micro Coaxial Cable 1.13 |
| Impedance: | 50 Ohms |
| Attenuation: | ~0.8dB @ 1GHz ~1.16dB @ 2GHz 1.44dB @ 3GHz 1.68dB @ 4GHz 1.88dB @ 5GHz 2.08dB @ 6GHz |
| Length: | 50cm |
| Width: | 1.0 cm |
| Height: | 1.5 mm |
| Color: | Black |
| Connectors: | 2 x RP-SMA Plug to 2 x RP-SMA Socket |
Scope of Delivery:
| 1 x WIFI window feedthrough for 4x4 MIMO antennas - 50cm window cable, RP-SMA male to RP-SMA female |
