This coaxial antenna cable of the type RF-240 is a very low attenuation, high quality and inexpensive antenna cable. Due to the low attenuation (double shielding), the cable is very suitable for WiFi, LoRa, GSM, 3G, 4G or 5G frequency bands.

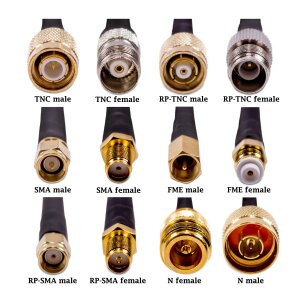

With our cable configurator you can put together your desired connector combinations yourself. We provide you with a large selection of different connectors. Simply select the length and connector you want at the top of the page. The cable is then pre-assembled and delivered by us ready for use.
The cable can be used as a connection or extension cable for antennas / devices. The RF-240 cable has a rigid inner conductor consisting of a copper wire. The cable is UV and moisture resistant and can therefore also be used outdoors.
Important Information: Please consider that this is a custom-made product which is manufactured according to your specifications. The right of cancellation does NOT apply to this product.
Technical Data:
| Cabletype: | RF-240 Coaxial Cable |
| Impedance: | 50 Ohm |
| Loss: | 0,24dB/m @ 900 MHz 0,35dB/m @ 1800 MHz 0,41db/m @ 2400 MHz 0,66db/m @ 5800 MHz |
| Capacity: | 80pf/m |
| Inner conductor: | 1,42mm Copper |
| Insulation: | 3.81mm PE |
| Jacket: | PVC |
| Outer diameter: | 6.1 mm |
| Bending radius: | 50mm |
| Color: | Black |
Scope of delivery
| RF-240 Coaxial Antenna cable in chosen and chosen connectors |
Important Information: Please consider that this is a custom-made product which is manufactured according to your specifications. The right of cancellation does NOT apply to this product.
