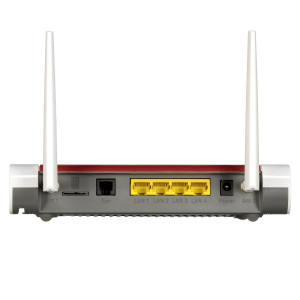

Internet where you need it: Your FRITZ!Box with SIM card
Imagine being able to take your fast internet with you – to your holiday home, to a new apartment without a landline connection, or to any place where DSL expansion is delayed. With the AVM FRITZ!Box 6850 4G, this becomes a reality. This powerful 4G / 5G Routers only requires a Mini-SIM card and a power outlet to set up a stable and fast home Network. Setup is child's play thanks to the famous FRITZ!OS, and the integrated alignment aid shows you exactly where the box has the best mobile reception.
More than just a router: The complete hub for your home Network
The FRITZ!Box 6850 4G is far more than just a way to the internet. It is the heart of your digital home. With fast dual-band Wi-Fi, it supplies smartphones, laptops, and smart TVs simultaneously and without stuttering. Thanks to AVM Mesh Wi-Fi, you can seamlessly expand your Network with other FRITZ! products. Four Gigabit LAN ports offer maximum speed for your wired devices such as PCs or game consoles. And with the USB 3.0 port, your external hard drive becomes network storage (NAS) that you can access from anywhere.
Stable reception made easy: External Antennas for maximum power
Do you live in an area with a fluctuating mobile signal? No problem. The FRITZ!Box 6850 4G is perfectly prepared as a 4G Router for poor reception. It comes with two external mobile Antennas that you can optimally align. If that's not enough, you can simply unscrew them thanks to the standard SMA connectors and replace them with even more powerful 4G Outdoor Antennas. This way, you get the maximum speed and stability even from weak signals and ensure a reliable connection.
Calling and surfing in HD quality – completely without a cable connection
Who says you need a landline connection for a full-fledged telephone system? The FRITZ!Box 6850 4G proves otherwise. The integrated DECT base station connects up to six cordless phones and supports HD telephony for a crystal-clear call experience. Additionally, you can connect an analog phone, fax, or answering machine. With clever functions like answering machines with email forwarding (Voice-to-Mail) and a fax function with Fax-to-Mail, the FRITZ!Box becomes a professional communication hub for your home.
Strengths & Notes at a glance
- Pro: Extremely versatile thanks to FRITZ!OS with VPN, NAS, media server and more.
- Pro: Full-fledged telephone system with DECT base station and connection for analog devices.
- Pro: High flexibility due to location independence and easy setup.
- Pro: Comprehensive connectivity with 4x Gigabit LAN, dual-band Wi-Fi and USB 3.0.
- Pro: Option to improve reception with external antennas.
- Note: 4G speed limited to Cat. 4 (150 MBit/s), which is sufficient for most applications but not the maximum of modern networks.
- Note: Supports Wi-Fi 5 (Wi-Fi AC), not the newer Wi-Fi 6 standard.
Specifications & Features
| Manufacturer: | AVM |
| Model: | FRITZ!Box 6850 4G |
| EAN: | 4023125029257 |
| Device type: | Multifunctional 4G router with Wi-Fi and telephone system |
| 4G Category: | 4G Cat. 4 |
| Maximum data rate (4G): | 150 MBit/s Download, 50 MBit/s Upload |
| SIM card slot: | 1x Mini-SIM (2FF) |
| Supported 4G Bands (FDD): | B1, B3, B5, B7, B8, B20, B28 |
| Supported 4G Bands (TDD): | B38, B40, B41 |
| Supported 3G Bands: | B1, B5, B8 (UMTS/HSPA+) |
| Antenna connectors: | 2x SMA (female) for external mobile antennas |
| Wi-Fi Standards: | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g/a/b |
| Wi-Fi Speed: | Up to 866 MBit/s (5 GHz) + 400 MBit/s (2.4 GHz) |
| Wi-Fi Features: | Mesh Wi-Fi, Dual-band, WPA3/WPA2, WPS, Guest access |
| LAN Ports: | 4x Gigabit Ethernet (10/100/1000 MBit/s) |
| USB Port: | 1x USB 3.0 for storage (NAS) and printer |
| DECT Base Station: | For up to 6 cordless phones (e.g. FRITZ!Fon) |
| Analog telephone port: | 1x a/b-Port (TAE/RJ11) |
| Telephony Features: | HD telephony, 5 answering machines, Fax-to-Mail, DECT Eco |
| Operating System: | FRITZ!OS with Firewall, Parental Control, VPN (IPSec) |
| Chipset: | Qualcomm IPQ4019 Quad-Core |
| RAM: | 256 MB DDR3L |
| Flash Memory: | 512 MB SLC NAND |
| Power Consumption: | Average approx. 6 Watts |
| Dimensions (W x D x H): | 208 x 150 x 37 mm |
| Weight: | approx. 385 g |
| Mounting: | Desktop device, wall mounting possible |
Scope of Delivery
| 1 x AVM FRITZ!Box 6850 4G |
| 2 x detachable mobile Antenna (SMA) |
| 1 x Power Supply unit |
| 1 x 1.5m LAN cable |
| 1 x Installation guide |
Frequently Asked Questions (FAQ)
Can I use the FRITZ!Box 6850 LTE even without a DSL connection?
Yes, absolutely. The FRITZ!Box 6850 LTE is specifically designed to establish an internet connection via the 4G/LTE or 3G mobile network. You only need an activated Mini-SIM card and mobile reception at your location.
Which SIM card size does the FRITZ!Box 6850 LTE require?
The device uses a Mini-SIM card (also known as 'Standard-SIM' or 2FF), the largest of the common SIM card formats.
Can I improve the mobile reception of the FRITZ!Box 6850 LTE?
Yes. The box has two external, screw-on antennas with standard SMA connectors. You can replace these with more powerful indoor or outdoor antennas to significantly improve reception in locations with a weak signal.
Does the FRITZ!Box 6850 LTE support AVM's Mesh technology?
Yes, the FRITZ!Box 6850 LTE is fully Mesh-capable. It can serve as a Mesh Master and build a seamless and powerful WiFi network throughout the house with other FRITZ! products (such as FRITZ!Repeater or FRITZ!Powerline).
Can I also use regular phones with the FRITZ!Box 6850 LTE?
Yes. You can register up to six cordless DECT phones directly to the integrated base station. Additionally, there is a connection (a/b port) for a classic analog phone, a fax machine, or an answering machine.
Is setting up the FRITZ!Box 6850 LTE complicated?
No, the setup is very user-friendly. After inserting the SIM card and connecting to power, a setup wizard guides you through the configuration. The 'fritz.box' user interface is clear and offers assistance, such as an alignment aid for the antennas.
