No More Dead Zones: The WiFi Solution for Your High-Bay Warehouse

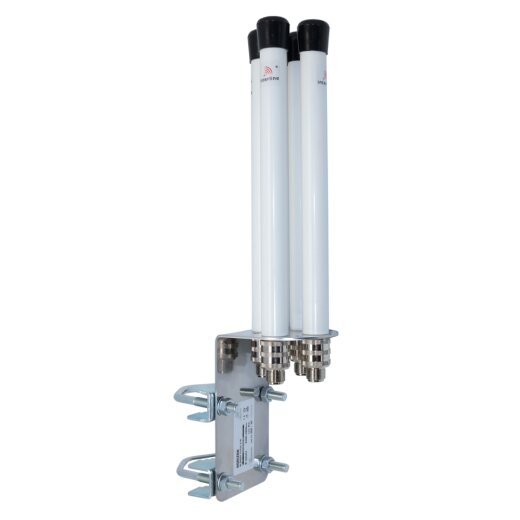

The Interline 4X4 MIMO HORIZON is no ordinary omni-directional Antenna. It was developed with a clear mission: to eliminate the notorious WiFi problems in warehouses, production facilities, and logistics centers. Its secret lies in the innovative 'Dual Beam' technology. While the main part of the signal provides horizontal 360° coverage, a small but crucial part of the signal is directed upwards. This signal reflects off the ceiling and 'rains' down from above into the aisles between high metal shelves – precisely where conventional Antennas fail. The result is drastically improved Network coverage without expensive, additional WiFi Access Points.
Built for the Future: Maximum Performance with Wi-Fi 6
Invest in a solution that performs today and tomorrow. The HORIZON is explicitly designed for the requirements of modern WiFi Networks according to 802.11ac (Wi-Fi 5) and 802.11ax (Wi-Fi 6). Its specially developed Antenna arrays with low self-capacitance ensure that even complex and dense modulation types like 1024-QAM are transmitted cleanly and without errors. This means for you: You can unleash the full potential of your professional WiFi Access Points and benefit from maximum speed and efficiency, especially in WAVE2 and MU-MIMO environments with many simultaneous users.
Industrial-Grade Down to the Detail: Robustness Meets 4x4 MIMO Power
An Antenna in an industrial environment must withstand more than in an office. That's why the HORIZON's technology is housed in an extremely durable, UV-resistant PVC casing, certified to IP67. This means complete protection against dust and even temporary immersion in water. Whether dust, dirt, or moisture – this Antenna continues to operate reliably. The four separate connections for true 4x4 MIMO enable massive bandwidth and an extremely stable connection, making it the perfect 4x4 MIMO Antenna for industrial environments. Ideal when dozens of handheld scanners, automated guided vehicles, or tablets simultaneously access the Network.
Strengths & Notes at a Glance
- Pro: Specifically designed for warehouses, the 'Dual Beam' technology uses ceiling reflections to illuminate dead zones between shelves.
- Pro: Fully optimized for Wi-Fi 6 (802.11ax) and MU-MIMO to fully utilize the performance of modern WiFi Access Points.
- Pro: Extremely robust IP67 housing reliably protects against dust and water in harsh industrial environments.
- Pro: True 4x4 MIMO with four signal paths ensures maximum bandwidth and stability for many simultaneous devices.
- Note: Only conditionally suitable for outdoor use, as the core feature (ceiling reflection) is ineffective there.
- Note: Professional N-sockets require the purchase of suitable, high-quality Coaxial Pigtails, which are not included in the scope of delivery.
Specifications & Features
| Manufacturer: | Interline |
| Model: | 4X4 MIMO HORIZON |
| HAN / MPN: | IH-G0607-F2460-V-M |
| EAN / GTIN: | 5907758040713 |
| Application Environment: | Indoor areas (warehouses, production facilities, logistics centers) |
| Technology: | 4x4 MIMO (Multiple-Input Multiple-Output) |
| Frequency Range 2.4 GHz: | 2400 - 2500 MHz |
| Frequency Range 5 GHz: | 5000 - 6000 MHz |
| Antenna Gain @ 2.4 GHz: | 6 dBi |
| Antenna Gain @ 5 GHz: | 7 dBi |
| Polarization: | Vertical (Linear) |
| Impedance: | 50 Ohm |
| VSWR (Maximum): | < 1.7:1 |
| VSWR (Typical): | 1.4:1 |
| Port-to-Port Isolation: | > 20 dB |
| Cross Polarization Discrimination (XPD): | > 20 dB |
| Maximum Input Power: | 2 Watt |
| DC Ground: | No |
| Radiation Pattern (Horizontal): | 360° (Omni-directional) |
| Beamwidth (Vertical) @ 2.4 GHz: | 30° |
| Beamwidth (Vertical) @ 5 GHz: | 20° |
| Special Radiation Feature: | Dual Beam Technology (approx. 10% upwards for ceiling reflection) |
| Compatible WiFi Standards: | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Optimized for Modulation: | 256-QAM, 1024-QAM |
| Optimized for Systems: | WAVE2, MU-MIMO |
| Connectors: | 4 x N-Female |
| Housing Material: | UV-resistant PVC |
| Protection Class: | IP67 (dustproof, protection against temporary immersion) |
| Height: | 315 mm |
| Diameter: | 80 mm |
| Weight (Antenna only): | approx. 1.21 kg |
| Mounting: | Pole Mount (for 38 mm to 51 mm diameter) |
| Wind Load: | 16N at 170 km/h |
| Operating Temperature: | -30°C to +80°C |
Scope of Delivery
| 1 x Interline 4X4 MIMO HORIZON Antenna (IH-G0607-F2460-V-M) |
| 1 x Pole Mount Set |
Frequently Asked Questions (FAQ)
What is the main difference between the Interline HORIZON and the HORIZON Mini?
The main difference lies in the antenna gain and primary application. The larger HORIZON offers higher gain with 6/7 dBi and special Dual-Beam technology for warehouses. The Mini version has lower gain (4/5 dBi) and is designed for less complex indoor or general outdoor applications, making it a versatile WiFi Antenna.
Why does this antenna have four connectors?
The four connectors are necessary for 4x4 MIMO (Multiple-Input Multiple-Output) technology. Each connector processes its own data stream, which significantly increases data throughput, stability, and the efficiency of the Network, especially in environments with many users and reflections (MU-MIMO).
Can I use this antenna with my regular home router (e.g., Fritz!Box)?
Generally not. This professional Antenna requires a WiFi Access Point or WiFi Router with four external antenna connectors (e.g., N-type connectors). Standard home routers are usually not compatible as they have integrated Antennas.
What does 'Dual Beam' technology mean in practice?
In a warehouse with high shelves, these often block the WiFi signal. Dual-Beam technology sends a second signal beam specifically upwards to the ceiling. The ceiling reflects the signal downwards into the aisles, thus illuminating dead zones that normal WiFi Antennas cannot reach.
Is the antenna suitable for 5G mobile communication?
No, this Antenna is exclusively designed for WiFi frequencies in the 2.4 GHz and 5 GHz range. It supports WiFi standards like Wi-Fi 6 (802.11ax), but is not suitable for 4G or 5G mobile communication frequencies. For 4G / LTE Routers or 5G Routers, dedicated 4G / LTE Outdoor Antennas or 5G Antennas / Outdoor Antennas would be required.
What does IP67 certification mean?
IP67 is a protection rating. The '6' stands for complete dust protection and the '7' for protection against temporary immersion in water. This makes the Antenna extremely robust for use in harsh industrial environments with dust, dirt, or moisture.
