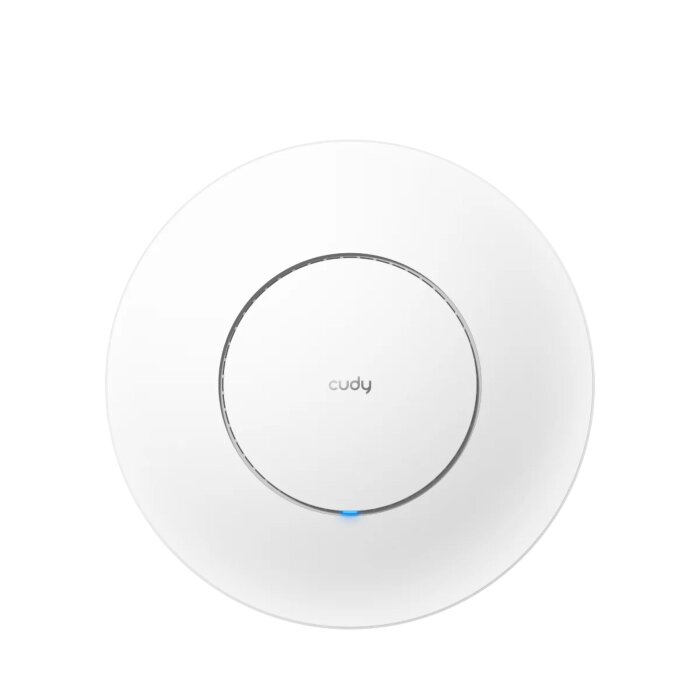

Your WiFi, redefined: The Cudy AP1300
Are you looking for a reliable solution to optimize your WiFi Access Point Network? The Cudy AP1300 is exactly what you need. It offers not only lightning-fast AC1200 Dual-Band speeds but also impressive versatility, making it the ideal choice for offices, hotels, classrooms, or your demanding home office. Extend your range and enjoy a stable connection without compromise, even in complex environments where you need a robust Enterprise WiFi solution.
Maximum Flexibility for Any Environment
The Cudy AP1300 was designed for maximum adaptability. Thanks to support for PoE (Power over Ethernet), you can easily power it and transmit data via a single Ethernet cable. This makes installation particularly flexible, as you don't need an additional power outlet nearby. Whether Ceiling Mounting or Wall Mounting – the included mounting kit allows for discreet integration into any indoor environment. It also offers various operating modes such as AP, Router, Repeater, and WISP, so you can adapt it precisely to your needs to optimally expand your Network.
Business Features Your Network Will Love
This WiFi Access Point is packed with intelligent features that elevate your network to a new level. With MU-MIMO and Beamforming, data is sent more efficiently to multiple devices simultaneously, significantly improving throughput and performance under heavy load. Band Steering ensures that your devices always use the optimal frequency band, while Multiple SSIDs allow you to set up separate networks for different user groups. The integrated Guest Network (Captive Portal) is perfect for businesses that want to offer their visitors secure and controlled internet access. And for a truly uninterrupted experience, the AP1300 supports Mesh Wi-Fi and seamless roaming when integrated into an existing Cudy Mesh network. For advanced features like Captive Portal, a Cudy Access Point Controller is required as a gateway.
Easy Integration, Strong Performance
The Cudy AP1300 is not only powerful but also easy to integrate. It is the perfect addition to extend WiFi coverage in your existing network. With its Gigabit Ethernet port, it is ready for high data rates and ensures that your network doesn't falter even with demanding applications. Whether you are building a new network or optimizing an existing one, this Access Point delivers the performance and reliability you expect. Note that for advanced features such as Captive Portal or Self-Organizing Mesh, a Cudy PoE Injectors / Power Supplies is required as a gateway, which is sold separately.
Strengths & Notes at a Glance
- Pro: Versatile operating modes such as Access Point, Router, Range Extender, and WISP for high adaptability.
- Pro: Flexible power supply options including 802.3at/af PoE, passive PoE, and DC power adapter for easy installation.
- Pro: Advanced business features such as MU-MIMO, Beamforming, Band Steering, Multiple SSID, and Guest Network (Captive Portal).
- Note: Some advanced business features like Captive Portal and Auto Channel Optimization require a separate Cudy AC Controller as a gateway.
- Note: For full Mesh Wi-Fi functionality and seamless roaming (802.11k/v), a compatible Cudy Mesh router, Mesh unit, or AC Controller is required as a gateway.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | AP1300 (Version 1.0 / 2.0) |
| WiFi Standards: | Wi-Fi 5 (802.11ac), IEEE 802.11n/g/b/a |
| Frequency Bands: | 2.4 GHz and 5 GHz (Dual-Band) |
| Max. WiFi Speed 5 GHz: | Up to 867 Mbit/s |
| Max. WiFi Speed 2.4 GHz: | Up to 300 Mbit/s |
| Total (theoretical): | 1167 Mbit/s (AC1200) |
| Wi-Fi Streams 5 GHz: | 2 Spatial Streams (2T2R MIMO) |
| Wi-Fi Streams 2.4 GHz: | 2 Spatial Streams (2T2R MIMO) |
| Antennas: | 4 internal omnidirectional Antennas |
| Antenna Gain (Outdoor Reference): | 2.4 GHz: 4.46 dBi; 5 GHz: 4.37 dBi |
| Chipset: | MT7621DA+MT7613B+MT7603E |
| CPU: | 880 MHz Dual-Core Processor |
| Flash Memory (ROM): | 16 MB (128 Mbit) NOR |
| RAM (DDR): | 128 MB (1 Gbit) DDR3 |

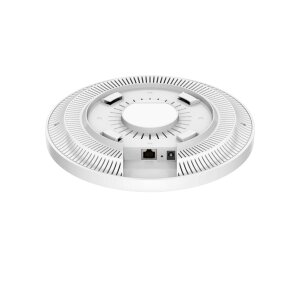

| Ethernet Ports: | 1x Gigabit Ethernet WAN/LAN Port (RJ-45) with PoE In |
| PoE Support: | IEEE 802.3at/af PoE, Passive PoE: 24-57 V DC (Pins +4,5 / -7,8) |
| DC Power Supply: | 12V⎓1A (DC adapter included) |
| Max. Power Consumption (802.3at PoE): | 18 W (Idle: 5 W) |
| Transmit Power 2.4 GHz: | <20 dBm |
| Transmit Power 5 GHz: | <20 dBm (5.15 - 5.25 GHz), <23 dBm (5 GHz) |
| Operating Modes: | Access Point, Wireless Router, Wireless Extender (Repeater), WISP Mode |
| WiFi Features: | MU-MIMO, Beamforming, Band Steering, Mesh Wi-Fi (requires Cudy Gateway), Fast Roaming (802.11k/v), Multiple SSID, Guest Network (Captive Portal) (requires Cudy AC Controller) |
| Max. Connected Devices: | 100 |
| Coverage (approx.): | 100 m² (1,100 ft²), max. range 170 m (550 ft) |

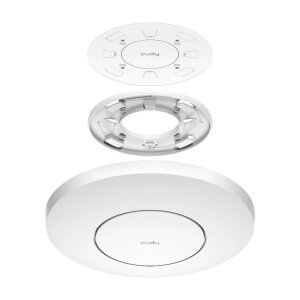

| Mounting: | Wall Mounting and Ceiling Mounting (mounting kit included) |
| Dimensions (AP1300 2.0): | Φ171.4×41 mm (Φ6.75×1.61') |

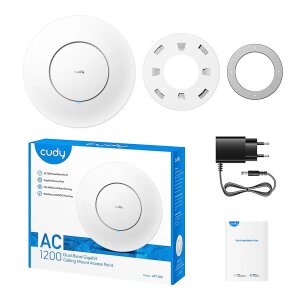

Scope of Delivery
| 1 x Cudy AP1300 AC1200 Gigabit Wireless Access Point |
| 1 x DC Adapter (12V⎓1A) |
| 1 x Mounting Kit for Wall and Ceiling Mounting |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What does 'AC1200 Dual-Band' mean for the Cudy AP1300?
'AC1200 Dual-Band' means that your Cudy AP1300 simultaneously uses two Wi-Fi frequency bands: the 2.4 GHz band with a maximum speed of 300 Mbps and the 5 GHz band with up to 867 Mbps. The sum of these speeds results in a theoretical total bandwidth of 1167 Mbps, which is often rounded to 'AC1200'. The 5 GHz band offers you higher speeds and is less susceptible to interference.
Can the Cudy AP1300 be powered via a single cable?
Yes, your Cudy AP1300 supports Power over Ethernet (PoE) according to 802.3af/at standards as well as passive PoE (24-57V). This allows you to power the device via the same Ethernet cable you use for data transmission, simplifying installation and eliminating the need for additional power cables.
Is the Cudy AP1300 suitable for outdoor use?
The Cudy AP1300 described here (EAN 6971690792022) is primarily designed for indoor use and is referred to as an 'Indoor' Access Point. However, Cudy also offers a separate model called 'AP1300 Outdoor', which features an IP65-certified housing for weather resistance and Lightning Protection.
What advantages does the Mesh function of the Cudy AP1300 offer?
The Mesh function of your Cudy AP1300 enables seamless roaming (802.11k/v), allowing your client devices such as smartphones or laptops to move automatically and without interruption between different Access Points. This ensures continuous Wi-Fi coverage and uninterrupted connections, ideal for VoIP calls or live streaming. However, a Cudy Mesh router, a Mesh unit, or an AC Controller is required as a gateway for full functionality.
How many devices can the Cudy AP1300 serve simultaneously?
Your Cudy AP1300 can support up to 100 connected devices simultaneously. Thanks to MU-MIMO technology, it can send multiple data streams to several of your devices at the same time, which improves efficiency and throughput under high load.
Can I set up a guest Wi-Fi with the Cudy AP1300?
Yes, your Cudy AP1300 supports setting up multiple SSIDs (guest networks) and offers a Captive Portal function. This provides you with a customizable login page for guests and various authentication methods to control and manage internet access for visitors.
