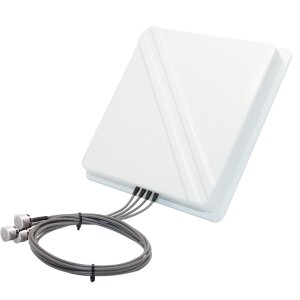

The Interline PANEL 10 DUAL-BAND AC-MIMO 4x4 WiFi directional antenna is designed for operation in WAVE2 and AC MU-MIMO 4x4 (four independent streams) systems. The antenna operates in the 2.4 GHz and 5 GHz frequency bands, providing excellent frequency utilization. Specially designed antenna arrays guarantee efficient operation with a high degree of efficiency. The antenna is compatible with the 256-QAM modulation used in the mentioned systems. The directional antenna is thus compatible not only with 802.11a/b/g/n but also with the 11ac and 11ax standards - It is also compatible with the upcoming WiFi 7 standard.
The housing of this 4x4 MU-MIMO / WAVE2 directional antenna is made of robust ABS plastic, which is also resistant to many chemicals (such as acids, bases, salts) that may occur in industrial plants. The backplate is powder-coated and cured at high temperatures to enable trouble-free operation over many years.
The antenna is equipped with 4 x 90cm cables, each with an N male connector. Thus, the antenna can be connected either directly or with a suitable extension cable to an end device.

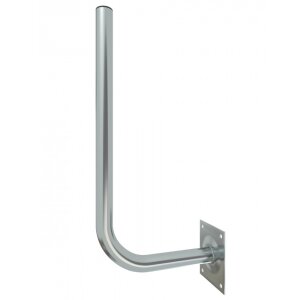

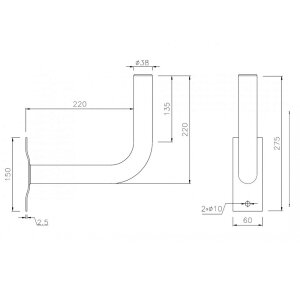

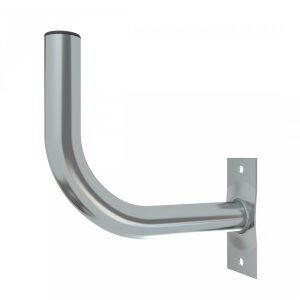

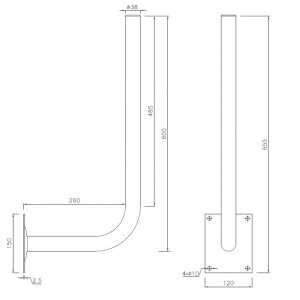

The Interline PANEL 10 DUAL-BAND MU-MIMO 4x4 directional antenna is intended for mounting on a mast or wall bracket (see mounting accessories). A pipe clamp (30mm - 50mm) is included in the delivery.
Technical Specifications:
Manufacturer: | Interline |
Model: | IP-G1010-F2458-HV-N |
Antenna Type: | Directional Antenna |
Frequency Range: | 2.4 GHz (IEEE802.11 b/g/n) 5 GHz (IEEE802.11a/n/ac/ax) WiFi 7 |
Gain: | 2.4GHz: 10dBi 5GHz: 10dBi |
Impedance: | 50 Ohms |
VSWR: | max. 1.62 |
Polarization: | Horizontal / Vertical (Dual-Polarization) |
Beamwidth: | 45° Horizontal 45° Vertical |
Front-to-Back Ratio: | min. 25dB |
XPD (Cross Polarization Discrimination): | min. 18dB |
Cable / Connector: | 0.9m, N Connector |
Application: | Indoor and Outdoor |
IP Class: | IP64 |
Max Wind Load: | 50N (@170km/h) |

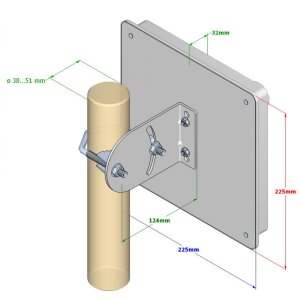

Dimensions: | 22.5cm x 22.5cm x 3.2cm |
Weight: | 900g incl. Mounting Accessories |
Color: | White / Gray |
Delivery Contents:
1 x Interline IP-G1010-F2458-HV-MV Antenna |

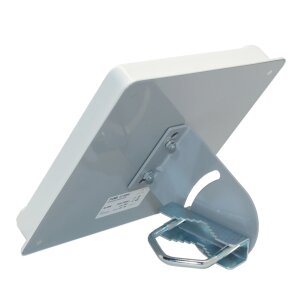

1 x Mounting Bracket incl. Pipe Clamp |
