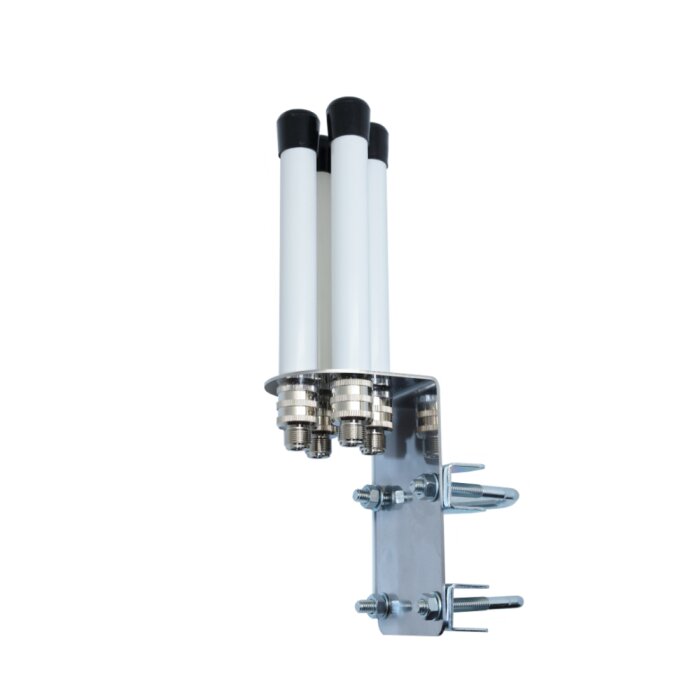

Interline HORIZON 4X4 MIMO MINI - 802.11ac/ax, Outdoor, 4dBi / 5dBi

The HORIZON 4X4 MIMO DUAL-BAND MINI is a compact WiFi omnidirectional antenna from Interline with a gain of 4dBi in the 2.4 GHz and 5dBi in the 5 GHz frequency band. The omnidirectional antenna is compatible to 256-QAM modulation and applications using 802.11a/b/g/n/ac/ax, Wave2, MU-MIMO standard. This model is therefore very versatile and suitable for small to medium-sized areas. The antenna is made of robust, weatherproof, UV-resistant PVC and is suitable for indoor and outdoor use. It has four N female connectors.
ART6182 5907758040768 IH-G0405-F2460-V-M
72,99 €
incl. 19% VAT , plus shipping costs (Standard)
pcs
  • Available immediately
  • Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)
Description

Interline HORIZON 4X4 MIMO DUAL-BAND MINI WiFi omnidirectional antenna is specially designed for use in WAVE2 and the MU-MIMO environments. The antenna works in the frequency bands 2.4 and 5 GHz and offers excellent use of the entire frequency spectrum. The specially designed antenna arrays guarantee high-performance operation with a high degree of efficiency. The antenna is compatible with the 256-QAM modulation used in the systems mentioned.

This model impresses with its very good workmanship and compact design. With a performance gain of 4dBi in the 2.4GHz band and 5dBi in the 5GHz band, the omnidirectional antenna is very well suited for illuminating small to medium-sized areas. Due to the compact design, the antenna is rather inconspicuous.

The antenna is made of robust, weatherproof and UV-resistant PVC. Thus, the antenna can be installed in- and outdoors (IP64) and defies any weather. The omnidirectional antenna is intended for mounting on a mast or a wall bracket. A corresponding mounting bracket and a pipe clamp are included in the scope of delivery.


Technical Data:

Manufacturer / Model:Interline / IH-G0405-F2456-V-M
Type of Antenna:4x4 MIMO Omni Antenna
Gain:4dBi @ 2.4 GHz
5dBi @ 5 GHz
Impedance:50 Ohm
Frequency:2.4 - 2.5 GHz
4.8 - 6.0 GHz
(IEEE 802.11 a/b/g/n/ac/ax)
VSWR:max. 1.7
Polarisation:Vertical (Linear)
Beam width:360° Horizontal
35° Vertical
Front to back ratio:min. 18dB
XPD (Cross Polarization Discrimination):min. 20dB
Connector:4 x N female
Appliance:In- and Outdoor (IP64)
max. Input Power:50 Watts
max. Windload:13N (@170km/h)
Dimensions:30cm x 8cm
Weight:1100g
Color:White
Operating Temperature:-40° to +80° C


Scope of delivery

1 x Interline HORIZON IH-G0405-F2460-V-M WiFi Antenna
1 x Mounting kit with u-clamp for 30-50mm handles
