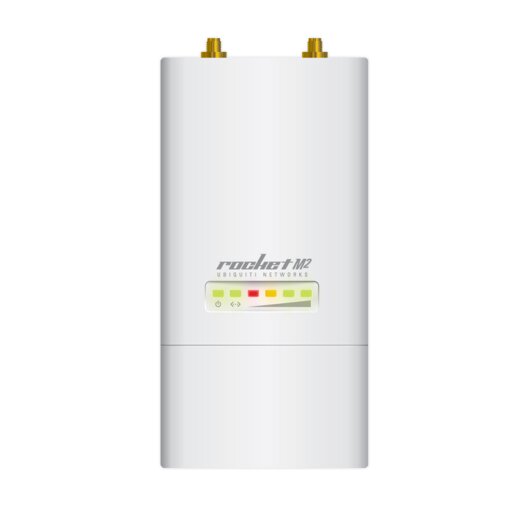

Rocket M2 is a rugged, high-power, linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance and breakthrough speed (150+Mbps real TCP/IP). Rocket M2 combines the "brains" in one robust unit; it can be paired with your choice of airMax BaseStation or Rocket Antennas. This versatility gives network architects unparalleled flexibility and convenience.
Integrated AirMax TechnologyUnlike standard WiFi protocol, Ubiquitis Time Division Multiple Access (TDMA) AirMax protocol allows each client to send & receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions & maximizes air time efficiency. It provides many magnitudes of performance improvements in latency, throughput, & scalability compared to all other outdoor systems in its class.
Passive PoEUsing PoE technology allows to transmit data stream and power / energy through the enthernet cable which integrates the Rocket M2 to your network enviroment. There is no need to to install any extra wired power cord. A 24V, 1A PoE Injector is included.
AirOS VUbiquiti AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
airMax AntennaRocket M2 and AirMax BaseStation / Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the antennas.
Compatible Antennas:
- Ubiquiti airMax Sector 2G-16-90
- Ubiquiti airMax Sector 2G-15-120
- Ubiquiti airMax Omni 2G-10
- Ubiquiti airMax Omni 2G-13
- Ubiquiti Rocket Dish 2G-26
Technical Data:
| Manufacturer / Product: | Ubiquiti Networks / RocketM2 |
| Processor Specs: | Atheros MIPS 24KC, 400MHz |
| Memory Information: | 64MB SDRAM, 8MB Flash |
| Operating System: | AirOS |
| Networking Interface: | 1 x 10/100 BASE-TX (Cat. 5, RJ-45) |
| Frequency Band: | 2.4 GHz (Standard) |
| WiFi Standards: | IEEE 802.11b: 11 Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 300M Mbps |
| TX Power: | max. 28dBm |
| RX Sensitivity: | min. -97dBm |
| TCP/IP Throughput: | 150Mbps+ |
| Antenna Connector: | 2 x RP-SMA Connector (Waterproof) |
| max. Power Consumption: | 6.5 Watt |
| Power Method: | Passive Power over Ethernet |
| Power Input: | 12-24V, 12 Watt |
| Dimensions: | 16cm x 8cm x 3cm |
| Weight: | 0.5 kg |
| Appliance: | In- and Outdoor |
| Operating Temperature: | -30°C to +75°C |
| Operating Humidity: | 5 to 95% non condensing |
Scope of delivery:
| 1 x Ubiquiti 2.4 GHz Rocket M2 |
| 1 x 24V 1A PoE Injector / Power Supply |
