Description
The ProEter7 from Cyberbajt is a omnidirectional WiFi antenna is designed for the 2.4 GHz frequency band and has a gain of 7dBi. It covers a middle sized distance. The antenna has a weatherproof design with a special sealing ring on the coax connector that allows to use the antenna outdoor, even on extreme weather conditions.
This design is characterized by low weight and better stability, which we achieve thanks to using a new type of mounting. The antenna will be simply connected to the external antenna connector of your WiFi device using a coax cable.

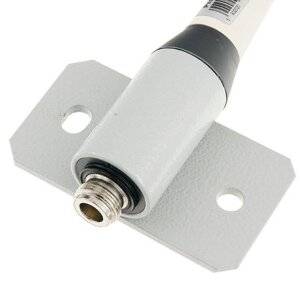

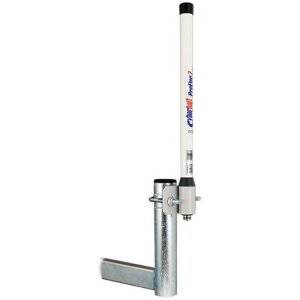

ProEter 7 Omnidirectional WiFi Antenna has a N Female connector and is equipped with U-bolt for mast mounting.
Technical Data:
| Manufacturer: | Cyberbajt |
| Model: | ProEter7 |
| Type of Antenna: | WiFi Omni Antenna |
| Gain: | 7dBi |
| Impedance: | 50 Ohm |
| Frequency: | 2.4 - 2.5 GHz (IEEE 802.11 b/g/n) |
| VSWR: | 1:1.3 |
| Polarisation: | Vertical (Linear) |
| Beam width: | 360° Horizontal 32° Vertical |
| Connector: | N female |
| Appliance: | In- and Outdoor (IP64) |
| Dimensions: | 39.2cm x 2.2cm |
| Weight: | 412g |
| Color: | White |
| Operating Temperature: | -20° to +60° C |
Scope of delivery
| 1 x Cyberbajt ProEter7, 2.4 GHz WiFi 7dBi Omnidirectional Antenna |
| 1 x Mounting kit with and u-clamp for 30-50mm handles |
