The WiFi omnidirectional antenna ProEter10 from manufacturer Cyberbajt is designed for the 2.4 GHz frequency band and supports all common WiFi standards within this band (IEEE802.11 b/g/n).
The ProEter10 impresses with its high quality and offers excellent value for money. With a gain of 10 dBi, the WiFi antenna is capable of illuminating a medium to large-sized and comprehensive area with a WiFi signal, making it ideal for WiFi base stations.
The antenna is made of robust, weatherproof, and UV-resistant plastic. The coaxial connector at the bottom is equipped with an additional seal, allowing the omnidirectional antenna to be installed outdoors and withstand any weather conditions.

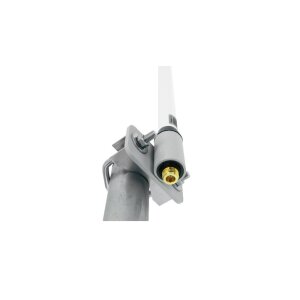

The antenna is intended for mounting on a mast, a wall bracket, or directly on a wall. A weatherproof mounting bracket and pipe clamp are included in the delivery.
Technical Data:
| Manufacturer: |
Cyberbajt |
| Model: |
ProEter 10 |
| Type of Antenna: |
WiFi Omni Antenna |
| Gain: |
10dBi |
| Impedance: |
50 Ohm |
| Frequency: |
2.4 - 2.5 GHz
(IEEE 802.11 b/g/n) |
| VSWR: |
max. 1.5 |
| Polarisation: |
Vertical (Linear) |
| Beam width: |
360° Horizontal
23° Vertical
|
| Connector: |
N female |
| Appliance: |
In- and Outdoor (IP64) |
| Dimensions: |
67.5cm x 2.2cm |
| Weight: |
370g |
| Color: |
White |
| Operating Temperature: |
-20° to +60° C |
Scope of delivery
| 1 x Cyberbajt ProEter10, 2.4 GHz WiFi 10dBi Omnidirectional Antenna |
| 1 x Mounting kit with and u-clamp for 30-50mm handles |
