ALFA Networks AOA-2409TF omnidirectional WiFi antenna is designed for the 2.4 GHz frequency band (IEEE 802.11 b/g/n) and has a gain of 9dBi.
The enclosure of the antenna is made of solid fiberglass. The robust, light weight and UV resistant construction is weatherproof which makes the antanna usable for in- and outdoor appliances.
ALFA Networks AOA-2409TF omni antenna is especially designet to use with ALFA WiFi Adapter:
- ALFA Networks Tube-UN
- ALFA Networks Tube-UG
- ALFA Networks Tube-UV
- ALFA Networks Tube-2H
Technical Data:
| Manufacturer: | ALFA Networks |
| Model: | AOA-2409TF |
| Type of Antenna: | Omni Antenna |
| Gain: | 9dBi |
| Impedance: | 50 Ohm |
| Frequency: | 2,4 - 2,5 GHz (IEEE 802.11 b/g/n) |
| VSWR: | max. 2 |
| Polarisation: | Vertical (Linear) |
| Beam width: | 360° Horizontal |

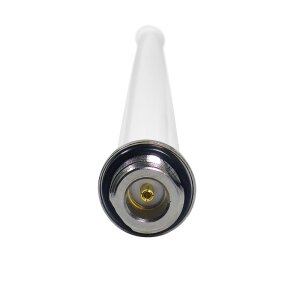

| Connector: | N female |
| Appliance: | In- and Outdoor |
| Dimensions: | 46cm x 1.7cm |
| Weight: | 100g |
| Color: | White |
Scope of delivery
| 1 x ALFA Networks AOA-2409TF, 2.4GHz 9dBi WiFi Omni Antenna |
