Ubiquiti Networks

Ubiquiti NanoStation M2 | 2.4GHz WiFi CPE, 150+ Mbps, 11 dBi

Discover the power of the Ubiquiti NanoStation M2, your reliable partner for stable and long-range WiFi connections in the 2.4 GHz band! This compact yet extremely powerful Customer Premises Equipment (CPE) has been specially designed to offer you outstanding wireless performance, whether you want to establish a Point-to-Point (PtP) connection or expand your Network in a Point-to-Multipoint (PtMP) scenario. With its integrated 11 dBi dual-polarization directional antenna and advanced 2x2 MIMO technology, the NanoStation M2 effortlessly covers distances of up to 15+ kilometers, delivering a real outdoor throughput of an impressive 150+ Mbps.

The robust, UV-stabilized plastic housing makes the NanoStation M2 the ideal device for outdoor use, even under adverse weather conditions. Thanks to the included PoE adapter and the two 10/100 Mbps Ethernet ports, installation is incredibly simple and flexible. A special highlight is the second Ethernet port with software-controlled PoE output, which is perfect for the seamless integration of IP video applications. Experience a new dimension of connectivity with the Ubiquiti NanoStation M2!


Highlights

  • Long Range: Bridges distances of up to 15+ km for extensive wireless connections.
  • High Throughput: Achieves real outdoor speeds of over 150 Mbps thanks to 2x2 MIMO technology.
  • Integrated Directional Antenna: The 11 dBi dual-polarization antenna ensures optimized signal strength and quality.
  • Flexible PoE Options: Two Ethernet ports, one with PoE output for IP video integration.
  • Robust Design: UV-stabilized housing for reliable outdoor use in extreme temperatures.

Do you have questions about the Ubiquiti NanoStation M2? Then just ask us!

92,99 €
incl. 19% VAT , plus shipping costs
Available immediately
Request Quote for Institutions & Corporates!

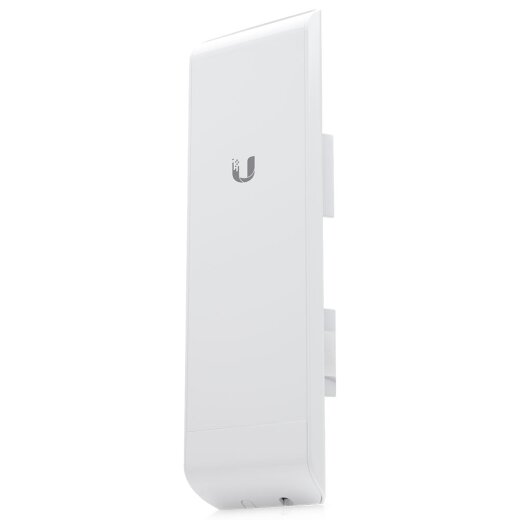

Ubiquiti NanoStation M2 outdoor wireless CPE
Ubiquiti NanoStation M2 | 2.4GHz WiFi CPE, 150+ Mbps, 11 dBi
92,99 € *

Facing Outdoor WiFi Challenges?

Do you know the problem: Your WiFi signal simply doesn't reach far enough to reliably connect remote buildings, warehouses, or outdoor areas? Conventional WiFi Routers quickly reach their limits when it comes to long distances or overcoming obstacles. This leads to unstable connections, low transmission rates, and frustrating outages that impair your productivity or user satisfaction.


The Ubiquiti NanoStation M2: Your Solution for Long-Range WiFi

The Ubiquiti NanoStation M2 is the answer to your outdoor WiFi challenges. As a high-performance 2.4 GHz WiFi CPE (Customer Premises Equipment), it was specifically designed for building robust and fast wireless bridges or for extending existing networks. With its advanced airMAX TDMA technology, it eliminates collisions and maximizes airtime efficiency, leading to significantly improved latency, higher throughput, and excellent scalability.


Technology That Impresses: Details of the NanoStation M2

At the heart of the NanoStation M2 beats a powerful Atheros MIPS 24Kc processor at 400 MHz, supported by 32 MB SDRAM and 8 MB Flash memory, ensuring smooth performance. The integrated 11 dBi dual-polarization directional antenna is perfectly tuned to the 2.4 GHz frequency band and enables impressive ranges and speeds thanks to 2x2 MIMO technology. The two 10/100 Mbps Ethernet ports offer flexible connectivity options, with the second port even providing a software-controlled PoE output for powering other devices, such as an IP camera. The device is powered via 24V Passive PoE, and the corresponding adapter is already included in the scope of delivery.


Why the NanoStation M2 is Your Best Choice

The Ubiquiti NanoStation M2 is not only a technical masterpiece but also an investment in long-term reliability. Its UV-stabilized plastic casing withstands extreme temperatures from -30°C to 75°C and humidity from 5% to 95% (non-condensing), making it ideal for year-round outdoor use. The easy installation via pole mount (included in the scope of delivery) and intuitive configuration via the airOS operating system allow for a quick and uncomplicated start. With the NanoStation M2, you create powerful, stable, and scalable WiFi connections that will exceed your expectations.


Technical Specifications

Manufacturer:Ubiquiti Networks
Model:NanoStation M2 (NSM2)
Frequency Band:2.4 GHz (2412 - 2462 MHz)
WiFi Standards:IEEE 802.11b/g/n
Antenna Type:Integrated Dual-Polarization Panel Antenna
Antenna Gain:11 dBi
MIMO Technology:2x2 MIMO
Max. Throughput:150+ Mbps (real outdoor throughput)
Range:Up to 15+ km
Processor:Atheros MIPS 24Kc, 400 MHz
RAM:32 MB SDRAM
Flash Memory:8 MB Flash
Network Interfaces:(2) 10/100 Mbps Ethernet Ports (RJ-45)
PoE Support:Passive PoE (24V)
Max. Power Consumption:5.5 W
Enclosure Material:UV-stabilized outdoor plastic
Mounting:Pole Mount (Kit included)
Operating Temperature:-30°C to 75°C
Operating Humidity:5 to 95% non-condensing
Dimensions (W x D x H):294 x 31 x 80 mm


Scope of Delivery

1 x Ubiquiti NanoStation M2 (NSM2)
1 x 24V, 0.5A PoE Adapter
1 x Pole Mount Kit
1 x Power Cord
1 x Quick Start Guide



Häufig gestellte Fragen (FAQ)


What is the main difference between the NanoStation M2 and a conventional Wi-Fi router?

The NanoStation M2 is a specialized outdoor CPE (Customer Premises Equipment) with an integrated directional antenna, designed for long-range point-to-point or point-to-multipoint Wi-Fi connections. In contrast, conventional Wi-Fi routers are typically optimized for indoor use, offering shorter range and omnidirectional coverage.


Can I use the NanoStation M2 as an Access Point?

Yes, the NanoStation M2 can be configured as both an Access Point (AP) and a Client (Station). This allows for flexible deployment scenarios, whether as a base station for multiple clients or as a receiving device in a point-to-point connection.


What range can I achieve with the NanoStation M2?

Under optimal conditions and with a clear Line-of-Sight, the NanoStation M2 can bridge distances of up to 15+ kilometers. However, the actual range can be affected by environmental factors such as obstacles or interference.


Is the NanoStation M2 suitable for outdoor use?

Absolutely! The NanoStation M2 features a robust, UV-stabilized plastic casing designed for continuous outdoor use. It is resistant to extreme temperatures from -30°C to 75°C and high humidity.


Do I need a separate PoE injector for the NanoStation M2?

No, a suitable 24V, 0.5A PoE adapter is included with the NanoStation M2, so you won't need any additional hardware for power supply.


Manufacturer information: Name: Ubiquiti Networks
Homepage: https://www.ui.com
