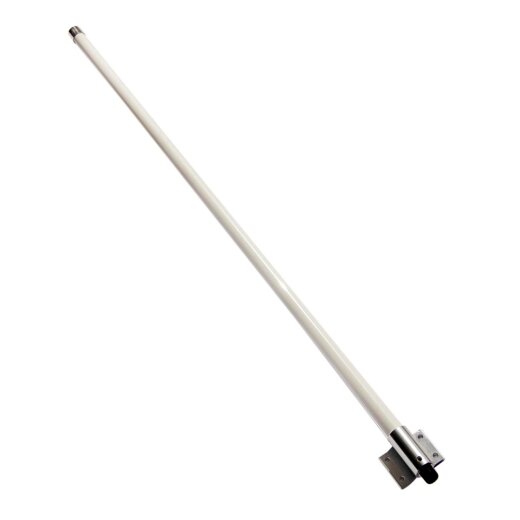

The ALFA Networks AOA-2415 2.4GHz omnidirectional antenna has a gain of 15dBi and is designed for the 2.4 GHz frequency band - The WiFi omnidirectional antenna supports the common WiFi standards IEEE802.11 b/g/n.
With the gain of 15dBi you are able to lluminate a large and wide area with a WiFi signal. The WiFi omni antenna is usually used for Wi-Fi base stations (WiFi router / access point / repeater).
The enclosure of the WiFi antenna is made of solid fiberglass. The robust, light weight and UV resistant construction is weatherproof which makes the antanna usable for in- and outdoor appliances.
The AOA-2415 has an N female socket for connecting an antenna cable / WiFi AP / Router.
Technical Data:
| Manufacturer: | ALFA Networks |
| Model: | AOA-2415 |
| Type of Antenna: | Omni Antenna |
| Gain: | 15dBi |
| Impedance: | 50 Ohm |
| Frequency: | 2.4 - 2.5 GHz (IEEE 802.11 b/g/n) |
| VSWR: | max. 1.3 |
| Polarisation: | Vertical (Linear) |
| Beam width: | 360° Horizontal |
| Connector: | N female |
| Appliance: | In- and Outdoor |
| Dimensions: | 148.5 x 6.8cm |
| Weight: | 910g |
| Color: | White |
Scope of delivery
| 1 x ALFA Networks AOA-2415, 2.4GHz 15dBi WiFi Omni Antenna |
