Your Key to Uninterrupted Connectivity

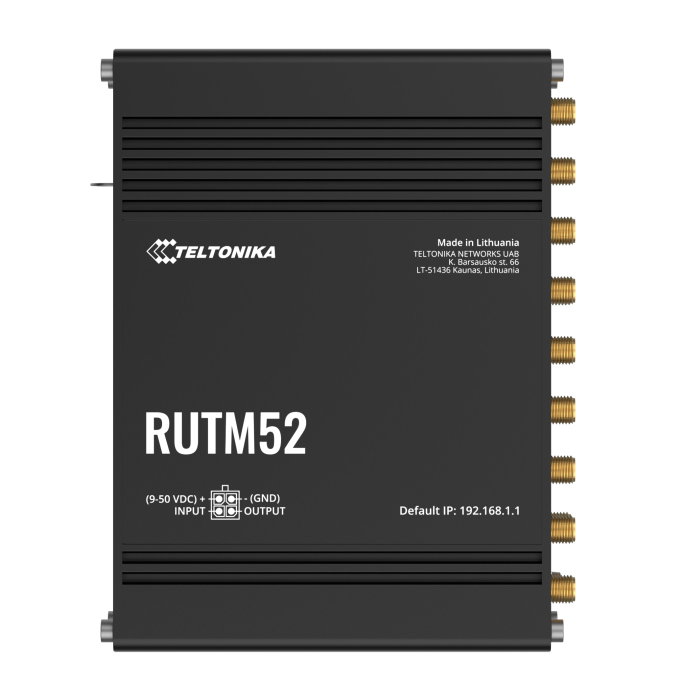

In today's industry, stable and fast connections are absolutely crucial. The Teltonika RUTM52 was developed precisely for this: It is an 4G / 5G Routers that offers you connectivity you can rely on, with its Dual-5G technology and integrated redundancy. Whether for critical infrastructures, M2M applications, or IoT projects – this router ensures that your Network always stays online, even if a connection fails.
Dual 5G Power for Maximum Performance
The RUTM52 sets new standards in terms of performance. With two independent 5G modules, you benefit from double the bandwidth and unparalleled reliability. Should one 5G module fail, the second seamlessly takes over, without you or your systems noticing. This means for you: maximum availability and lightning-fast data transmission, effortlessly handling even the most demanding applications. Experience the future of industrial connectivity with this powerful Teltonika 4G / 5G Routers.
Security and Management at the Highest Level
Your data is valuable, and the RUTM52 protects it. Equipped with comprehensive security features such as an advanced firewall and various VPN protocols (OpenVPN, IPsec, PPTP, L2TP), this Industrial Router ensures secure and private communication. Management becomes a breeze thanks to the Teltonika Remote Management System (RMS), with which you can monitor and configure your device fleet from anywhere. This way, you always have full control over your Network.
Robustness for Every Challenge
The Teltonika RUTM52 is no ordinary router. It is a true workhorse, built for the harshest industrial environments. Its robust aluminum housing protects the sensitive electronics from dust, vibrations, and extreme temperatures from -40°C to 75°C. Whether in production halls, on construction sites, or in vehicles – this router delivers consistently reliable performance where others would have long given up. The flexible mounting options (DIN rail, wall mounting) allow for easy integration into existing infrastructures.
Strengths & Notes at a Glance
- Pro: Dual 5G for highest bandwidth and unparalleled reliability.
- Pro: Ultimate redundancy through two independent cellular modules.
- Pro: Robust design and wide temperature range for industrial environments.
- Pro: Extensive security and VPN functions to protect your data.
- Pro: Easy management and monitoring via Teltonika Remote Management System (RMS).
- Note: For optimal 5G performance in certain environments, external antennas may be required.
- Note: Full utilization of the Dual-5G function requires the use of two active SIM cards.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | RUTM52 |
| Product Type: | Industrial Router |
| Cellular: | Dual 5G (SA/NSA), 4G Cat 20 |
| WiFi: | No integrated WiFi |
| Ethernet: | 4 x Gigabit Ethernet (LAN/WAN configurable) |
| SIM Slots: | 2 x Nano-SIM (for each 5G module) |
| Antenna Connectors: | 4 x SMA (5G), 2 x SMA (4G/GNSS) |
| Processor: | Quad-Core ARM Cortex A7 |
| Memory: | 256 MB Flash, 256 MB RAM |
| Power Supply: | 9-50 VDC, 4-pin Industrial DC Socket |
| Operating Temperature: | -40°C to 75°C |
| Housing: | Robust Aluminum |
| Mounting: | DIN rail, Wall mounting |
| Dimensions (WxDxH): | approx. 110 x 50 x 100 mm |
| Weight: | 0.7 kg |
| Special Features: | GNSS (GPS, GLONASS, BeiDou, Galileo), RMS Support |
| Protocols: | MQTT, Modbus TCP, SNMP, TR-069 |
| Security: | Firewall, VPN (OpenVPN, IPsec, PPTP, L2TP, SSTP, Stunnel) |
| Software: | RutOS (OpenWrt based) |
| EAN: | 4779051841493 |
Scope of Delivery
| 1 x Teltonika RUTM52 Industrial Router |
| 4 x 5G Magnetic Base Antennas |
| 2 x 4G/GNSS Magnetic Base Antennas |
| 1 x 4-pin DC Connection Cable |
| 1 x Ethernet Cable |
| 1 x QSG (Quick Start Guide) |
Frequently Asked Questions (FAQ)
What is the Teltonika Networks RUTM52?
The Teltonika Networks RUTM52 is a high-performance industrial router designed for critical applications, offering dual 5G connectivity and ultimate redundancy.
What are the main features of the RUTM52?
Key features include dual 5G cellular modules for maximum speed and redundancy, robust construction for industrial environments, advanced security features, and versatile connectivity options.
How does the RUTM52 ensure ultimate redundancy?
The RUTM52 achieves ultimate redundancy through its dual 5G modules, which can be used simultaneously or as a failover solution, as well as through multiple WAN options and advanced VPN functions.
For which applications is the RUTM52 particularly suitable?
The RUTM52 is ideal for applications requiring extremely reliable and fast connectivity, such as industrial automation, critical infrastructures, Smart City projects, and transportation.
Does the RUTM52 also support 4G networks?
Yes, the Teltonika RUTM52 is backward compatible and supports 4G (LTE) and earlier cellular standards in addition to 5G, ensuring broad network coverage and flexibility.
What advantages does a dual 5G industrial router like the RUTM52 offer?
A dual 5G industrial router offers advantages such as increased bandwidth, lower latency, improved reliability through redundant connections, and the ability to use two different mobile network providers simultaneously.
