Is Your Network at Its Limit?
Do you know the feeling when your network falters with many devices or bandwidth-intensive applications? Old routers often can't keep up with the demands of modern smart homes or small offices that constantly need to process growing amounts of data. Gaming lags, 4K streaming buffering, or slow downloads are frustrating everyday problems that severely impact your productivity and entertainment experience. It's time for a solution that not only keeps up but delivers the future today.

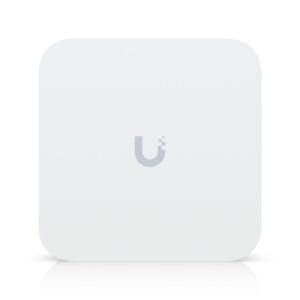

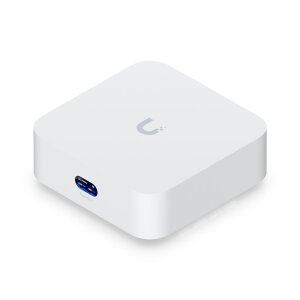

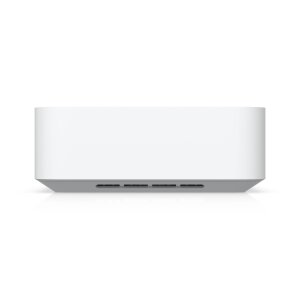

The UniFi Express UX 7: Your Gateway to Network Revolution
The Ubiquiti UniFi Express UX 7 is more than just a router – it's your central nervous system for an intelligent, fast, and secure network. As a Cloud Gateway with an integrated WiFi 7 Access Point and UniFi OS Console, it offers unparalleled performance and control. Featuring the latest WiFi 7 (802.11be) technology and tri-band capability (2.4 GHz, 5 GHz, 6 GHz), the UX 7 achieves an aggregated wireless throughput of up to 10.7 Gbps, ensuring even the most demanding applications run smoothly. Whether you're streaming high-resolution content, gaming online, or transferring large amounts of data – the UniFi Express UX 7 delivers the speed you need.
Maximum Performance, Minimum Complexity

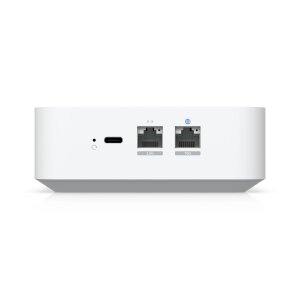

The UniFi Express UX 7 impresses not only with its remarkable speed but also with its versatility and ease of use. With a 10 Gbps RJ45 WAN port and a 2.5 Gbps RJ45 LAN port, it's perfect for multi-gigabit internet connections and connecting high-performance devices. The powerful Quad-Core ARM Cortex-A53 processor at 1.5 GHz and 3 GB of system memory ensures smooth management of up to 30 UniFi devices and over 300 clients simultaneously. Thanks to its compact desktop form factor and intuitive 0.96-inch status display, the UX 7 seamlessly integrates into any environment and can be easily set up and managed via the UniFi Network App.
Security and Flexibility for Your Digital Life
Your network security is a top priority. The Ubiquiti UniFi Express UX 7 offers a comprehensive suite of security features, including a Stateful Firewall, a Layer 7 Application-Aware Firewall, and an Intrusion Prevention System (IPS/IDS) with over 20,000 signatures. Additionally, it supports license-free SD-WAN functionalities and various VPN options such as Site-to-Site VPN, IPsec, OpenVPN, and Teleport Zero-Configuration VPN, enabling secure remote access and flexible network architectures. Whether as a standalone router, wired access point, or wireless mesh node – the UX 7 adapts to your needs and seamlessly extends your Wi-Fi coverage over an area of up to 160 m². Experience a network that is not only fast and secure but also grows with your demands.
Technical Specifications
| Manufacturer: | Ubiquiti |
| Model: | UniFi Express UX 7 |
| MPN: | UX7 |
| EAN: | 0810010074300 |
| Wi-Fi Standard: | WiFi 7 (802.11be), backward compatible with WiFi 6/6E, 802.11a/b/g/n/ac/ax |
| Frequency Bands: | Tri-Band (2.4 GHz, 5 GHz, 6 GHz) |
| Max. Throughput 2.4 GHz: | 688 Mbps |
| Max. Throughput 5 GHz: | 4.3 Gbps |
| Max. Throughput 6 GHz: | 5.7 Gbps |
| Aggregated Throughput: | Up to 10.7 Gbps (Over-the-Air) |
| MIMO: | 2x2 (DL/UL MU-MIMO) per band |
| Antenna Gain 2.4 GHz: | 4 dBi |
| Antenna Gain 5 GHz: | 7 dBi |
| Antenna Gain 6 GHz: | 6 dBi |
| WAN Ports: | (1) 10 Gbps RJ45 |
| LAN Ports: | (1) 2.5 Gbps RJ45 |
| Processor: | Quad-core ARM® Cortex®-A53 (1.5 GHz) |
| System Memory: | 3 GB |
| Managed UniFi Devices: | 30+ |
| Concurrent Clients: | 300+ |
| IDS/IPS Throughput: | 2.3 Gbps |
| Coverage Area: | Up to 160 m² |
| Display: | 0.96 inch Status Display |
| Power Supply: | USB Type-C (5V DC/5A) |
| Max. Power Consumption: | 22W |
| Enclosure Material: | Polycarbonate |
| Dimensions (WxDxH): | 117 x 117 x 42.5 mm |
| Operating Temperature: | -10 to 40° C |
| Humidity: | 5 to 95% non-condensing |
Package Contents
| 1 x Ubiquiti UniFi Express UX 7 |
| 1 x USB-C Power Adapter |
| 1 x Quick Start Guide |
| 1 x Set of Rubber Feet |
Häufig gestellte Fragen (FAQ)
What is the main difference between the UniFi Express UX 7 and older UniFi Express models?
The UniFi Express UX 7 is a significant advancement with integrated WiFi 7 (802.11be) standard, a 10 Gbps RJ45 WAN port, and a 2.5 Gbps RJ45 LAN port. Older models, such as the original UniFi Express (UX), typically only supported WiFi 6 and Gigabit Ethernet ports. The UX 7 also offers a higher capacity for managed UniFi devices (30+) and concurrent clients (300+).
Can I use the UniFi Express UX 7 as a dedicated Access Point in an existing UniFi network?
Yes, the UniFi Express UX 7 is extremely versatile. You can use it either as a standalone Cloud Gateway (router & controller) for smaller setups or integrate it as a dedicated Access Point into an existing UniFi network to seamlessly extend your Wi-Fi range.
What security features does the UniFi Express UX 7 offer?
The UniFi Express UX 7 is equipped with comprehensive security features, including a Stateful Firewall, an Application-Aware Layer 7 Firewall, Deep Packet Inspection (DPI), an Intrusion Prevention System (IPS/IDS) with over 20,000 signatures, Content Filtering, and Ad Blocking. It also supports VLAN/Subnet-based traffic segmentation and various VPN options.
How many UniFi devices and clients can the UniFi Express UX 7 manage?
The UniFi Express UX 7 is designed to manage over 30 UniFi devices (such as access points, switches, or cameras) and support more than 300 concurrent clients. This makes it a robust solution for growing network demands in small businesses or demanding home environments.
Is the UniFi Express UX 7 equipped with SD-WAN and VPN functionalities?
Absolutely! The UniFi Express UX 7 offers license-free SD-WAN functionalities and supports a variety of VPN options, including Site-to-Site VPN (Site Magic, IPsec, OpenVPN, WireGuard, L2TP) and Teleport Zero-Configuration VPN. This enables secure and flexible remote access as well as easy networking of distributed locations.
