The Teltonika RUTX50 is a future-proof router offering 5G communication for fast and data-intensive applications. The RUTX50 can be easily used in both industrial and private environments and impresses with its excellent hardware design and extensive range of functions. Dual-SIM with auto-failover, backup WAN, and other switching scenarios. Ultra-high mobile network speeds of up to 3.3 Gbps. Backward compatible with LTE (CAT20) and 3G network technologies.
WiFi Access Point / Gigabit Ethernet Switch
With the integrated 802.11ac / Wave2 WiFi access point, data rates of up to 867 Mbps are available. Additionally, the RUTX50 features an integrated 5-port gigabit Ethernet switch, allowing quick and easy connection of devices via wireless or wired connections.

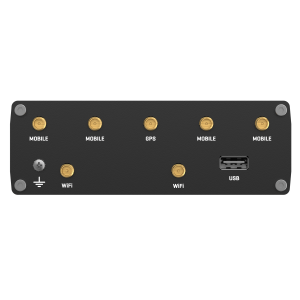

External Antenna Ports
In addition, the Teltonika RUX50 5G router has four external 5G or LTE antenna ports (SMA), two external WiFi antenna ports (RP-SMA), and one GPS (SMA) antenna port. This allows the use of external antennas to assist in weak signal areas.
Fallback Function
If no LTE or 5G signal is available, you can alternatively use the Teltonika RUX50 router as a DSL router thanks to the available WAN port. With the integrated fallback function, the Teltonika RUTX50 can be configured to automatically switch to a predefined wired connection in the event of a mobile network failure. Conversely, in the event of a wired connection failure (e.g., fiber optic), the RUTX50 5G router automatically switches to a mobile data connection. This ensures a nearly fail-safe connection.
OpenVPN / DDNS
The RUTX50 natively supports OpenVPN in both client and server scenarios. Additionally, more than 25 DynDNS providers are preconfigured. This makes the RUTX50 extremely flexible in its possible applications.
Web Interface
The RUTX50 comes with RutOS, which offers advanced security features and specialized industrial protocols for a wide range of professional application scenarios and is compatible with the Remote Management System (RMS).
Consistent Performance
The robust aluminum housing, solid technology, and mature firmware ensure consistent performance and a long lifespan for the Teltonika RUTX50 router.
Technical Data:
| Manufacturer / Model: |
TELTONIKA / RUTX50 |
| Services: |
Router, NAT Router, Bridge |
| Processor: |
Quad-core ARM Cortex A7, 717 MHz |
| Memory: |
256MB, DDR3 |
| FLASH Memory: |
256MB SPI Flash |
| Frequency Bands: |
5G NR NSA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
5G NR SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28
4G (LTE-TDD): B38, B40, B41, B42, B43
3G: B1, B5, B8 |
| 5G Transfer Rates - 4x4 MIMO / 2x2 MIMO: |
Download SA: 2.1 Gbps
Download NSA: 3.3 Gbps
Upload: 900 / 600 Mbps |
| LTE Transfer Rates: |
Download: 2 Gbps (CAT20)
Upload: 200 Mbps |
| LTE / 5G Antenna: |
4 x Omnidirectional Antenna (SMA) |
| GPS: |
GPS, GLONASS, BeiDou, Galileo, QZSS |
| WiFi: |
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11s / 802.11r |
| Security: |
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| WiFi Antenna: |
2 x Dual-band Omnidirectional Antenna (RP-SMA) |
| Services: |
NAT, DHCP Server/Client, Virtual Server, Port Forwarding, QOS, DMZ Host, Firewall with IP, MAC, and Domain Filtering, OpenVPN, PPTP, L2TP, IPsec, VRRP, GRE Tunnel, SMS Control, DynDNS, RMS support, Input Triggers, Samba Share, Load Balancer |
| Interfaces: |
1 x USB 2.0 (A) |
| SIM Interface: |
2 x Standard Mini-SIM Card Slot |
| WAN Interface: |
1 x 10/100/1000 Mbps WAN/LAN Ports |
| LAN Interface: |
4 x 10/100/1000 Mbps Ports (Auto MDI-X, Auto-Negotiation) |
| Power Supply: |
9-50V |
| Power Consumption: |
max. 18W |
| Application Area: |
Indoor |
| E-Mark: |
Yes |
| Dimensions: |
13.2 x 9.5 x 4.4 cm |
| Housing: |
Aluminum |
| Weight: |
533g |
| Operating Environment: |
-40°C to +75°C |
| Humidity Range: |
10% ~ 90% non-condensing |
Package Contents:
| 1 x TELTONIKA RUTX50 Dual-SIM 5G Router |
| 4 x 3dBi LTE / 5G Antenna (SMA) |
| 2 x Dual-band WiFi Antenna (RP-SMA) |
| 1 x GPS Antenna (SMA) |
| 1 x 1m CAT5e Network Cable |
| 1 x 12V/2A EU Steckernetzteil |
| 1 x Quick installation guide |
