Your WiFi, Your Rules: Limitless Coverage Indoors & Outdoors

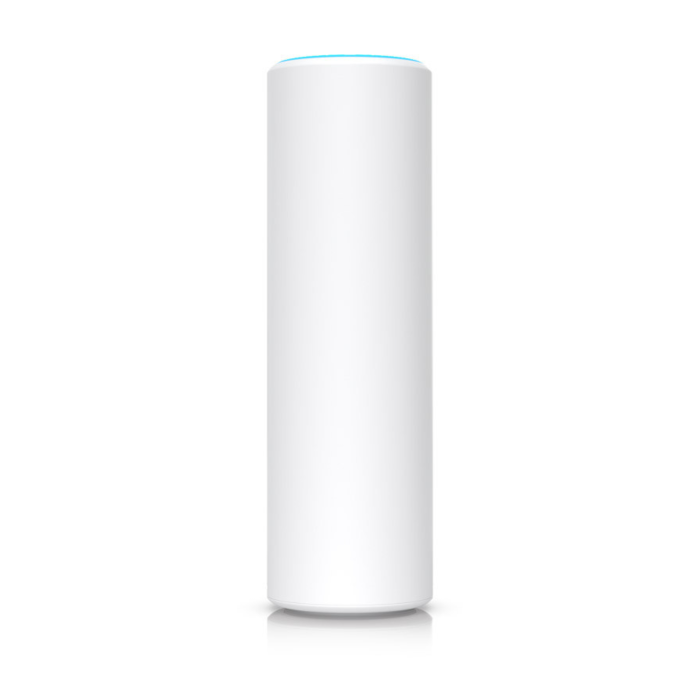

The Ubiquiti U6-Mesh redefines where strong WiFi can be available. Its sleek, modern design makes it an unobtrusive addition to any desk or shelf. But its true strength lies in its robustness: with IPX5 weather protection class, it is well protected against jet water and ready for outdoor use. Effortlessly extend your Network to the patio, garden, or workshop. Thanks to the included mounting brackets, you can flexibly mount it on a wall or a pole, bringing coverage exactly where you need it.
Wi-Fi 6 Performance that Makes a Difference
Underneath the elegant exterior lies state-of-the-art WiFi technology. As a Wi-Fi 6 Access Point, the U6-Mesh utilizes features like OFDMA to send data to multiple clients simultaneously and highly efficiently. At its heart is powerful 4x4 MU-MIMO on the 5 GHz band, which not only ensures lightning-fast connections to your end devices but also creates an extremely stable base for wireless Mesh uplinks to other UniFi Access Points. This allows you to expand your UniFi Network with U6-Mesh without having to lay a single new cable. With an aggregated data rate of up to 5.3 Gbps and capacity for over 300 clients, it is prepared for the most demanding environments.
Built for the Professional UniFi Ecosystem
The U6-Mesh is more than just an Access Point – it is an integral part of the UniFi ecosystem. Setup and management are centrally handled via the intuitive UniFi Network Application (requires e.g. a UniFi OS Console, a Cloud Key, or a server installation). Here you configure everything from guest networks and VLANs to advanced security features like WPA3. Benefit from professional features like Fast Roaming for seamless transitions between Access Points and detailed insights into your Network's performance. The U6-Mesh is the perfect choice for anyone looking for a reliable, scalable, and professionally manageable WiFi solution.
Strengths & Notes at a Glance
- Pro: Extremely flexible in placement thanks to slim design and IPX5 weather protection for indoor and outdoor use.
- Pro: Strong Mesh performance with Wi-Fi 6, 4x4 MU-MIMO and OFDMA for high capacity and stable wireless uplinks.
- Pro: High client capacity for over 300 simultaneous connections, ideal for high-density environments.
- Pro: Excellent value for money compared to other outdoor-capable Wi-Fi 6 Access Points.
- Note: Requires the UniFi Controller ecosystem for configuration and management; not suitable for laypersons as a standalone device.
- Note: Can become noticeably warm during operation, which should be considered when choosing the mounting location.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi 6 Mesh (U6-Mesh) |
| EAN / GTIN: | 0810010078278 |
| Manufacturer Part Number / MPN: | U6-Mesh |
| Product Type: | WiFi Access Point |
| Dimensions: | Ø 48.5 x 159.5 mm |
| Weight: | 400 g |
| Housing Material: | Polycarbonate, Aluminum |
| Mounting Material: | Polycarbonate |
| Weather Protection Class: | IPX5 (Protection against jet water) |
| Network Interface: | (1) Gigabit Ethernet RJ45 Port |
| Management Interface: | Ethernet, Bluetooth |
| Power Supply: | Power over Ethernet (PoE) |
| Supported PoE Standard: | 802.3af PoE |
| Supported Voltage Range: | 44–57V DC |
| Max. Power Consumption: | 11.4 W |
| PoE Injectors / Power Supplies Included: | Yes (48V, 0.32A Gigabit PoE Injectors / Power Supplies) |
| Button: | Factory Reset |
| LED Indicator: | System Status (White/Blue) |
| Supported Clients: | 300+ |
| Theoretical Coverage: | approx. 140 m² |
| WiFi Standard: | Wi-Fi 6 (802.11ax) |
| Backward Compatibility: | 802.11a/b/g/n/ac |
| Frequency Bands: | 2.4 GHz / 5 GHz |
| MIMO (5 GHz): | 4x4 MU-MIMO and OFDMA |
| MIMO (2.4 GHz): | 2x2 MIMO |
| Max. Data Rate (5 GHz): | 4.8 Gbps |
| Max. Data Rate (2.4 GHz): | 573.5 Mbps |
| Aggregated Data Rate: | up to 5.3 Gbps |
| Antenna Gain (5 GHz): | 5 dBi |
| Antenna Gain (2.4 GHz): | 3 dBi |
| Max. Transmit Power (5 GHz): | 26 dBm |
| Max. Transmit Power (2.4 GHz): | 22 dBm |
| WiFi Security: | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID per Radio: | 8 |
| Management Software: | UniFi Network Controller (v6.0.45+), UniFi OS Console |
| VLAN Support: | 802.1Q |
| Advanced QoS: | Per-User Rate Limiting |
| Guest Network Isolation: | Supported |
| Operating Temperature: | -30 to 60° C |
| Operating Humidity: | 5 to 95 % non-condensing |
| Certifications: | CE, FCC, IC |
| NDAA Compliance: | Yes |
Scope of Delivery
| 1 x Ubiquiti UniFi U6-Mesh Access Point |
| 1 x Gigabit PoE Injectors / Power Supplies (48V, 0.32A) |
| 1 x Mounting Accessories for wall, pole, and table installation |
Frequently Asked Questions (FAQ)
Can the Ubiquiti U6-Mesh be used outdoors?
Yes, the U6-Mesh is IPX5 weatherproof and can be installed outdoors. It is protected against water jets from all directions, making it ideal for patios, gardens, or other outdoor areas, enhancing your Network with a robust UniFi Access Point.
Does the U6-Mesh require a PoE Switch or is a power adapter included?
The U6-Mesh is powered via Power over Ethernet (PoE). A suitable 802.3af Gigabit PoE Injector / Power Supplies is included in the scope of delivery, so you don't necessarily need a UniFi Switch or other Ethernet Switch to operate the device.
What is the main difference between the U6-Mesh and the U6-Pro?
The main difference lies in the form factor and primary use case. The U6-Mesh is a slim, flexible UniFi Access Point for indoor and outdoor use, focusing on mesh applications. The U6-Pro is a larger, disc-shaped UniFi Access Point optimized for indoor ceiling mounting, aiming for maximum performance in high-density Network environments.
Can I use the U6-Mesh as a standalone Access Point without other UniFi devices?
No, not in the traditional sense. You always need the UniFi Network Controller Software for setup and management of your UniFi Access Points. While this can run for free on a PC, a UniFi OS Console (such as UDM or Cloud Key) is recommended for permanent and convenient use.
Does the U6-Mesh support the latest WiFi security standard WPA3?
Yes, the U6-Mesh supports WPA3-Enterprise and WPA3-PSK, as well as the older WPA2 and WPA standards, enabling a secure yet compatible WiFi Network configuration for your WiFi Access Points.
Is the U6-Mesh backward compatible with older WiFi devices?
Yes, the U6-Mesh is fully backward compatible with older WiFi standards like Wi-Fi 5 (802.11ac) and Wi-Fi 4 (802.11n). Older devices can connect without issues to your WiFi Access Points but will not benefit from the advantages of Wi-Fi 6.
