The Teltonika RUTM31 is a powerful industrial 5G router specifically developed for demanding applications in areas such as industrial automation, transportation, energy management and IoT. It supports 5G Sub 6 GHz in both SA and NSA modes and achieves impressive download speeds of up to 2.6 Gbps and uploads of up to 1 Gbps. Thanks to its backward compatibility with 4G LTE Cat 12 offering up to 600 Mbps in downlink and 3G networks, the RUTM31 ensures stable connections even in areas where 5G is not yet available. The integrated dual SIM function with automatic failover and backup WAN provides fail-safe connectivity and protects against interruptions caused by network switching, signal loss or data limit exceedance.
The RUTM31 features two Gigabit Ethernet ports and fast dual band Wi Fi with Wi Fi 5 including MU MIMO technology. It supports up to 150 simultaneous Wi Fi connections, while modern security features such as WPA3, fast roaming via 802.11r and mesh connectivity via 802.11s ensure maximum reliability. An integrated QR code generator allows for especially easy Wi Fi configuration for end users. This combination of performance and user-friendliness makes the RUTM31 the ideal solution for a wide range of professional applications.
For secure communication, the Teltonika RUTM31 supports numerous VPN protocols such as OpenVPN, IPsec, WireGuard and L2TP. It also offers full support for industrial protocols such as Modbus, MQTT and SNMP, making it easy to integrate into existing automation and monitoring systems. The RutOS operating system, based on OpenWRT, offers a variety of advanced networking features and enables centralized remote management, monitoring and configuration in combination with the Teltonika Remote Management System.
Extensive VPN SupportThe RUTM31 natively supports OpenVPN, WireGuard and IPsec. Through the integrated package manager, support for Tailscale, TincVPN, ZeroTier and others can also be installed quickly and flexibly.
Web InterfaceThe RUTM31 comes with RutOS, which provides advanced security functions and specific industrial protocols for a wide range of professional applications and is compatible with the Remote Management System (RMS).

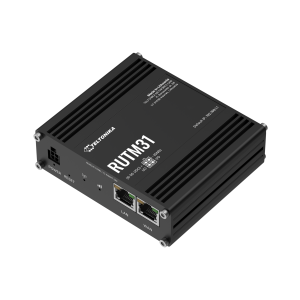

Consistent PerformanceThe rugged aluminum housing, solid technology and mature firmware ensure consistent performance and long lifespan of the Teltonika RUTM31 router.
Technical Specifications:
| Manufacturer / Model: | Teltonika / RUTM31 |
| Functions: | Router, NAT Router, Bridge |
| Processor: | MediaTek, Dual-core, 880 MHz, MIPS1004KC |
| Memory: | 256MB, DDR3 |
| Flash Memory: | 16MB serial NOR flash, 256MB serial NAND flash |
| Frequency Bands: |
5G NR NSA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 5G NR SA: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 4G LTE FDD: B1, B3, B5, B7, B8, B20, B28 4G LTE TDD: B38, B40, B41, B42, B43 3G: B1, B5, B8 |
| 5G Transfer Rates - 4x4 MIMO / 2x2 MIMO: | Download SA: 2 Gbps Download NSA: 2.6 Gbps Upload: up to 1000 Mbps |
| LTE Transfer Rates: | Download: 600 Gbps (CAT12) Upload: 150 Mbps |

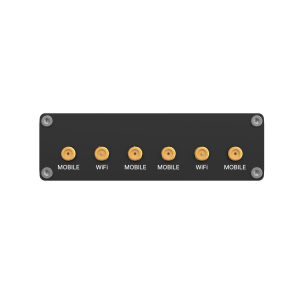

| LTE / 5G Antenna: | 4 x omnidirectional antenna (SMA) |
| Wi Fi: | IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11s / 802.11r |
| Security: | WPA3 EAP, WPA3 SAE, WPA2 Enterprise PEAP, WPA2 PSK, WEP; AES CCMP, TKIP, Auto Cipher modes, client separation |
| Wi Fi Antenna: | 2 x dual band omnidirectional antenna (RP SMA) |
| Services: | NAT, DHCP Server/Client, Virtual Server, Port Forwarding, QOS, DMZ Host, Firewall with IP, MAC and Domain Filter, OpenVPN, PPTP, L2TP, IPsec, VRRP, GRE Tunnel, SMS Control, DynDNS, RMS support, Input Triggers, Samba Share, Load Balancer |
| SIM Interface: | 2 x standard mini SIM card slot |

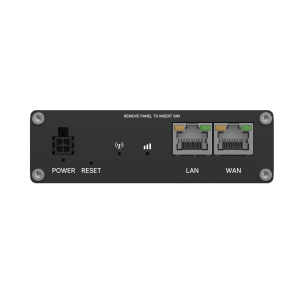

| WAN Interface: | 1 x 10 100 1000Mbit WAN LAN port |
| LAN Interface: | 1 x 10 100 1000Mbit port (Auto MDI X, Auto Negotiation) |
| Power Supply: | 9 to 50V |
| Power Consumption: | max. 9W |
| Application Area: | Indoor |
| E Mark: | Yes |
| Dimensions: | 100 x 30 x 93.7 mm |
| Housing: | Aluminum |
| Weight: | 319g |
| Operating Temperature: | -40°C to +75°C |
| Humidity: | 10% to 90% non condensing |
Scope of Delivery:
| 1 x Teltonika RUTM31 5G Router |
| 4 x 3dBi LTE / 5G antenna (SMA) |
| 2 x dual band Wi Fi antenna (RP SMA) |
| 1 x 1m CAT5e network cable |
| 1 x 12V 2A EU plug power supply |
| 1 x Quick Start Guide (English) |
