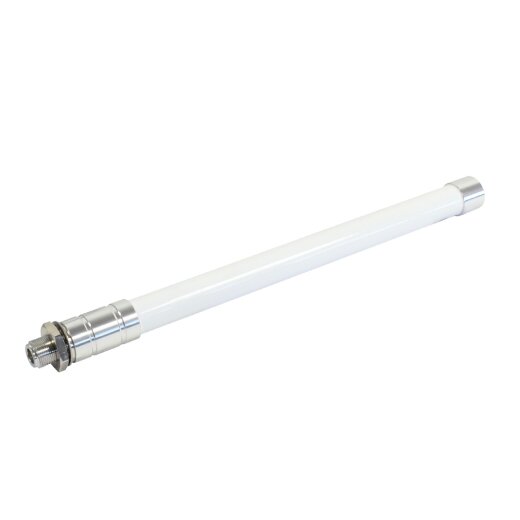

868 MHz LoRa / Helium Omni Antenna, Outdoor, 5dBi
The 868 MHz (EU868) LoRa antenna features a robust, durable housing and a gain of 5dBi. The omnidirectional antenna is specifically designed for the frequency range of 860 - 880 MHz, providing omnidirectional coverage. With a vertical beamwidth of 32°, the antenna is particularly suitable for higher position installations, ensuring comprehensive area coverage. It is ideal for applications such as Helium mining and is compatible with all available miners as well as LoRa, LoRaWAN, Sigfox, XBee, RFID, and Z-WAVE.

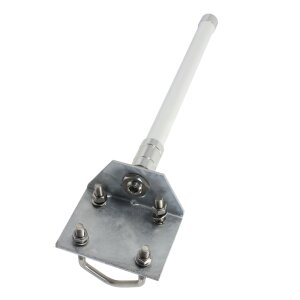

The omnidirectional LoRa antenna is made from durable, weatherproof, and UV-resistant plastic, making it an excellent choice for outdoor use, capable of withstanding all weather conditions. It is designed for mounting on a mast or wall bracket; the necessary mounting accessories are included. Suitable antenna cables and wall brackets can be found under accessories.

44,99 €
incl. 19% VAT , plus shipping costs
Currently out of stock

Technical Data:

Manufacturer / Model: Allnet / ANT-868-5dbi-OMNI
Type of Antenna: Omni Antenna
Gain: 5dBi
Impedance: 50 Ohm
Frequency: 860 - 880 MHz
VSWR: max. 1.5
Polarisation: Vertical (Linear)

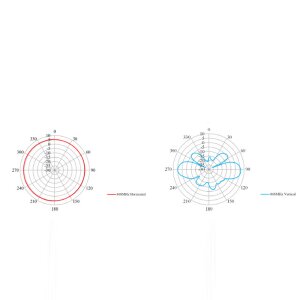

Beam width: 360° Horizontal
32° Vertical
Connector: N female
Appliance: In- and Outdoor
Dimensions: 60cm x 2.0cm
Color: Grey / White
Operating Temperature: -45 bis +75°C
Max Windload: 180 km/h
Weight: 0.65kg

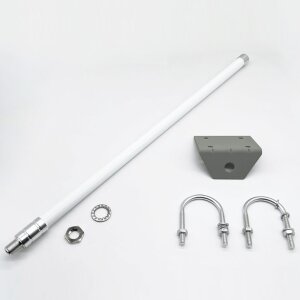

Scope of delivery

1 x 868MHz LoRa Omni Antenna, 5dBi
1 x Mounting kit
