The Problem: Unstable Connectivity in Harsh Environments?
In industrial settings, transportation, or decentralized IoT applications, a reliable internet connection is often a real challenge. Conventional routers are frequently not robust enough for extreme conditions such as temperature fluctuations, vibrations, or dust, leading to failures that can result in costly downtime and data loss. However, a stable and secure connection is essential for monitoring, controlling, and ensuring the smooth operation of your systems.
The Solution: The Teltonika RUT241 Industrial LTE Router
The Teltonika RUT241 is precisely designed for these challenges. This compact LTE router offers you an extremely robust and reliable solution for your connectivity needs. With its durable aluminum casing and the ability to operate in a wide temperature range from -40 °C to +75 °C, it withstands even the most extreme conditions. This ensures that your applications are always online, no matter where they are located.
Details That Make the Difference: Performance and Flexibility
The RUT241 shines with a powerful LTE Cat 4 connection, enabling fast data rates of up to 150 Mbps download and 50 Mbps upload. Thanks to the integrated 2.4 GHz WLAN Access Point (WiFi 4), you can easily connect multiple devices wirelessly. The two 10/100 Mbps Ethernet ports (1x WAN/LAN, 1x LAN) offer additional flexibility for wired connections. A special highlight is the automatic WAN failover, which seamlessly switches to an alternative connection in case of a primary connection failure, guaranteeing maximum availability.
Your Advantage: Easy Management and Maximum Security
With the Teltonika RUT241, you benefit from easy installation and intuitive configuration via the user-friendly web interface. Full compatibility with the Teltonika Remote Management System (RMS) allows you to centrally monitor and manage your entire router fleet from anywhere in the world. Extensive security features such as VPN (OpenVPN, IPsec, WireGuard) and an integrated firewall reliably protect your data. The RUT241 is the ideal choice for anyone looking for a powerful, secure, and low-maintenance LTE router solution for professional applications.
Technical Specifications
| Manufacturer: | Teltonika Networks |
| Model: | RUT241 |
| Device Type: | Industrial LTE Router |
| Mobile Standard: | LTE Cat 4, 3G, 2G |
| LTE Download Rate (max.): | 150 Mbps |
| LTE Upload Rate (max.): | 50 Mbps |
| WLAN Standard: | IEEE 802.11b/g/n (WiFi 4) |
| WLAN Frequency: | 2.4 GHz |

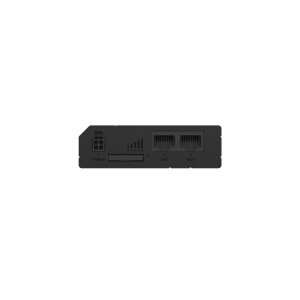

| Ethernet Ports: | 2 x RJ45 (1x WAN/LAN, 1x LAN), 10/100 Mbps |
| SIM Slots: | 1 x external SIM card holder (Mini-SIM) |
| CPU: | MediaTek MIPS 24Kc, 580 MHz |
| RAM: | 128 MB DDR2 |
| Flash Memory: | 16 MB SPI Flash |
| Operating System: | RutOS (OpenWrt-based Linux OS) |
| Power Supply: | 9 – 30 VDC, 4-pin industrial socket |
| Power Consumption (max.): | < 6.5 W |
| Operating Temperature: | -40 °C to +75 °C |
| Humidity: | 10 % to 90 % non-condensing |
| Protection Rating: | IP30 |
| Housing Material: | Aluminum |
| Dimensions (W x H x D): | 83 mm x 25 mm x 74 mm |
| Mounting Options: | DIN rail (bottom and side) |
Scope of Delivery
| 1 x Teltonika RUT241 Industrial LTE Router |
| 1 x 9W Power Supply (Euro Plug) |

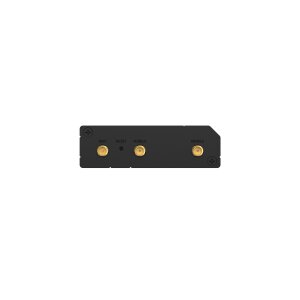

| 2 x LTE Antennas (SMA Connector) |
| 1 x WLAN Antenna (RP-SMA Connector) |
| 1 x Ethernet Cable (1.5 m) |
| 1 x SIM Adapter Kit |
| 1 x Quick Start Guide (QSG) |
Häufig gestellte Fragen (FAQ)
What is the main difference between the Teltonika RUT241 and its predecessor RUT240?
The Teltonika RUT241 is an optimized version of the RUT240. It offers an improved CPU (MediaTek MIPS 24Kc, 580 MHz) and more RAM (128 MB), leading to smoother performance and a more intuitive user interface. Additionally, it features an external SIM card holder for easier handling and is available in an eSIM-capable variant.
What speeds can the Teltonika RUT241 achieve over LTE?
The Teltonika RUT241 supports LTE Cat 4, achieving maximum download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps. Actual speeds may vary depending on network coverage and provider.
Is the Teltonika RUT241 suitable for outdoor use?
The RUT241 features a robust aluminum casing and an IP30 protection rating, shielding it from dust and small foreign objects. It is designed for a wide temperature range from -40 °C to +75 °C. However, due to its IP30 certification, it is not primarily intended for direct outdoor use without additional protection (e.g., in a weatherproof enclosure), as it is not waterproof.
Can I power the Teltonika RUT241 via PoE?
Yes, the Teltonika RUT241 supports passive PoE over unused wire pairs. This is available from hardware revision 0007 and batch number 0010. Note that this is not compatible with IEEE802.3af/at/bt standards, but rather represents a passive PoE solution.
Which VPN protocols does the Teltonika RUT241 support?
The Teltonika RUT241 offers comprehensive VPN support. It handles common protocols such as OpenVPN, IPsec, PPTP, L2TP, WireGuard, and ZeroTier to ensure secure and encrypted data communication.
Homepage: https://teltonika-iot-group.com/
