Your Turbo for Rural Areas: No More Dead Zones!

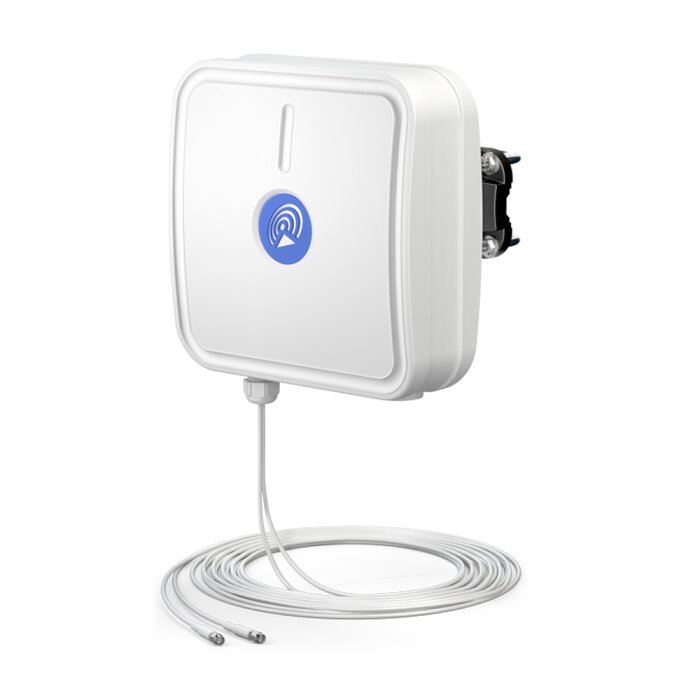

Do you live in a region with notoriously poor mobile reception? The QuWireless APLM2-H is your solution! This powerful 4G Directional Antenna has been specially developed to precisely capture and amplify even the weakest 4G signal. Imagine finally being able to stream smoothly, conduct video conferences without interruptions, and upload and download large files at lightning speed. By precisely aligning it with the nearest cell tower, you get the maximum out of your connection and transform your home Network into a true broadband hub.
Signal Optimization Made Easy: Your Router Breathes a Sigh of Relief!
Walls, windows, and ceilings are true signal robbers. If your router inside the building only receives a weak signal, it's time for an external solution. The QuPanel 4G HP is simply mounted outdoors on a wall or pole. There, where the signal is strongest, it captures it and transmits it via the integrated LMR195 Cables directly to your router. The result? Drastically improved reception quality, more stable connections, and noticeably faster data rates for all your devices.
MIMO 2x2 Power & Universal Compatibility for Your Network
What makes the QuWireless APLM2-H so effective? Its MIMO 2x2 technology! This means it uses two independent Antenna elements to simultaneously send and receive data. This not only increases speed but also significantly improves the stability of your connection. With its standardized SMA Connectors, the Antenna is universally compatible with most Teltonika 4G / 5G Routers models such as the RUT240, RUT950, or RUTX11, as well as many other 4G / 5G Routers and 2G/3G modems. This optimally complements and upgrades your existing hardware.
Robust, Simple, Efficient: Your Weatherproof Outdoor Antenna
Installing the QuWireless APLM2-H is incredibly easy. Thanks to the included Antenna Mounting Accessories, you can quickly attach it to a pole or wall and precisely align it. And don't worry about wind and weather: the housing is IP67 weatherproof certified and withstands temperatures from -40°C to 75°C. Made from robust ABS, aluminum, PTFE, and fiberglass, this Directional Radio Antenna is a long-term investment that will provide you with reliable signal amplification for years to come.
Strengths & Notes at a Glance
- Pro: High Signal Amplification and Range: With an impressive 7 dBi gain across all supported frequency bands, the Directional Antenna effectively focuses the signal, significantly improving reception quality and stability in areas with weak coverage.
- Pro: Plug & Play with Integrated Cables: The antenna comes with two permanently integrated, 5-meter long LMR195 Low-Loss Cables and standard SMA-Connectors, simplifying installation and eliminating the need to purchase additional adapters or cables.
- Pro: Extremely Robust and Weatherproof: The IP67-certified housing made of ABS, aluminum, PTFE, and fiberglass reliably protects the antenna from dust, water, and extreme temperatures from -40°C to 75°C, making it ideal for continuous outdoor use.
- Note: Requires Precise Alignment: As a Directional Antenna, the APLM2-H must be precisely aligned with the nearest cell tower to achieve optimal performance. This can be more time-consuming during installation than with an omnidirectional antenna.
- Note: Fixed Cable Length: The integrated 5-meter long cables are not interchangeable. For installations requiring longer or shorter cable runs, this must be considered during planning.
Specifications & Features
| Manufacturer: | QuWireless |
| Model Name: | QuPanel 4G HP MIMO 2x2 (APLM2-H) |
| Antenna Type: | Directional Antenna (Directional Panel Antenna) |
| MIMO Configuration: | 2x2 MIMO (Dual polarized X-Pol) |
| Frequency Range 1: | 0.694 - 0.96 GHz |
| Antenna Gain (0.694 - 0.96 GHz): | 7 dBi |
| Frequency Range 2: | 1.7 - 2.2 GHz |
| Antenna Gain (1.7 - 2.2 GHz): | 7 dBi |
| Frequency Range 3: | 2.2 - 2.7 GHz |
| Antenna Gain (2.2 - 2.7 GHz): | 7 dBi |
| VSWR: | <1.70 (maximum <2.00) |
| Beamwidth: | 70°/70° ±15° |
| Polarization: | X-Pol (Dual polarized) |
| Impedance: | 50 Ohm |
| Front-to-Back Ratio: | >10 dB |
| Cable Type: | 2x LMR195 (white) |
| Cable Length: | 2x 5 Meters (permanently integrated) |
| Connector Type: | 2x SMA-Male |
| Housing Material: | ABS, Aluminum, PTFE, Fiberglass |
| Protection Class (Ingress Protection): | IP67 |
| Dimensions: | 272 x 276 x 96 mm |
| Weight: | 1.8 kg |
| Operating Temperature: | -40°C to 75°C |
| Mounting: | Pole or Wall Mounting (60 degree adjustment in two planes) |
| Compatibility: | Teltonika RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 4G/3G/2G Modems and Routers. |
Scope of Delivery
| 1 x QuWireless QuPanel 4G HP MIMO 2x2 (APLM2-H) |
| 1 x Mounting Accessories for pole or wall mounting |
| 2 x Permanently integrated LMR195 connection cable (5 meters each) with SMA-Male |
Frequently Asked Questions (FAQ)
Which frequency bands is the QuWireless APLM2-H suitable for?
Your QuWireless APLM2-H supports a very wide frequency range of 0.694 - 0.96 GHz, 1.7 - 2.2 GHz, and 2.2 - 2.7 GHz. This makes it compatible with a variety of 2G, 3G, and 4G/LTE bands, including common European bands such as LTE700, 800, 1800, 1900, 2100, 2300, and 2600 MHz.
Is the antenna suitable for outdoor use and how robust is it?
Yes, your QuWireless APLM2-H is specifically designed for outdoor use. It features IP67 protection, which fully protects it against dust and water, and can operate in a wide temperature range from -40°C to 75°C.
Which routers are compatible with the QuWireless APLM2-H?
Your antenna is compatible with all MIMO 2x2 LTE, 3G, and 2G modems and routers that have SMA connectors. It works particularly well with Teltonika models such as RUT240, RUT900, RUT950, RUT955, RUTX09, and RUTX11.
What does 2x2 MIMO mean for this antenna?
2x2 MIMO (Multiple Input, Multiple Output) means that your antenna uses two separate antenna elements to simultaneously send and receive two data streams. This significantly improves your data transfer rates and signal stability, especially in combination with compatible routers.
How long are the included cables and what type of connectors do they have?
Your QuWireless APLM2-H (P/N: APLM2-H) comes with two permanently integrated, 5-meter long LMR195 Low-Loss cables, each equipped with an SMA connector.
How is the antenna mounted?
Your antenna comes with the included mounting Accessories and can be precisely aligned on a mast or a wall. The Mounting System allows for a 60-degree adjustment in two planes.
