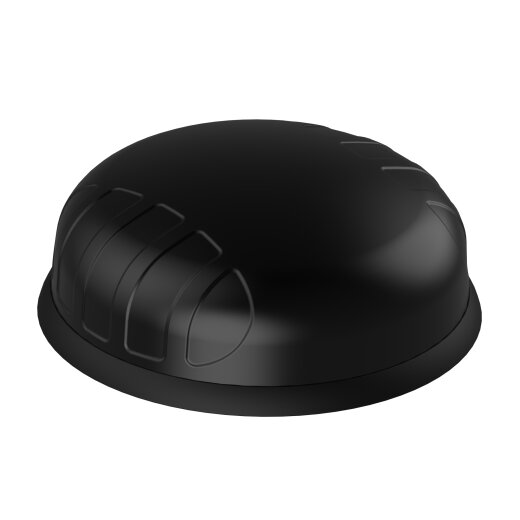

The PUCK-7 v2 antenna from Poynting (A-PUCK-0007-V2-01) is a low-profile antenna for use in IoT/M2M, smart meters, smart utilities, transportation, maritime, and agricultural/farming environments. The PUCK-7 consists of a 4-in-1 antenna system in a single housing and features 2x2 MIMO 4G / 5G as well as 2x2 MIMO WiFi (dual-band 2.4 GHz & 5 GHz) antenna elements.
The antenna offers two separate dual-band WiFi antennas that cover both the 2.4 GHz and 5 GHz bands simultaneously and support 802.11n and 802.11ac/ax with 2x2 MIMO. The 2x2 MIMO 2G/3G/4G/5G antennas cover the frequency range from 617 MHz to 4200 MHz, including the most common international 4G and 5G bands.
The PUCK outperforms many competitors because this high-performance antenna is designed with care. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity, and good radiation characteristics at the desired height, which is often overlooked in such a small antenna.
Despite its small size, this antenna offers excellent performance, especially in the higher frequency bands, where performance is crucial for 4G throughput and connection stability.

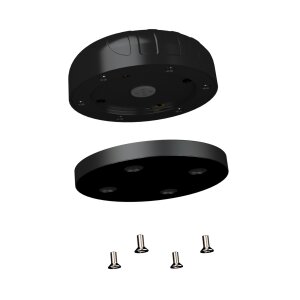

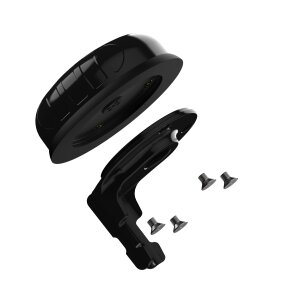

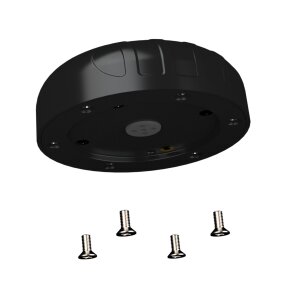

Included Mounting Systems
- Magnetic mount

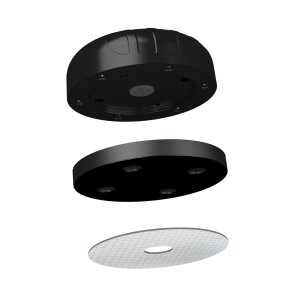

- 3M adhesive pad

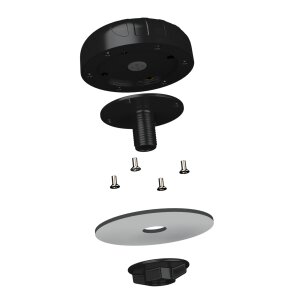

- Stud mount / plastic thread with nut
- Bracket for wall or mast mounting
Applications
- Private vehicles, campers, caravans, motorhomes
- Transport vehicles (buses, utility vehicles, public safety)
- Agricultural machinery
- Small boats, yachts in coastal areas or inland waters
- Smart electricity, gas, and water meters
- Air conditioning, access control, security, irrigation
- Industrial factory automation, robotic machines, and other M2M systems
- Communication with mining vehicles and machines, telemetry, and automation (M2M & IoT)
- Warehouse and logistics systems
- Digital signage
Connection Cables
- 2 x 5G / 4G with SMA connector
- 2 x WiFi with RP-SMA connector
Technical Specifications:
| Manufacturer / Model: | Poynting / A-PUCK-0007-V2-01 |
| Antenna Type: | Omnidirectional antenna |
| Frequency Range 5G / 4G: | 617 - 4200 MHz |
| Gain 5G / 4G: | 6dBi |
| Frequency Range WiFi: | 2400-2500 MHz, 5000-6000 MHz |
| Gain WiFi: | 7.5dBi |
| Cable / Connector: | 2 x 2m cable / SMA connector (4G) 2 x 2m cable / RP-SMA connector (WiFi) |
| Impedance: | 50 Ohms |
| Application Area: | Indoor and outdoor |
| IP Rating: | IP 68 (excluding cable exit) |
| Operating Temperature: | -40° to 80° C |
| Humidity: | up to 95% |
| Dimensions: | Ø99.3 mm x 36 mm |
| Housing Color: | Black |
Package Contents:
| 1 x Poynting PUCK-7 v2 Antenna, Black |
| 1 x Set of four mounting systems |
