Your Signal Anchor for On-the-Go and Complex Environments
Are you constantly on the move – whether at sea with your yacht, across the country in your motorhome, or during temporary assignments at construction sites? Then you know how frustrating it is when mobile internet falters. The QuWireless AOLM2 is your answer to this challenge. As a true 4G Omni-Directional Antenna, it receives signals from all 360 degrees without you having to painstakingly align it. This is not only brilliant for mobile platforms like trains, buses, or trucks, but also in densely built-up cities where the 4G Antenna signal is often reflected by buildings and comes from various directions. With this Mobile Antenna, you stay connected no matter where the signal comes from.
Indestructible and Ready for Any Weather
If you are looking for an Outdoor Antenna that can really handle anything, then the QuWireless AOLM2 is exactly what you need. Its robust housing is IP68 certified, which means it is absolutely dustproof and can even withstand continuous submersion. Made from UV-stable plastic, aluminum, and PTFE, it defies extreme temperatures from -40 °C to 75 °C and will not become brittle even after years in the sun. Whether it's salt water on the high seas or icy winter days – this External Antenna reliably delivers performance and is the perfect choice for demanding environments. So you can fully concentrate on your journey or project without having to worry about your internet access.
Simply Connect, Get Online Immediately

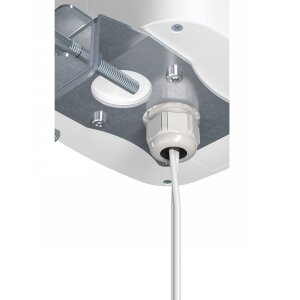

Complicated installations? Not with the QuWireless AOLM2! This Multiband 4G antenna comes to you as a true plug-and-play marvel. Two high-quality, permanently integrated 5-meter-LMR195 Cables with SMA Connectors enable a direct and uncomplicated connection to most 4G/3G/2G capable modems and routers. Particularly noteworthy is the full compatibility with a variety of Teltonika 4G / 5G Routers models such as RUT240, RUT950, or RUTX11. Thanks to MIMO 2x2 technology, you benefit from improved data rates and a more stable connection. The Wall or Mast Mounting is done in no time thanks to the included kit, so you can quickly benefit from your new, stable internet connection.
Your Questions, Our Answers: All About the QuWireless AOLM2
You're wondering what MIMO 2x2 means? It's simple: the antenna uses two separate elements to simultaneously send and receive data, which significantly improves your transmission rates and signal stability in the 4G Network. And is it also 5G-capable? Primarily designed for 4G/4G/3G/2G capable, it supports frequencies up to 2700 MHz and is therefore compatible with some 5G bands, even if it doesn't offer full 5G performance. The QuWireless AOLM2 is the ideal choice for anyone looking for a reliable, omnidirectional 360° antenna with high gain (4 dBi) that is easy to install and performs its duty even under the toughest conditions. With the right 4G / 5G Antenna Cables and simple mounting, your stable internet is just a few steps away.
Strengths & Notes at a Glance
- Pro: Omnidirectionality (360° Reception): No alignment to the cell tower required, ideal for mobile applications (vehicles, boats) and locations with changing or reflected signals.
- Pro: Robust and Weatherproof construction (IP68): The housing is dustproof and waterproof, ensuring reliable operation under extreme weather conditions outdoors.
- Pro: Plug & Play with integrated cables: Two high-quality, permanently attached 5-meter-LMR195 Cables with SMA Connectors enable an easy and direct connection to most 4G / 5G Router models, without additional Accessories.
- Note: Lower directivity: As an 4G Omni-Directional Antenna, it offers lower pinpoint gain in a specific direction compared to a directional antenna, which can be a disadvantage with very weak signals from a known direction. The maximum gain of 4 dBi is good for an omnidirectional antenna, but directional Antennas can achieve significantly higher values.
- Note: Fixed cable length: The integrated cable length of 5 meters is practical, but can be too short or too long in certain installation scenarios and may require adapters or repositioning of the router. An extension can lead to signal loss.
Specifications & Features
| Manufacturer: | QuWireless |
| Model Name: | AOLM2 (P/N: AOLM2) |
| Antenna Type: | Omnidirectional Multiband 4G MIMO 2x2 Antenna |
| Frequency Range 1: | 694 - 960 MHz |
| Frequency Range 2: | 1.7 - 2.2 GHz |
| Frequency Range 3: | 2.2 - 2.7 GHz |
| Antenna Gain (694 - 960 MHz): | 2 dBi |
| Antenna Gain (1.7 - 2.2 GHz): | 2 dBi |
| Antenna Gain (2.2 - 2.7 GHz): | 4 dBi |
| Maximum Gain: | 4 dBi |
| Polarization: | Vertical |
| VSWR: | <1.60, max <2.00 |
| Beamwidth Horizontal: | 360° |
| Beamwidth Vertical: | 35° ±5° |
| Impedance: | 50 Ω |
| Cable Type: | LMR195 (white) |
| Cable Length: | 5 Meters (permanently integrated) |
| Connector Type: | 2x SMA-Male |
| Protection Class: | IP68 |
| Housing Material: | Acrylonitrile Butadiene Styrene (ABS), Aluminum, Polytetrafluoroethylene (PTFE) |
| Mounting: | Wall or Mast Mounting (Mounting kit included) |
| Dimensions: | 160 x 160 x 240 mm |
| Weight: | 1.5 kg |
| Operating Temperature: | -40 °C to 75 °C |
| Country of Manufacture: | Europe (Made in Europe) |
| Warranty: | 2 Years |
Scope of Delivery
| 1 x QuWireless AOLM2 4G Omni-Antenna |
| 1 x Mounting Set (Mast Clamp/Bracket) |
| 1 x Integrated Cable Set (2x 5m LMR195 with SMA-Male Connectors) |
Frequently Asked Questions (FAQ)
What does MIMO 2x2 stand for in this antenna?
MIMO 2x2 (Multiple Input, Multiple Output) means that your antenna uses two separate antenna elements to simultaneously send and receive two data streams. This improves your data transfer rates and signal stability in your LTE Network.
Is the QuWireless AOLM2 also suitable for 5G?
Your antenna is primarily designed for LTE/4G/3G/2G connections and supports frequencies up to 2700 MHz. Some sources mention support for specific 5G bands (e.g., n80, n81, n82, n83, n84, n86, n89, n90, n95), which indicates limited compatibility with some 5G frequencies, but not full 5G performance for you.
Which routers are compatible with the QuWireless AOLM2?
Your antenna is fully compatible with a range of Teltonika products, including RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, as well as other MIMO 2x2 LTE/3G/2G modems and routers with SMA connectors that you use.
Can the antenna also be used in saltwater environments?
Yes, your robust IP67/IP68 certified housing is dust and waterproof and made of UV-stable plastic that will not become brittle even after years in the sun. This makes it ideal for your use on boats and yachts in saltwater environments.
How is the QuWireless AOLM2 mounted?
Your antenna comes with mounting Accessories for mast or wall mounting, so you can easily attach it.
What are the advantages of an omnidirectional antenna over a directional antenna?
An omnidirectional antenna receives signals from all directions (360°), making it ideal for your mobile applications or environments with changing signal sources, as no alignment is required. A directional antenna, on the other hand, must be precisely aligned with the transmission mast, but offers higher gain in a specific direction.
