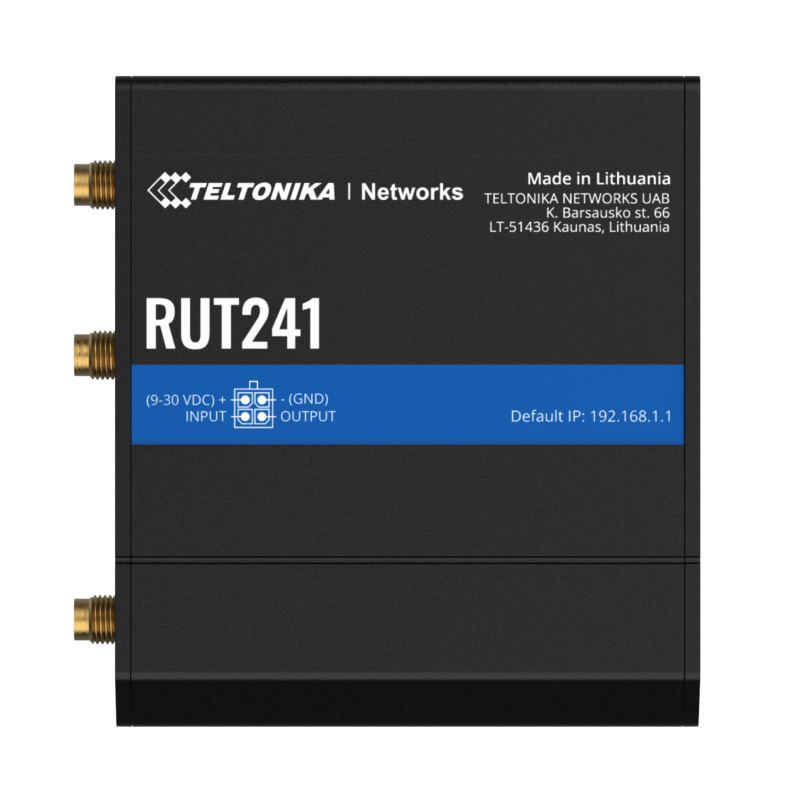

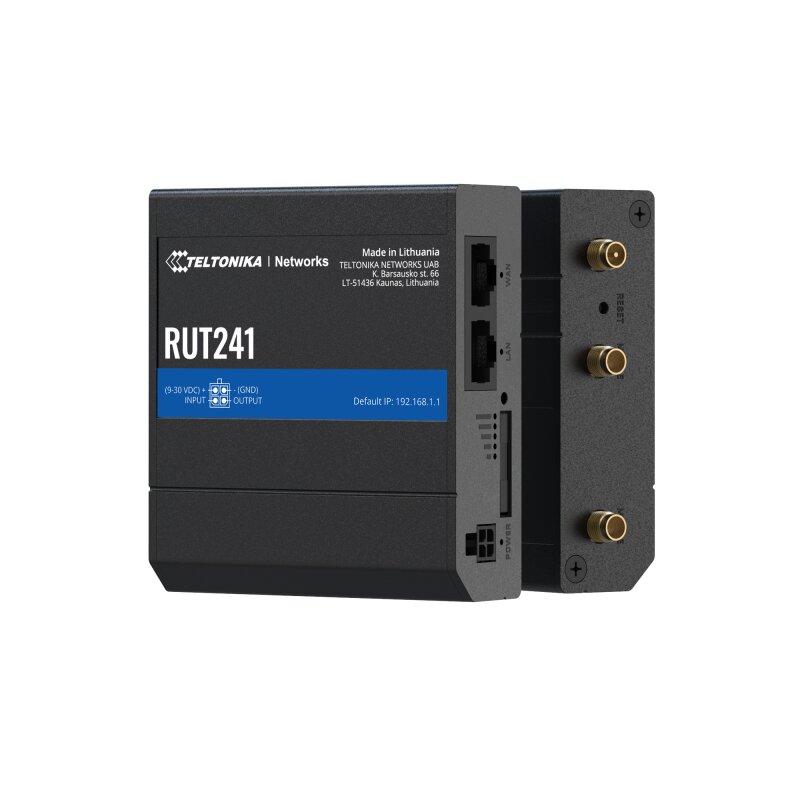

Your Connection Stands: The RUT241 as a Rock in the Surf
The RUT241 is more than just a router – it's your insurance for a stable internet connection. Equipped with advanced Teltonika Router with WAN Failover, it constantly monitors your primary internet line. If it fails, it switches instantly and without your intervention to the 4G mobile connection. The result: your critical applications, from video surveillance to machine control, continue to run without interruption. Ideal for business applications where every outage costs money.
Built for Extremes: A Robust 4G Router for Vehicles and Industry
Where other devices give up, the RUT241 just begins. Its robust aluminum housing, shock and vibration resistance, and extreme operating temperature range of -40 °C to 75 °C make it the perfect companion in harsh environments. Whether in a truck, on a construction site, or in an unheated technical room – this router reliably delivers its performance. The wide input voltage range of 9 to 30 volts DC also allows direct connection to vehicle batteries and industrial power supplies, protected by integrated overvoltage and reverse polarity protection.
Full Control, No Matter Where You Are: RutOS and Teltonika RMS
The true strength of the RUT241 lies in its software. The OpenWrt-based RutOS is a powerhouse that gives you full control over your Network. Configure complex firewall rules, set up secure VPN tunnels with OpenVPN, IPsec or WireGuard, or use VLANs to segment your Network. In combination with the Teltonika Remote Management System (RMS), management becomes child's play. Remotely access all your routers, install firmware updates, and monitor the status in real-time – an indispensable tool for any administrator managing a distributed Network.
Compact, Flexible and Ready to Use
Despite its enormous performance, the RUT241 is amazingly compact. It fits into even the smallest control cabinet or vehicle. The included Antennas ensure solid reception, but can be replaced by more powerful Vehicle Antennas - 4G, 5G, WiFi if necessary to get the most out of the mobile Network. With two configurable Ethernet ports (WAN/LAN), digital inputs and outputs, and the ability to power via Passive PoE, this Teltonika 4G / 5G Routers is a true multi-talent for countless IoT and connectivity projects.
Strengths & Notes at a Glance
- Pro: Extremely robust design for demanding environments.
- Pro: Reliable WAN failover function for maximum reliability.
- Pro: Powerful RutOS with professional VPN and firewall features.
- Pro: Very compact design and flexible mounting options (DIN rail).
- Pro: Compatible with Teltonika RMS for convenient remote management.
- Note: 4G Cat 4 offers solid speeds up to 150 Mbit/s, but does not support Carrier Aggregation for higher data rates.
- Note: The WiFi is based on Wi-Fi 4 (2.4 GHz) and is designed for basic applications, not for high-speed WiFi networks.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | RUT241 GLOBAL |
| EAN: | 4779051840151 |
| Manufacturer Part Number (MPN): | RUT2410300G0 |
| Product Classification: | Industrial 4G Router |
| Mobile Module: | 4G (4G) Category 4 |
| 4G Data Rate: | Up to 150 Mbit/s Downlink, 50 Mbit/s Uplink |
| 3G Data Rate: | Up to 42 Mbit/s Downlink, 5.76 Mbit/s Uplink |
| 4G-FDD Bands: | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
| 4G-TDD Bands: | B38, B39, B40, B41 |
| 3G (UMTS) Bands: | B1, B2, B4, B5, B6, B8, B19 |
| SIM Slot: | 1 x External SIM Holder (Mini SIM - 2FF) |
| Mobile Antenna Connectors: | 2 x SMA (male) |
| WLAN Standard: | IEEE 802.11b/g/n (Wi-Fi 4) |
| WLAN Frequency Band: | 2.4 GHz |
| WLAN Modes: | Access Point (AP), Station (STA) |
| WLAN Security: | WPA2-Enterprise, WPA2-PSK, WPA3-SAE, OWE etc. |
| Max. WLAN Clients: | Up to 50 |
| WLAN Antenna Connector: | 1 x RP-SMA (male) |
| CPU: | Mediatek MIPS 24Kc, 580 MHz |
| RAM: | 128 MB, DDR2 |
| Flash Memory: | 16 MB, SPI Flash |
| Operating System: | RutOS (based on OpenWrt) |
| Ethernet Ports: | 2 x 10/100 Mbit/s RJ45 (configurable as 1xWAN/1xLAN or 2xLAN) |
| Digital I/O: | 1 x Digital Input, 1 x Digital Output |
| Power Supply: | 4-Pin DC Socket, 9 – 30 VDC |
| Passive PoE: | Yes, via LAN1-Port (Mode B, 9-30 VDC) |
| Power Consumption: | < 6.5 W (Maximum) |
| Housing: | Aluminum with plastic panels |
| Protection Class: | IP30 |
| Operating Temperature: | -40 °C to 75 °C |
| Dimensions (W x H x D): | 83 x 25 x 74 mm |
| Weight: | 125 g |
Scope of Delivery
| 1 x Teltonika RUT241 GLOBAL Router |
| 1 x 9W Power Supply |
| 2 x 4G Antennas (swivel, SMA male) |
| 1 x WLAN Antenna (swivel, RP-SMA male) |
| 1 x Ethernet Cable (1.5 m) |
| 1 x SIM Adapter Kit |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
Is the Teltonika RUT241 suitable for use in a motorhome or truck?
What is the main difference between the RUT241 and its predecessor RUT240?
The main difference lies in the improved hardware of the RUT241. It features a faster CPU and more RAM, leading to better overall performance, while the housing and interfaces have remained identical.
Can I manage the RUT241 remotely?
Does the RUT241 support two SIM cards for redundancy?
No, the standard RUT241 model only has a single SIM card slot. For dual-SIM functionality with automatic failover, you would need to switch to other Teltonika models such as the RUT951.
Do I need a special SIM card for operation?
How is the router powered?
The router is primarily powered via the included Power Supply unit at the 4-pin connector. Alternatively, it can be powered via Passive Power over Ethernet (PoE) at the LAN1 port with a voltage of 9-30V DC.
