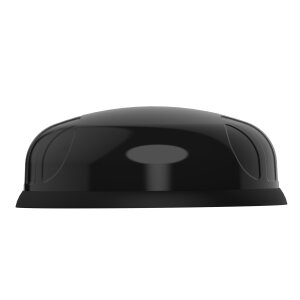

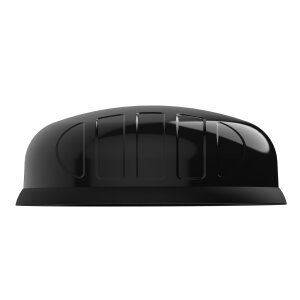

The PUCK-2 v2 antenna from Poynting is a small profile antenna for use in IoT / M2M, smart meters, smart utilities, transportation, shipping and agriculture / farming environments. The PUCK-2 consists of a 2-in-1 antenna system in a single housing and has 2x2 MIMO 4G / 5G antenna elements. The 2x Cellular MIMO antennas cover the 617 to 4200 MHz band, which includes the most popular international 4G and 5G bands.
The PUCK outperforms many competitors because of the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small antenna.
Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for 4G and 5G throughput and connection stability. This antenna is designed so that both 4G ports are connected to the router/device to ensure the best performance.
Application Areas
- Private Vehicles, Campers, Caravans, Motorhomes
- Public Vehicles, Trucks, Tractors, Industrial Vehicles
- Installations on ceilings, equipment cabinets or machines
- M2M (Machine to Machine) and other IoT (Internet of Things) applications
Connector / Cable
- 2 x 2m RG-174 cable with SMA plug (fits to nearly all common 4G and 5G routers)
Technical Data:
| Manufacturer / Model: | Poynting / A-PUCK-0002-V2-01 |
| Antenna Type: | Omnidirectional |
| Frequency: | 617 - 4200 MHz |
| Gain: | 6dBi |
| Cable / Connection: | 2 x 2m cable / SMA male |
| Impedance | 50 Ohm |
| Appliance: | In- and Outdoor |
| IP-Rating: | IP 68 (exclude cable outlet) |
| Temperature Range: | -40° to 80° C |
| Humidity: | up to 95% |
| Dimensions: | Ø99.3 mm x 36 mm |
| Color: | Black |
Scope of delivery:
| 1 x Poynting PUCK-2 v2 Automotive Antenna, Black |

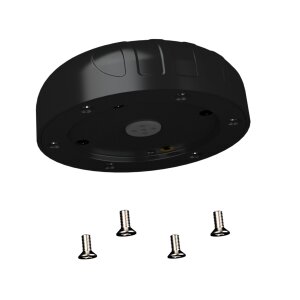

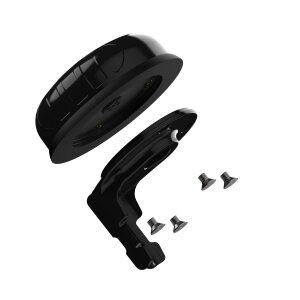

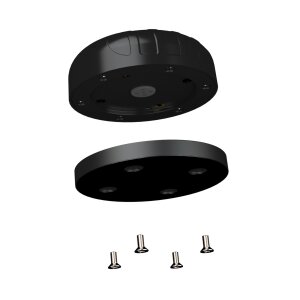

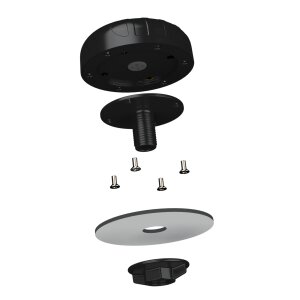

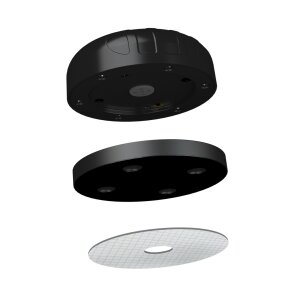

| 1 x Set of four mounting systems |
