Your Turbo for Mobile Internet: The Panorama DMM-7-38-2SP
Poor reception and sluggish internet are a thing of the past! With the Panorama DMM-7-38-2SP, you get the most out of your mobile broadband. This powerful 5G/4G omnidirectional Antenna has been specially developed to drastically improve the signal strength and quality of your mobile internet. Imagine streaming without buffering, uploading large files in no time, and staying reliably connected even in areas with weak coverage. Thanks to its 2x2 MIMO capability and wide frequency range of 698-3800 MHz, you receive signals more efficiently and benefit from significantly higher download and upload speeds. Whether 4G or 5G – this mobile Antenna is your key to a better digital world. It's the perfect addition to your 4G / 5G Router or modem to finally enjoy a stable connection.
Maximum Flexibility, Minimum Installation: Optimal Reception Everywhere
The DMM-7-38-2SP is a true all-rounder in terms of mounting and adapts perfectly to your needs. No matter where you are – in a temporary office, retail, or simply in your home office – this portable Antenna is ready for use in a flash. You can conveniently place it as a desktop antenna on your desk thanks to the fold-out feet. Or do you want to optimize the signal directly at the window? No problem! With the included suction cups, you can easily attach it to any smooth surface. And for those who are often on the go: The practical clips even allow attachment to your laptop screen. The two 2-meter RG174 coaxial cables are already pre-assembled with SMA connectors, making installation a breeze. Simply connect and immediately benefit from an improved connection!
Intelligent Design for Superior Performance: Your Signal Boost

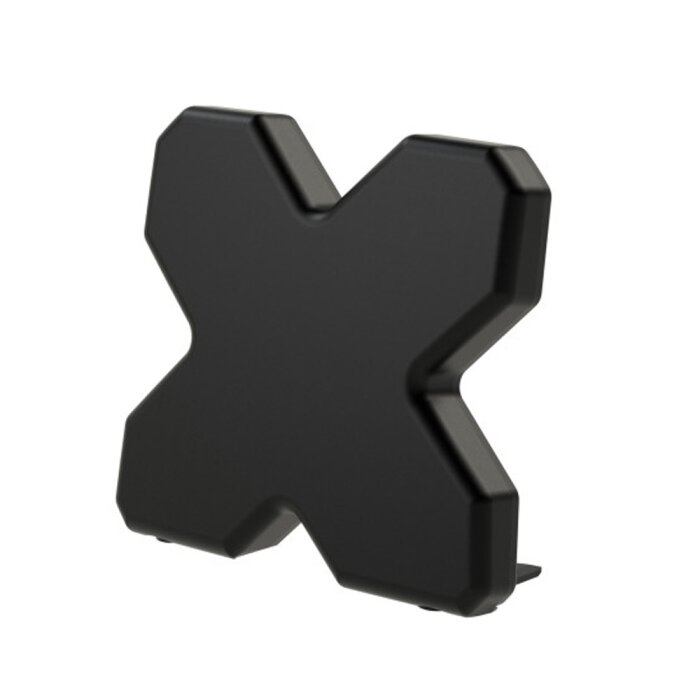

What makes the Panorama DMM-7-38-2SP so special? It's the combination of advanced technology and thoughtful design. The antenna's unique 'X' design is not just a visual highlight, but primarily designed to maximize the efficiency of 2x2 MIMO performance across an extremely wide frequency range. For you, this means: better data transfer rates and a more stable connection, even in demanding environments. The broadband antenna covers frequencies from 698-960 MHz and 1710-3800 MHz, making it future-proof for 2G, 3G, 4G (4G) and the important 3.5 GHz 5G band. It acts as your personal signal booster, compensating for Network weaknesses and providing you with reliable connectivity.
Your Reliable Companion for Every Situation
Whether you need an uninterrupted internet connection for your mobile business, are on the go in your Yacht / Camper / Motorhome, or simply want to optimize your home office setup – the Panorama DMM-7-38-2SP is your ideal solution. It is perfect for use in mobile environments where a fixed installation is not possible or desired. Imagine being on a trip and still having a stable connection for video conferences or streaming. Or you use it as a failover solution to ensure your internet never goes down. This external antenna is not just an upgrade for your existing hardware, but an investment in your digital freedom and productivity. Discover the diverse possibilities this flexible Antennas offers you.
Strengths & Notes at a Glance
- Pro: Wide Frequency Coverage: Supports 2G, 3G, 4G (4G) and 5G (especially the 3.5 GHz band), thus offering future-proof compatibility with various mobile networks.
- Pro: Flexible Mounting Options: Comes with Accessories for tabletop placement (fold-out feet), window mounting (suction cup), and laptop clip, allowing for easy and versatile installation.
- Pro: Improved Data Rates: Through 2x2 MIMO technology and the omnidirectional design, the antenna can significantly improve signal strength and quality in areas with weak or inconsistent coverage, leading to faster upload and download speeds.
- Note: Limited Gain (Omnidirectional): As an omnidirectional antenna, it offers lower antenna gain (typically 2-5 dBi) compared to directional Antennas, which can be limiting in very weak signal areas or at great distances from the cell tower.
- Note: Limited 5G Band Coverage: Although it supports 5G in the 3.5 GHz band, it does not cover the entire Sub-6 GHz 5G spectrum, specifically lacking lower frequency bands such as 600 MHz (Band 71), which are important for greater range. Newer models from the manufacturer offer broader coverage here.
Specifications & Features
| Manufacturer: | Panorama Antennas |
| Model: | DMM-7-38-2SP |
| Product Type: | 5G/4G Omnidirectional Antenna |
| Antenna Type: | Omnidirectional, 2x2 MIMO |
| Frequency Range: | 698-960 MHz / 1710-3800 MHz |
| Supported Networks: | 2G, 3G, 4G (4G), 5G (3.5 GHz Band) |
| Peak Gain: | 2.5 - 5 dBi (frequency dependent) |
| Polarization: | Vertical |
| VSWR (Typical): | < 2.5:1 |
| Max. Input Power: | 20 W |
| Connectors: | 2 x SMA-Stecker (männlich) |
| Cable Type: | RG174 |
| Cable Length: | 2 Meter (pro Kabel) |
| Mounting Options: | Desktop (Standfüße), Window (Suction Cup), Laptop (Clips), Wall Mounting (screws not included) |
| Dimensions (L x W x H): | 151 x 137 x 10 mm |
| Housing Color: | Schwarz |
| Operating Temperature: | -40°C bis +80°C |
| Impedance: | 50 Ohm |
| Application Area: | Indoor |
Scope of Delivery
| 1 x Panorama DMM-7-38-2SP 5G/4G Omnidirectional Antenna (with 2x 2m RG174 cables and SMA connectors) |
| 1 x Set of Stand Feet (integrated) |
| 1 x Suction Cup for Window Mounting |
| 2 x Mounting Clips for Laptop/Screen |
Frequently Asked Questions (FAQ)
What does 2x2 MIMO mean for an antenna?
2x2 MIMO (Multiple-Input Multiple-Output) means that your antenna uses two separate antenna elements to simultaneously send and receive data. This improves your data transfer rates and signal stability by utilizing multiple signal paths.
Which frequency bands does the Panorama DMM-7-38-2SP support?
Your antenna supports a wide frequency range of 698-960 MHz and 1710-3800 MHz, which allows you to use 2G, 3G, 4G (LTE), and 5G networks (especially in the 3.5 GHz band).
How is the Panorama DMM-7-38-2SP mounted?
Your antenna offers flexible mounting options: You can place it on a desk (fold-out feet), attach it to a window or smooth surface with a suction cup, clip it to a laptop screen, or mount it to a wall with screws.
Is the Panorama DMM-7-38-2SP suitable for outdoor use?
The Panorama DMM-7-38-2SP is primarily designed and advertised for indoor use. For dedicated outdoor mounting, there are other models from the manufacturer that might be better suited for your needs.
Which routers are compatible with the Panorama DMM-7-38-2SP?
Your antenna is compatible with routers and modems that have two external SMA connectors for cellular Antennas. It is designed for your MIMO-capable devices.
Can I extend the Antenna Cables of the DMM-7-38-2SP?
Your antenna comes with two permanently integrated 2-meter long RG174 coaxial cables. Extension is technically possible, but especially with RG174 cables, it can lead to signal loss, which reduces the performance of your antenna.
Homepage: https://www.panorama-antennas.com/
