Gigabit Speed via 4G: Your Solution for Weak Reception
Do you live in the countryside or an area where fast fixed-line internet is a foreign concept? The MikroTik ATL LTE18 Kit is the answer. This device is not an ordinary router, but a highly specialized receiving unit designed to capture even the weakest 4G signal and transform it into a stable Gigabit internet connection for your home or office. Thanks to the integrated high-gain directional Antenna and support for long-range frequency bands such as Band 20 (800 MHz) and Band 28 (700 MHz), you effortlessly bridge large distances to the nearest cell tower.
Sophisticated Outdoor Design for All Weather

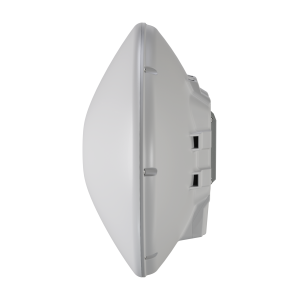

The ATL LTE18 Kit is built for continuous outdoor use. The housing is IP54 protected against dust and splashing water and withstands extreme temperatures from -40°C to +70°C. The clever, spaceship-like design is not only an eye-catcher but also has a practical benefit: it prevents snow and ice from accumulating on the surface and disturbing reception. Installation is incredibly easy thanks to mast mounting material and Power Supply via Power over Ethernet (PoE). You only need a single Network cable to the device. Suitable `PoE Injectors / Power Supplies` are of course included directly in the package.
Maximum Control with MikroTik RouterOS
For Network professionals and tech enthusiasts, RouterOS is the ultimate standard. This extremely powerful operating system gives you full control over your connection. You can manually select the best frequency bands (band-locking), connect to a specific cell (cell-locking), create complex firewall rules, or analyze detailed statistics to optimize performance down to the last detail. While basic configuration is also feasible for ambitious beginners, this specialized `4G / 5G Router` unfolds its full potential in the hands of users who know what they are doing.
Future-Proof thanks to 4G Cat.18 and 4x4 MIMO
With the ATL LTE18 Kit, you are investing in the future. 4G Category 18 is one of the fastest available 4G stages. Thanks to 4x4 MIMO, the device can receive four data streams simultaneously, which enormously increases speed and stability. Carrier Aggregation (CA) technology allows the modem to use up to five different frequency bands simultaneously – imagine it as a five-lane highway for your data. This prepares you perfectly for the further expansion of mobile Networks and allows you to benefit from the highest available speeds in the future.
Strengths & Notes at a Glance
- Pro: Excellent reception performance, even in fringe areas with weak signals.
- Pro: Very high theoretical speed (up to 1.2 Gbit/s) makes the hardware future-proof.
- Pro: Robust and well-designed IP54 outdoor housing that withstands harsh weather conditions.
- Pro: Enormous configuration depth and control through the professional RouterOS.
- Note: Setup and optimization with RouterOS is complex and requires technical expertise.
- Note: Actual performance heavily depends on Network coverage, utilization, and precise Antenna alignment.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | ATL LTE18 Kit (ATLGM&EG18-EA) |
| EAN: | 4752224008312 |
| Product Code: | ATLGM&EG18-EA |
| Device Type: | 4G Client Device / MikroTik Router with integrated directional Antenna |
| CPU Architecture: | ARM 64bit |
| CPU Model: | 88F3720 (Dual-Core) |
| CPU Clock Frequency: | 800 MHz |
| Number of CPU Cores: | 2 |
| RAM: | 256 MB DDR3L |
| Storage: | 16 MB, FLASH |
| Operating System: | MikroTik RouterOS v7 |
| RouterOS License Level: | 3 |
| Modem Module: | R11mL-EG18-EA (Quectel EG18-EA Chipsatz) |
| 4G Category: | Cat 18 |
| Maximum Downlink Rate (4G): | 1.2 Gbit/s |
| Maximum Uplink Rate (4G): | 150 Mbit/s |
| 3G Category: | R8 |
| Maximum Downlink Rate (3G): | 42.2 Mbit/s |
| Maximum Uplink Rate (3G): | 11.2 Mbit/s |
| 4G MIMO: | 4x4 MIMO (Downlink), 1x1 MIMO (Uplink) |
| Carrier Aggregation: | Yes, up to 5x DL CA |
| 4G FDD Bands: | 1 (2100), 3 (1800), 5 (850), 7 (2600), 8 (900), 20 (800), 28 (700) |
| 4G TDD Bands: | 38 (2600), 40 (2300), 41 (2500) |
| 3G Bands: | 1 (2100), 3 (1800), 5 (850), 8 (900) |
| Antenna Type: | Integrated High-Gain Directional Antenna |
| Antenna Configuration: | 4x Mid-Band (1.7-2.7 GHz), 2x Low-Band (700-1000 MHz) |
| Ethernet Ports: | 1 x 10/100/1000 Gigabit Ethernet Port |
| SIM Card Slot: | 1 x Micro-SIM (3FF) |
| Power Supply: | Power over Ethernet (PoE-IN) |
| Supported PoE Standards: | 802.3af/at |
| PoE Input Voltage: | 12 - 57 V |
| Maximum Power Consumption: | 8 W |
| Dimensions: | 315 x 315 x 170 mm |
| Operating Temperature: | -40°C to 70°C |
| Protection Class: | IP54 |
| Certificates: | CE, GCF, RCM |
| TAC: | 86981604 |
Scope of Delivery
| 1 x MikroTik ATL LTE18 Kit |
| 1 x 24V 0.8A Power Supply |
| 1 x Gigabit PoE Injector / Power Supply |
| 1 x Antenna Mounting Accessories Set |
Frequently Asked Questions (FAQ)
Is the MikroTik ATL 4G18 Kit a WiFi Router?
No, the device does not have an integrated WiFi function. It receives the 4G signal and outputs it via a Gigabit Ethernet port. To create a WiFi network, a separate WiFi Access Point or WiFi Router must be connected to the ATL Kit.
Can I improve the internet speed at my residence with the ATL 4G18 Kit?
Yes, especially if you live in a rural or underserved region. The powerful directional antenna can receive a weak 4G signal significantly better than a smartphone. However, success strongly depends on the distance and line of sight to the nearest cell tower.
Does the antenna need to be precisely aligned with a cell tower?
Yes, for optimal performance, precise alignment with the appropriate cell tower is crucial. Tools like the 'Cellmapper' app can help identify the tower's location and the frequencies used to facilitate alignment.
Which SIM card is required for the MikroTik ATL 4G18 Kit?
The device uses a Micro-SIM card slot (3FF). You will need a data plan from a mobile provider whose frequency bands are supported by the device.
Is the configuration suitable for beginners?
No, configuration via RouterOS is demanding. While a basic configuration is possible via the web interface (WebFig), optimizing the connection, e.g., locking to specific frequency bands, requires familiarity with the subject of MikroTik Routers.
What do 4x4 MIMO and Carrier Aggregation mean?
4x4 MIMO means that the device can use four transmit and receive Antennas simultaneously to increase data rate and stability. Carrier Aggregation allows the modem to bundle multiple frequency bands simultaneously to achieve higher overall bandwidth.
