The Challenge: Robust Outdoor Wi-Fi
Imagine extending your Wi-Fi network across your entire property, a large parking lot, or even an expansive corporate campus. Conventional access points are often not designed for this: they fail in adverse weather conditions, lack sufficient range, or are quickly overwhelmed by many simultaneously connected devices. Installation can also be complicated by the absence of power outlets outdoors. How do you ensure reliable, fast, and weatherproof Wi-Fi coverage that can withstand high demands?
The Solution: Cudy AP3000 Outdoor – Your Outdoor Wi-Fi Powerhouse
The Cudy AP3000 Outdoor Access Point is the answer to all these challenges. This Wi-Fi Access Point, specifically developed for outdoor use, combines state-of-the-art Wi-Fi 6 technology with extreme robustness. With its AX3000 dual-band performance and advanced features like OFDMA and MU-MIMO, it effortlessly provides lightning-fast internet to a multitude of devices. Flexible PoE power supply significantly simplifies installation, as you only need a single Ethernet cable for both data and power.
Technology That Impresses: Details of the Cudy AP3000 Outdoor
At the heart of the Cudy AP3000 Outdoor beats a powerful 1.3 GHz Dual-Core CPU, supported by 256 MB DDR3 RAM and 128 MB NAND Flash, ensuring smooth performance. The detachable RP-SMA antennas with 6 dBi (5 GHz) and 4 dBi (2.4 GHz) gain, combined with five high-power FEMs, guarantee impressive signal strength and a range of up to 320 meters. The access point supports various operating modes such as Access Point, Router, Repeater, and WISP, and can be seamlessly integrated into Cudy Mesh networks to ensure uninterrupted coverage.
Your Advantage: Reliability and Performance Where You Need It
With the Cudy AP3000 Outdoor, you invest in a future-proof Wi-Fi system that offers maximum flexibility and performance. Whether you want to network a large estate, a campsite, or an outdoor warehouse – this WLAN Access Point delivers the necessary power and reliability. Easy installation and the ability to connect up to 200 recommended devices simultaneously make it the ideal choice for demanding outdoor scenarios. Experience the difference a truly robust and powerful Outdoor Access Point can make!
Technical Specifications
| Model: | Cudy AP3000 Outdoor |
| Wi-Fi Standard: | Wi-Fi 6 (802.11ax) |
| Wi-Fi Speed (Total): | AX3000 |
| Wi-Fi Speed (5 GHz): | 2402 Mbit/s (160 MHz Channel Width) |
| Wi-Fi Speed (2.4 GHz): | 574 Mbit/s |
| CPU: | 1.3 GHz Dual-Core (MT7981BA Chipset) |
| RAM: | 256 MB DDR3 |
| Flash: | 128 MB NAND |

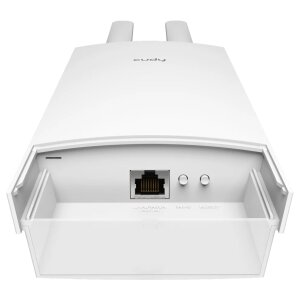

| Ethernet Ports: | 1 x Gigabit RJ45 (Shielded, PoE In) |
| Antennas: | 1 x Internal, 2 x External (Detachable, RP-SMA Female) |
| Antenna Gain (5 GHz): | Max. 6 dBi |
| Antenna Gain (2.4 GHz): | Max. 4 dBi |
| PoE Support: | 802.3at PoE+ and 48-57V Passive PoE |
| Max. Power Consumption: | 18 W |
| Idle Power Consumption: | 5 W |
| Protection Rating: | IP65 (Dust and Water Jet Protection) |
| Lightning/Surge Protection: | 6 kV |
| ESD Protection: | 8 kV (Air), 4 kV (Contact) |
| Operating Temperature: | -40 °C to 70 °C |
| Dimensions (Device): | 240 × 100 × 53.7 mm |

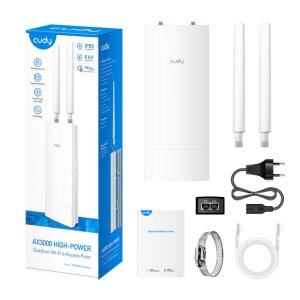

Package Contents
| 1 x Cudy AP3000 Outdoor Access Point |
| 2 x Detachable Antennas |
| 1 x PoE Adapter |
| 1 x Power Cable |

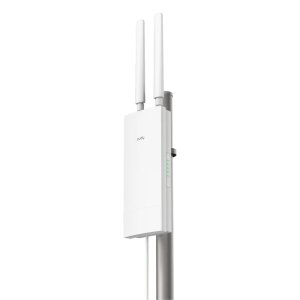

| 1 x Mounting Kit (Wall/Pole Mount) |
| 1 x Ethernet Cable |
| 1 x Installation Guide |
Häufig gestellte Fragen (FAQ)
Is the Cudy AP3000 Outdoor truly weather-resistant?
Yes, the Cudy AP3000 Outdoor features an IP65-certified enclosure, providing complete protection against dust and water jets. It is also designed for extreme temperatures from -40 °C to 70 °C and offers 6 kV lightning/surge protection as well as 8 kV ESD protection. This makes it ideal for year-round outdoor use.
How is the Cudy AP3000 Outdoor powered?
The access point supports flexible power supply options: You can power it via either 802.3at PoE+ or 48-57V Passive PoE. A suitable PoE adapter and a power cable are included in the scope of delivery, which significantly simplifies installation with just one Ethernet cable.
What Wi-Fi speeds can I expect from the Cudy AP3000 Outdoor?
The Cudy AP3000 Outdoor offers a combined Wi-Fi speed of up to AX3000. Specifically, this means up to 2402 Mbps in the 5 GHz band (with 160 MHz channel width) and up to 574 Mbps in the 2.4 GHz band. These high speeds, combined with Wi-Fi 6 technologies like OFDMA and MU-MIMO, ensure efficient and fast data transmission, even with many connected devices.
Can I use the Cudy AP3000 Outdoor in a Mesh network?
Absolutely! The Cudy AP3000 Outdoor is fully Cudy Mesh compatible. This allows you to easily expand your existing Cudy Mesh network or build a new, seamless Wi-Fi system with uninterrupted roaming. This way, your devices always stay connected to the strongest signal as you move freely.
How many devices can the Cudy AP3000 Outdoor connect simultaneously?
The Cudy AP3000 Outdoor is optimized for high device density. It can easily provide stable Wi-Fi for up to 200 recommended devices simultaneously. Under optimal conditions, up to 512 connected devices are even possible. This makes it ideal for public areas, large gardens, or corporate premises with many users.
