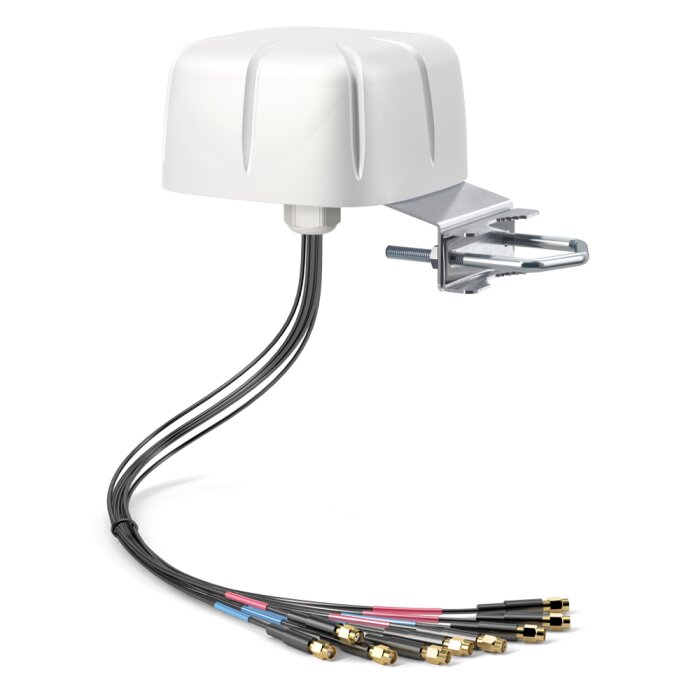

Maximum Signal Integrity: Your Router Directly in the Antenna
The decisive advantage of the QuShell 44G lies in its unique design. Instead of laying long Antenna Cables from the roof of your vehicle or from the mast to your router and losing valuable signal, you install your router (e.g., from Teltonika 4G / 5G Routers) directly in the weatherproof IP67 Enclosure. The connection to the nine high-performance Antennas is made via ultra-short 50-cm cables. The result: drastically reduced signal attenuation, which directly translates into higher speeds and a significantly more stable connection – especially in areas with weak Network coverage.
Built for the Future: 5G and WiFi 6E On Board
With the QuShell 44G, you are investing in a future-proof solution. The Antenna covers an extremely wide frequency spectrum, including all important 5G bands below 6 GHz as well as the modern WiFi 6E Standard up to 7.2 GHz. This means you are optimally equipped not only for today's but also for future mobile and WiFi technologies. Whether for high-speed internet in the RV or as a reliable Industrial 4G Antenna with WiFi 6E and GPS – this Antenna delivers the necessary performance for the most demanding applications.
Uncompromisingly Robust: The All-in-One Solution for Mobile Deployments
The QuShell 44G was developed for use under the harshest conditions. The Enclosure made of durable ABS plastic is IP67 certified, making it completely protected against dust and temporary immersion. The wide operating temperature range of -40°C to +80°C guarantees reliable function in ice and snow as well as in direct sunlight. As an omnidirectional 5G Outdoor Antenna for vehicles, it is the perfect choice for trucks, RVs, emergency vehicles, boats, and Yachts, where simple installation and maximum reliability are required.
Strengths & Notes at a Glance
- Pro: Drastically reduced signal losses due to internal router Mounting lead to higher data rates and more stable connections.
- Pro: Future-proof thanks to extremely wide frequency coverage for 5G (Sub-6GHz) and WiFi 6E (up to 7.2 GHz).
- Pro: Extremely robust (IP67) and suitable for the most demanding mobile, maritime, or industrial environments.
- Pro: Significantly simplifies installation, as nine individual Antennas are combined in a single, clean solution.
- Note: As an Omni-Directional Antenna, it is ideal for mobile applications. For stationary setups with a known transmitter direction, a Directional Antenna might achieve higher gain.
- Note: The Antenna gain is solid for an Omni-Directional Antenna, but in extreme fringe areas, a high-gain Directional Antenna might be required.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuShell 44G |
| HAN/MPN: | ASL44G |
| EAN: | 5905868602340 |
| Product Type: | Passive 9-in-1 Antenna System with Router Enclosure |
| Total Antennas: | 9 |
| 5G / 4G Configuration: | 4x4 MIMO Omnidirectional |
| WLAN / WiFi Configuration: | 4x4 MIMO Omnidirectional (WiFi 6E) |
| GNSS Configuration: | 1x Active GPS/GNSS Antenna |
| Frequency Range 5G/4G (1): | 617 - 960 MHz |
| Gain 5G/4G (1): | 2 dBi |
| Frequency Range 5G/4G (2): | 1.7 - 2.7 GHz |
| Gain 5G/4G (2): | 4 dBi |
| Frequency Range 5G/4G (3): | 3.3 - 3.8 GHz |
| Gain 5G/4G (3): | 5 dBi |
| Frequency Range 5G/4G (4): | 4.2 - 6.0 GHz |
| Gain 5G/4G (4): | 6 dBi |
| Frequency Range WLAN (1): | 2.4 - 2.5 GHz |
| Gain WLAN (1): | 2 dBi |
| Frequency Range WLAN (2): | 5.0 - 7.2 GHz |
| Gain WLAN (2): | 5 dBi |
| GNSS Amplification (LNA): | 18 dB |
| Polarization: | Vertical |
| Radiation Pattern (Horizontal): | 360° |
| Radiation Pattern (Vertical): | 25° |
| Impedance: | 50 Ω |
| VSWR: | < 2.50 |
| Maximum Input Power: | 50 W |
| DC Grounding: | Yes |
| Connectors 5G/4G: | 4x SMA connectors |
| Connectors WiFi: | 4x RP-SMA connectors |
| Connector GNSS: | 1x SMA connector |
| Standard Cable Length: | 50 cm |
| Housing Material: | ABS plastic |
| Color: | White |
| Dimensions (W x D x H): | 160 x 160 x 240 mm |
| Weight (Antenna Unit): | 1.5 kg |
| Weight (Mounting Kit): | 0.4 kg |
| Protection Class: | IP67 |
| Operating Temperature: | -40°C to +80°C |
| Mounting Type: | Mast, wall, and surface Mounting |
| Mounting Kit Material: | Galvanized steel |
| Suitable Mast Diameter: | 40 - 60 mm |
Scope of Delivery
| 1 x QuWireless QuShell 44G (ASL44G) |
| 1 x Integrated Mounting Kit for Mast/Wall/Surface |
Frequently Asked Questions (FAQ)
Is the QuWireless QuShell 44G a router?
No, it is purely an Antenna system. You need a separate 5G/4G Router (e.g., from Teltonika, RUTX50), which can be installed into the weatherproof Enclosures of the Antenna to ensure full functionality.
Can I use this Antenna for my motorhome or boat?
Yes, absolutely. The QuShell 44G is ideal for mobile applications such as on Yacht / Camper / Motorhome, trucks, buses, and in the maritime sector, thanks to its omni-directional characteristic, robust IP67 design, and broad frequency coverage for 5G Antennas / Outdoor Antennas and Vehicle Antennas - LTE, 5G, WiFi.
What does 9-in-1 mean for this Antenna?
9-in-1 means that nine separate Antenna elements are integrated into one Enclosures: four for 5G/4G (4x4 MIMO), four for WiFi 6E (4x4 MIMO), and one for GPS/GNSS services. This makes it a versatile solution for 5G Antennas / Outdoor Antennas and Dual-Band / WiFi 6E / WiFi 7 Antennas.
Does this Antenna guarantee to improve my mobile reception?
It significantly improves signal quality by enabling reception through external, optimized Antennas and minimizing signal loss through short Antenna Cables. However, there is never a guarantee of reception, as this depends on the provider's Network coverage at the specific location.
What is the advantage of WiFi 6E support?
WiFi 6E extends the WiFi standard to include the 6 GHz frequency band. This band is less congested than the 2.4 GHz Components and 5 GHz Components bands, leading to higher speeds, lower latencies, and less interference – ideal for demanding applications and supported by Dual-Band / WiFi 6E / WiFi 7 Antennas.
Is the installation complicated?
Mechanical mounting on a mast or wall is straightforward thanks to the included Mounting Systems kit. Electrical installation requires opening the Enclosures, installing a compatible Router, and correctly connecting the short Antenna Cables. Basic technical understanding is advantageous for this.
