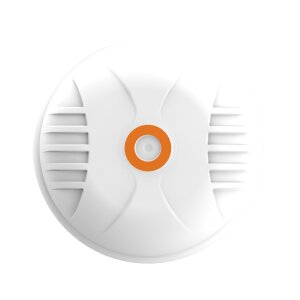

Poynting MIMO-4-4: The Benchmark for Professional Connectivity
The MIMO-4 series is the evolution of the legendary MIMO-3 transport antennas. It was specifically developed for situations where compromising on connection quality is not an option. While ultra-compact antennas (like the PUCK series) are optimized for minimal space requirements, the MIMO-4 uses its slightly larger volume for physically optimized antenna spacing.
The result: Excellent isolation of the 4x4 MIMO signals. For you, this means: Higher data throughput and more stable connections at the edge of cell towers.
Scenario 1: Premium Campers & Expedition Vehicles
Anyone working in a motorhome ("Digital Nomads") or wanting to enjoy 4K streaming often relies on high-end routers like the Teltonika RUTX50. However, this router can only unleash its full performance with a true 4x4 MIMO antenna.
* Maximum Range: The MIMO-4 pulls in a signal even at remote pitches where a mobile phone has long lost reception.
* Perfect Optics: The aerodynamic, white design fits perfectly on modern GRP roofs of motorhomes and box vans.
* Low Profile: With only 5.5 cm height, it adds minimal bulk and fits under almost any carport or branch.
Scenario 2: Marine & Yachts
On the water, signal strength is everything.
* High-End Routers On Board: Anyone needing professional internet on their yacht needs an antenna capable of 4x4 MIMO. The MIMO-4-4 does exactly that.
* Saltwater Proof: The housing is UV-stable and withstands salt spray and stormy seas (IP69K).
* Design: The low-profile, white design blends perfectly with modern boat superstructures and equipment arches.
Scenario 3: Emergency Vehicles & Public Transport
In professional transport, reliability counts.
* Bus & Train: The antenna provides bandwidth for passenger Wi-Fi (via the router) while simultaneously transmitting telemetry and surveillance camera data via 5G to the control center.
* Operations Command: Fire and police departments use the MIMO-4-4 to connect mobile command centers to the internet. The integrated GPS enables precise location of the vehicle in the control center.
* Certified: Thanks to E-Mark approval, installation in vehicles is permit-free and safe.
Scenario 4: Industry & Mining
In open-cast mines or on large construction sites, conditions are harsh.
* Vibration & Impact Resistance: The antenna is IK10 certified (vandal-proof) and mechanically designed to withstand the vibrations of heavy dump trucks or excavators.
* M2M / IoT: It connects autonomous vehicles or mobile generators to the control room. Due to the ultra-wide frequency range (from 617 MHz), connection in remote areas via low frequencies is also ensured.
Flexible Mounting

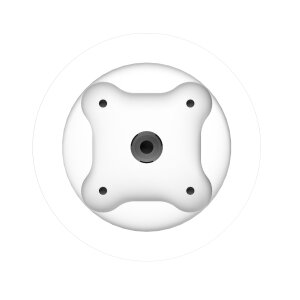

The MIMO-4 offers versatile mounting options included in the box:
1. Threaded Spigot: Standard mounting through the roof (various lengths included).
2. Adhesive Mounting: With the included 3M industrial pad (no drilling required - ideal for camper roofs).
3. Pole Mounting: For attachment to pipes or railings (Marine).
Technical Data
| Manufacturer / Model: | Poynting / A-MIMO-0004-V2-04-W |
| Type: | 5-in-1 Combo Antenna (4x LTE/5G + 1x GPS) |
| Cellular (4x4 MIMO LTE / 5G) | |
| Frequency Bands: | 617 – 960 MHz (Low Band) 1710 – 2700 MHz (Mid Band) 3400 – 4200 MHz (High Band / 5G) |
| Gain (Peak Gain): | 1.5 dBi @ 617-960 MHz 4.5 dBi @ 1710-2700 MHz 6.0 dBi @ 3400-4200 MHz |
| VSWR: | < 2.5:1 (over 90% of the band) |
| Polarization: | Linear Vertical |
| Port Isolation: | Enhanced isolation due to housing size |
| GPS / GNSS (Active) | |
| Frequency: | 1575.42 MHz / 1600 MHz (GPS, GLONASS, Galileo) |
| LNA Gain: | 21 dBi |
| Voltage: | 2.7 - 3.3 V DC (max. 12mA) |
| Mechanical & Environmental | |
| Cables: | 5x 2m HDF-195 (Cellular) / RTK-031 (GPS) |
| Connectors: | 4x SMA Male (Cellular) 1x SMA Male (GPS) |
| Material: | UV-stable ASA (Halogen-free) |
| Color: | White (Brilliant White) |
| Protection Ratings: | IP69K (High Pressure/Waterproof) & IK10 (Impact Resistant) |
| Temperature Range: | -40°C to +80°C |
| Wind Survival: | Up to 220 km/h |
| Certifications: | E-Mark (E1), UL 94-HB, EN 13823, MIL-STD 810G |
| Dimensions: | 280 x 165 x 55 mm |
| Weight: | Approx. 1.3 kg |
Scope of Delivery
| 1 x Poynting MIMO-4-4 Antenna (White) with 2m cables |
| 1 x Threaded Spigot Set (short & long) |
| 1 x Adhesive Pad (Double-sided) |
| 1 x Pole Bracket & Clamps |
| 1 x Installation Guide |
