An Antenna for All Cases: 5G, Wi-Fi 6E & GPS in Perfection

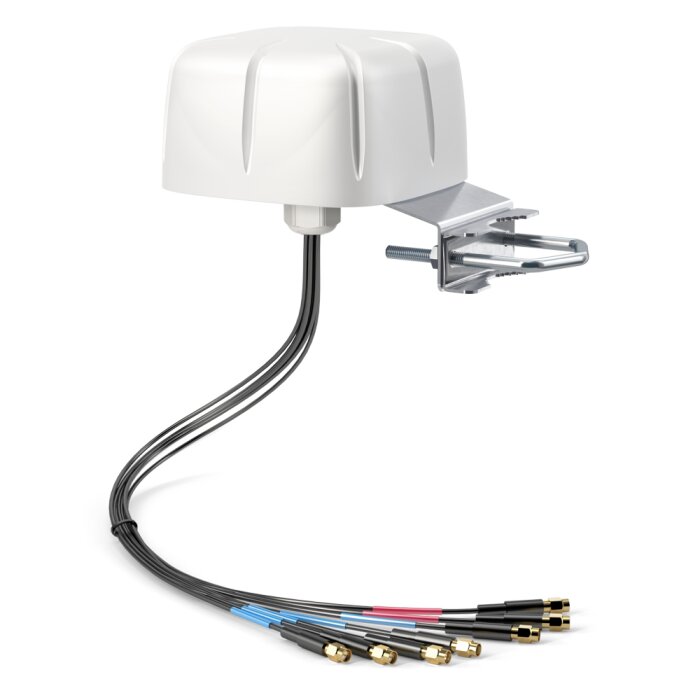

No more cable clutter and complicated installations of countless individual Antennas. The QuWireless QuShell 42G is the smart all-in-one solution for anyone who doesn't want to miss out on high-speed internet on the go or in demanding locations. Whether on the roof of your truck, on board your yacht, or as part of an industrial IoT system – this Antenna bundles all the necessary technology into a single, optimized Enclosure. You simply connect the pre-assembled Cables to your compatible Router, for example from Teltonika 4G / 5G Routers, and immediately benefit from a significantly more stable and faster signal. It is an excellent choice as a Marine Antenna or as part of your mobile office.
Built for Extremes: IP67 Protection for Uncompromising Reliability
The QuShell 42G was not designed for the desk, but for the harsh reality out there. The robust ABS plastic Enclosure is IP67 certified. This means it is completely dustproof and can even withstand temporary immersion. Whether in a storm at sea, on dusty construction sites, or driving through a car wash – your connection remains protected. This resilience makes it the first choice for emergency vehicles, the logistics industry, and any application where reliability is crucial. A weatherproof IP67 WiFi 6E Outdoor Antenna for Boats and vehicles you can rely on.
Maximum Performance with 4x4 MIMO and Wi-Fi 6E
This Antenna is more than just a receiver – it's a performance booster. The four integrated 5G/4G Antennas enable 4x4 MIMO, a technology that sends and receives multiple data streams simultaneously. The result is drastically higher speed and a more robust connection, even with weak reception. Additionally, with the two Wi-Fi 6E Antennas, you are future-proof and can utilize the less congested 6 GHz band for lightning-fast WiFi. The QuWireless ASL42G Antenna for Teltonika Routers is the perfect addition to unleash the full potential of your mobile Router.
Strengths & Notes at a Glance
- Pro: Bundles 7 Antennas in one Enclosure, simplifying installation and maintenance.
- Pro: Extremely robust and weatherproof thanks to IP67 certification, ideal for mobile and maritime applications.
- Pro: Very wide frequency band support for global compatibility with 5G, 4G, and Wi-Fi 6E.
- Pro: Flexible and stable Mounting System kit for mast, wall, or surface mounting is included.
- Note: The standard cable length of 50 cm requires a router-close installation.
- Note: Connecting the seven Cables requires basic technical understanding for optimal performance.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuShell 42G |
| Manufacturer Part Number (MPN): | ASL42G |
| EAN / GTIN: | 5905868602333 |
| Antenna Type: | Omnidirectional 7-in-1 Multiband Mobility Antenna |
| Integrated Antennas: | 4x 5G/4G, 2x Wi-Fi 6E, 1x GPS/GNSS |
| 5G/4G Connectivity: | 4x4 MIMO |
| 5G/4G Frequency & Gain (617-960 MHz): | 2 dBi |
| 5G/4G Frequency & Gain (1.7-2.7 GHz): | 4 dBi |
| 5G/4G Frequency & Gain (3.3-3.8 GHz): | 5 dBi |
| 5G/4G Frequency & Gain (4.2-6.0 GHz): | 6 dBi |
| Wi-Fi Connectivity: | 2x2 MIMO |
| Wi-Fi Frequency & Gain (2.4-2.5 GHz): | 2 dBi |
| Wi-Fi Frequency & Gain (5.0-7.2 GHz): | 5 dBi (Wi-Fi 6E ready) |
| Wi-Fi VSWR: | < 2.50 |
| Wi-Fi Polarization: | Vertical |
| Wi-Fi Impedance: | 50 Ω |
| GPS/GNSS Antenna: | Active with LNA |
| GPS/GNSS LNA Gain: | 18 dB |
| Connectors 5G/4G + GPS: | 5x SMA-Male |
| Connectors Wi-Fi: | 2x RP-SMA-Male |
| Standard Cable Length: | 0.50 m |
| Protection Class: | IP67 (dustproof, protected against temporary immersion) |
| Housing Material: | ABS Plastic |
| Color: | White |
| Dimensions (External): | 160 x 160 x 240 mm |
| Application Area: | Outdoor, Mobile, Maritime, Industry |
| Mounting Kit Material: | Galvanized Steel |
| Mounting Kit Weight: | 0.4 kg |
| Possible Mounting Types: | Mast, Wall, Surface, Marine |
| Supported Mast Diameter: | 40-60 mm |
Scope of Delivery
| 1 x QuWireless QuShell 42G Antenna (ASL42G) |
| 1 x Galvanized Steel Mounting Kit |
Frequently Asked Questions (FAQ)
What does '7-in-1 antenna' mean for the QuShell 42G?
A 7-in-1 antenna like the QuShell 42G integrates seven separate antenna elements into a single housing. This includes four antennas for 5G/4G mobile communication (enabling 4x4 MIMO for higher speeds), two antennas for Dual-Band Wi-Fi 6E (2.4 GHz and 5-7.2 GHz), and an active GPS/GNSS antenna for precise positioning. These versatile Antennas are ideal for robust Network connectivity.
For which application areas is the QuShell 42G optimally suited?
The QuShell 42G is specifically designed for mobile and demanding applications. These include public transport (buses), emergency vehicles (fire brigade, ambulances), maritime shipping (Yacht / Camper / Motorhome, boats), logistics and transport vehicles, as well as stationary M2M / IoT Antennas - LTE, 5G, WiFi systems in harsh industrial environments. It's part of a complete set of WiFi, 4G, and 5G Antennas.
Do I need a special router for this antenna?
Yes, you need a router or modem that has the appropriate external antenna connections: four for 5G/4G (typically SMA), two for Wi-Fi (typically RP-SMA), and optionally one for GPS. Routers from manufacturers like Teltonika, such as Teltonika LTE / 5G Routers, Cradlepoint, or Robustel, are often compatible with this antenna, providing excellent connectivity with these Antennas.
Does this antenna improve my reception even with a very weak signal?
An external antenna like the QuShell 42G can significantly stabilize a weak outdoor signal and improve data rates, as it can be optimally positioned and has higher gain than internal antennas. It can, however, not 'create' a signal where none exists. A basic prerequisite is at least minimal available mobile reception at the mounting location. For optimal placement, consider Antenna Mounting Accessories.
Is the antenna suitable for use at sea?
Yes, thanks to its robust construction, IP67 certification, and the included marine mounting Accessories, the antenna is explicitly suitable for use in maritime environments to improve connectivity on ships and yachts. It's an excellent choice for Yacht / Camper / Motorhome applications, offering reliable Antennas for marine conditions.
What is the advantage of 4x4 MIMO for 5G/4G?
4x4 MIMO (Multiple Input, Multiple Output) utilizes four transmit and receive antennas simultaneously to transmit multiple data streams in parallel. This leads to significantly higher data transfer rates, greater Network capacity, and a more stable connection, especially in areas with many reflections (such as in cities). This technology is crucial for modern 5G Antennas / Outdoor Antennas and 4G / LTE Outdoor Antennas.
