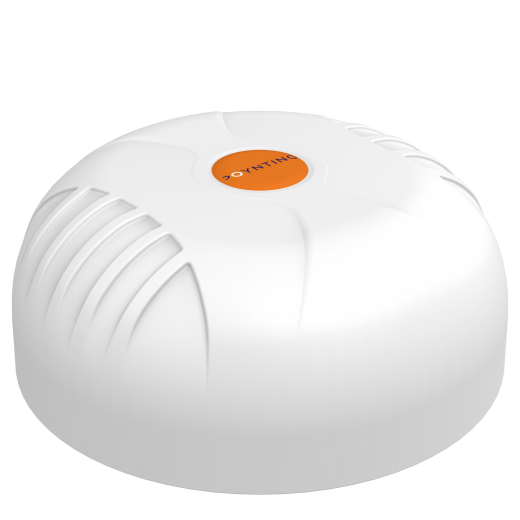

An Antenna for All Cases: 9-in-1 Power for 5G, WiFi & GPS
No more Antenna clutter on the roof! The Poynting MIMO-4-19 integrates nine high-performance Antenna elements into a single, aerodynamic housing. You get four Antennas for 5G/4G, four for Dual-Band WiFi, and an active GPS/GLONASS antenna. This all-in-one solution reduces installation effort to a minimum: one drill hole, one mount, nine connections. This not only preserves the integrity of your vehicle or vessel but also ensures a clean and professional look. It is the perfect complement for a 4x4 MIMO Antenna for Peplink Routers and other high-end devices.
Built for Extremes: IP69K & IK10 Certified Robustness
The MIMO-4-19 was not developed for the desk, but for the harsh reality out there. With IP69K protection, it withstands even high-pressure and steam jet cleaning. The IK10 impact resistance class certifies its highest protection against mechanical impacts. Whether extreme temperatures from -40°C to +80°C, salt spray on the high seas, or constant vibrations in a truck – this antenna simply works. The UV-stable ASA housing guarantees that it will not become brittle or yellow even after years in direct sunlight. This makes it an ideal choice for 4G / 5G Outdoor Antennas.
Maximum Speed: True 4x4 MIMO Performance
To fully exploit the potential of modern 5G and WiFi Routers, MIMO (Multiple-Input, Multiple-Output) is crucial. The MIMO-4-19 offers a 4x4 MIMO configuration for both mobile communications and WiFi. This means that four data streams are sent and received simultaneously. The result: significantly higher data rates, a more stable connection, and better Network coverage, especially in difficult reception situations or while driving. With frequency coverage up to 7200 MHz, it is also already equipped for the upcoming Wi-Fi 6E and Wi-Fi 7 standards.
Thoughtful Installation & Universal Compatibility
Poynting has thought of everything to make installation as easy as possible for you. The antenna is groundplane-independent, meaning it does not require a metallic surface as a counterweight. You can easily mount it on the GRP roof of your motorhome, on a plastic housing of an industrial plant, or of course on metal. Various mounting Accessories are already included in the scope of delivery, including a threaded bolt mount, an adhesive pad, and a mast/wall mount. This makes it an ideal Industrial IoT Antenna for Vehicle Fleets and many other application areas, including Yacht / Camper / Motorhome setups.
Strengths & Notes at a Glance
- Pro: Extreme robustness and durability thanks to IP69K and IK10 protection classes.
- Pro: Future-proof connectivity by covering 5G and Wi-Fi 6E/7 frequency bands.
- Pro: Maximum performance and signal stability through 4x4 MIMO for mobile communications and WiFi.
- Pro: Simplified installation and clean appearance due to all-in-one housing.
- Note: The cable length is fixed at 2 meters. If necessary, high-quality Antenna Cables must be used.
- Note: For older revisions, compatibility with T-Mobile Band 71 (600 MHz) should be checked if explicitly required.
Specifications & Features
| Manufacturer: | Poynting Antennas |
| Model: | MIMO-4-19 |
| HAN / MPN: | A-MIMO-0004-V1-19-W |
| EAN / GTIN: | 6009710925362 |
| Antenna Type: | 9-in-1 Multiband Combination Antenna |
| Radiation Pattern: | Omnidirectional |
| Groundplane-independent: | Yes |
| Application Areas: | Transport, Marine, Industry (M2M / IoT Antennas - 4G, 5G, WiFi), Agriculture |
| Mobile (5G/4G): | |
| Number of Mobile Antennas: | 4 (4x4 MIMO) |
| Mobile Frequency Ranges: | 617-960 MHz, 1427-1517 MHz, 1710-2700 MHz, 3400-6000 MHz |
| Mobile Peak Gain: | 6 dBi |
| Mobile VSWR: | < 2.5:1 over 90% of bands |
| WiFi (Wi-Fi): | |
| Number of WiFi Antennas: | 4 (4x4 MIMO) |
| WiFi Frequency Ranges: | 2400-2500 MHz, 5000-7200 MHz |
| Supported WiFi Standards: | Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Wi-Fi 7 (prepared) |
| WiFi Peak Gain: | 6.5 dBi |
| WiFi VSWR: | < 2:1 |
| GPS/GLONASS: | |
| Number of GPS Antennas: | 1 |
| GPS/GLONASS Frequency Ranges: | 1575.42 MHz (GPS), 1602 MHz (GLONASS) |
| GPS Peak Gain: | 21 dBi (active) |
| GPS Power Supply: | 2.7 - 3.3 V |
| GPS Current Consumption: | 15 mA (typical) |
| GPS Noise Figure: | < 1.5 dB |
| GPS Polarization: | Right-hand Circular (RHCP) |
| Cables & Connectors: | |
| Number of Cables: | 9 |
| Cable Type: | RTK-031 or equivalent |
| Cable Length: | 2 Meters |
| 5G/4G Connectors: | 4x SMA (m) |
| Wi-Fi Connectors: | 4x SMA (m) |
| GPS/GLONASS Connector: | 1x SMA (m) |
| Mechanics & Environment: | |
| Dimensions: | Ø 160 mm x 65 mm |
| Weight (Product): | approx. 1.0 kg |
| Housing Material: | UV-stable ASA |
| Color: | White |
| IP Protection Class: | IP69K |
| Impact Resistance: | IK10 |
| Operating Temperature: | -40°C to +80°C |
| Wind Load Resistance: | >220 km/h |
| Certifications: | CE, E-Mark (R10) |
Scope of Delivery
| 1 x Poynting MIMO-4-19 Antenna (White) with 2m Cable Pigtail |

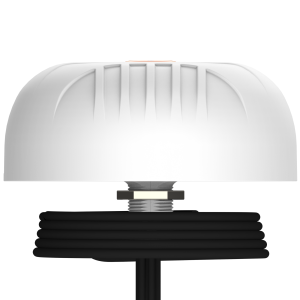

| 1 x Threaded Bolt Mounting Set |
| 1 x Mast/Wall Mount |
| 1 x Adhesive Pad for Surface Mounting |
Frequently Asked Questions (FAQ)
What does '9-in-1' mean for the Poynting MIMO-4-19 Antenna?
The term '9-in-1' means that nine separate antenna elements are integrated into a single physical Enclosure: four for 5G/4G mobile communication (4x4 MIMO), four for dual-band WiFi (4x4 MIMO), and one active antenna for GPS/GLONASS location services. This versatile antenna is perfect for enhancing your Network with advanced 5G Antennas / Outdoor Antennas and WiFi Antennas, ideal for 4G / 5G Routers and WiFi Routers.
Does the MIMO-4-19 require a ground plane?
No, the antenna is designed to be 'ground plane independent'. It does not require a metallic mounting surface to achieve its specified performance, allowing for flexible installation on surfaces made of plastic, GRP (e.g., on motorhomes or boats), or metal. This simplifies Antenna Mounting Accessories and offers versatile Mounting Systems for Yacht / Camper / Motorhome applications.
Is the antenna suitable for marine use?
Yes, absolutely. Thanks to its extremely robust construction (IP69K, IK10), UV and saltwater resistant materials, it is explicitly designed for marine use and is a popular choice for boats and yachts. It ensures stable Antennas WiFi, 4G, 5G connectivity for your Yacht / Camper / Motorhome.
Can I use the MIMO-4-19 with any router?
The antenna is compatible with most modern industrial and mobile routers that feature external antenna connectors (typically SMA) and the appropriate MIMO configuration (4x4 for mobile communication and/or 4x4 for WiFi) to fully utilize its potential. This makes it ideal for enhancing Network connectivity with various 4G / 5G Routers and WiFi Routers, utilizing robust Coaxial Connectors.
What is the difference between the white (W) and black (B) versions of the antenna?
The only difference between the A-MIMO-0004-V1-19-W version and the black variant is the color of the housing. The technical specifications, performance, and scope of delivery are identical. Both versions offer the same robust performance for your Network and are available as Accessories.
How difficult is the installation of the Poynting MIMO-4-19?
Installation is simplified by the all-in-one design. It typically requires a single drill hole to route the nine Cabling indoors. Poynting provides various Mounting Systems (threaded bolt, pole mount, adhesive pad) for diverse installation scenarios, making it easy to integrate into your Network setup with suitable Antenna Mounting Accessories.
