The PUCK-5 v2 antenna from Poynting (A-PUCK-0005-V2-01-W) is a small profile antenna for use in IoT / M2M, smart meters, smart utilities, transportation, shipping and agriculture / farming environments. The PUCK-5 consists of a 5-in-1 antenna system in a single housing and has 2x2 MIMO 4G / 5G, 2x2 MIMO WiFi (dual band 2.4 GHz & 5 GHz) and GPS / GLONASS antenna elements.
The 2x Cellular MIMO antennas (for 4G and 5G) cover the 617 MHz to 6000 MHz band, this includes the most popular international 4G and 5G bands. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO.
The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna.
Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for 4G and 5G throughput and connection stability. This antenna is designed so that both the 4G ports are connected to the router/device to ensure the best performance.

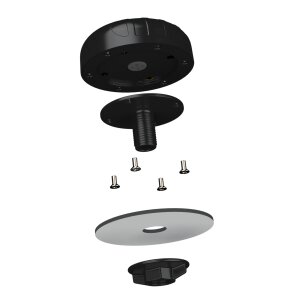

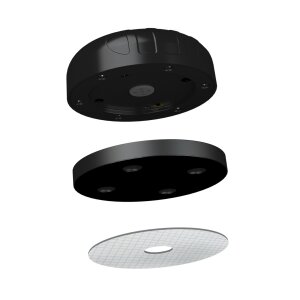

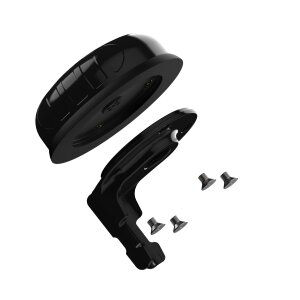

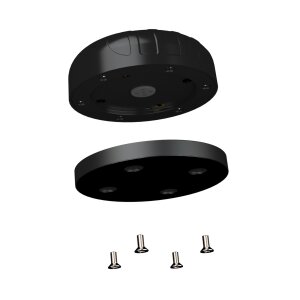

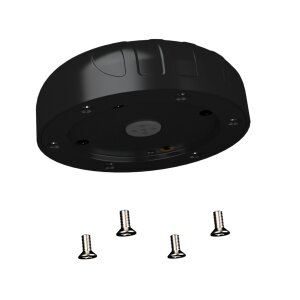

Supplied mounting systems
- Spigot Mount
- Magnetic Mount
- Adhesive Tape Mount
- Bracket Mount
Application Areas
- Private Vehicles, Campers, Caravans, Motorhomes
- Public Vehicles, Trucks, Tractors, Industrial Vehicles
- Installations on ceilings, equipment cabinets or machines
- M2M (Machine to Machine) and other IoT (Internet of Things) applications
Connector / Cable
- 2 x 2m RG-174 cable - 5G/4G with SMA plug
- 2 x 2m RG-174 cable - WiFi with RP-SMA plug
- 1 x 2m RG-174 cable - GPS / GLONASS with SMA plug
Technical Data:
| Manufacturer / Model: | Poynting / A-PUCK-0005-V2-01-W |
| Antenna Type: | Omnidirectional |
| Frequency 5G / 4G: | 617 - 6000 MHz |
| Gain 5G / 4G: | 6.5 dBi |
| Frequency WiFi: | 2400-2500 MHz, 5000-6000 MHz |
| Gain WiFi: | 6dBi |
| Frequency GPS: | 1575.42 - 1600 MHz |
| Gain GPS: | 21 +-2 dB |
| Cable / Connection: | 2 x 2m cable / SMA male (4G / 5G) 2 x 2m cable / RP-SMA male (WiFi) 1 x 2m cable / SMA male (GPS) |
| Impedance | 50 Ohm |
| Appliance: | In- and Outdoor |
| IP-Rating: | IP 68 (exclude cable outlet) |
| Temperature Range: | -40° to 80° C |
| Humidity: | up to 95% |
| Dimensions: | Ø99.3 mm x 36 mm |
| Color: | White |
Scope of delivery:
| 1 x Poynting PUCK-5 v2 5G / 4G / GPS / WiFi Antenna, White |
| Set of mounting kits |
