No More Slow Internet: The Ultimate 5G Solution for Your RUTC50

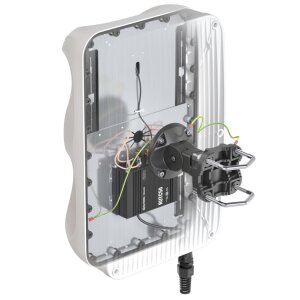

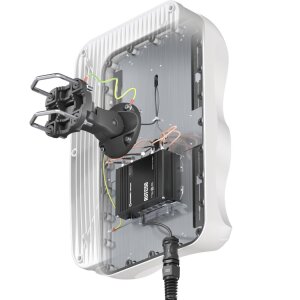

If you want to unleash the full potential of your Teltonika RUTC50 5G router, there's no getting around a professional outdoor Antenna. The QuMax AC50M is the smartest choice here. Instead of laying long Antenna Cables from the roof to the router and losing valuable signal in the process, you integrate the router directly into this weatherproof 5G directional Antenna IP67 Enclosure. This method is the gold standard for tackling the problem of weak reception at its root and ensuring a stable, high-performance internet connection, making it an ideal solution for 5G Antennas / Outdoor Antennas.
No Compromises: Maximum Performance Without Signal Loss
Every meter of Antenna Cables causes attenuation that weakens your signal. The QuMax AC50M completely eliminates this weak point. The powerful 4x4 MIMO directional antenna is connected directly to your RUTC50 via short Coaxial Pigtails. The result is a maximum transmission rate and a significantly more stable signal. This All-in-One Antenna System is the perfect solution to improve the Teltonika RUTC50 signal, especially in challenging environments such as rural areas or shielded locations.
Built to Last: IP67 Protection and Easy PoE Installation
The robust Enclosure made of UV-resistant ABS plastic reliably protects your valuable router from the harshest weather conditions and is IP67 certified. Installation becomes child's play thanks to the clever use of Power over Ethernet (PoE). You only need a single Ethernet Cable that carries both data and power to the antenna and the router inside. This saves you the complex installation of an electrical outlet on the roof or mast, effectively utilizing PoE Injectors / Power Supplies.
Everything On Board: From 5G MIMO to Wi-Fi 6E
The QuMax AC50M is more than just an Enclosure with a 5G Antenna. It is a complete outdoor connectivity hub. In addition to the powerful 5G/4G directional antenna, omnidirectional WiFi Antennas for Wi-Fi 6 and Wi-Fi 6E (Dual-Band / WiFi 6E / WiFi 7 Antennas) as well as an active GPS Antenna are already integrated. This allows you not only to receive a perfect mobile signal but also to provide your outdoor area, such as the garden, yard, or company premises, with high-speed Wi-Fi, functioning like a WiFi Access Point.
Strengths & Notes at a Glance
- Pro: Direct router installation in the enclosure eliminates signal losses from long cables.
- Pro: Extremely robust, weatherproof IP67/IP68 enclosure for year-round outdoor use.
- Pro: Simplified installation and Power Supply via a single Ethernet Cable (PoE).
- Pro: Future-proof with support for extremely wide frequency bands (5G/4G) and Wi-Fi 6/6E.
- Note: The Teltonika RUTC50 5G router is not included and must be purchased separately. Consider our Teltonika 4G / 5G Routers.
- Note: Passive PoE is only supported from RUTC50 Hardware Revision 0303 (Batch 007+). Please check before purchasing!
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuMax AC50M |
| EAN/GTIN: | 5905868603026 |
| HAN/MPN: | AC50M |
| Product Type: | Integrated Outdoor Antenna System with Enclosure |
| Compatibility: | Teltonika RUTC50 (primary), RUTC40, RUTC42 |
| Enclosure Material: | ABS (UV-resistant, weatherproof) |
| Protection Class: | IP67 / IP68 |
| Dimensions: | 392 x 392 x 99 mm |
| Weight: | approx. 2.5 kg |
| Operating Temperature: | -40 °C to 80 °C |
| Power Supply: | Via Passive Power over Ethernet (PoE) through the router |
| 5G / 4G Directional Antenna (4x4 MIMO) | |
| Frequency & Gain (5G/4G): | 617-960 MHz: 6 dBi | 1700-2700 MHz: 7 dBi | 3300-4600 MHz: 7 dBi | 4700-6000 MHz: 5.5 dBi |
| Polarization (5G/4G): | X-Polarization (+/- 45°) |
| Beamwidth (5G/4G): | 80° / 80° (±15°) |
| VSWR (5G/4G): | < 2.0, maximum < 3.0 |
| Impedance (5G/4G): | 50 Ω |
| Internal Connectors (5G/4G): | 4x SMA-Male |
| Internal Cable (5G/4G): | RG316 |
| Wi-Fi Omni-Directional Antenna | |
| Frequency & Gain (Wi-Fi): | 2.40-2.50 GHz: 6 dBi | 5.0-7.125 GHz: 7.5 dBi |
| Supported Standards (Wi-Fi): | Wi-Fi 6, Wi-Fi 6E |
| Polarization (Wi-Fi): | Vertical |
| Impedance (Wi-Fi): | 50 Ω |
| GPS Antenna | |
| Antenna Type (GPS): | Active |
| Frequency (GPS): | 1575.42 MHz (L1) |
| Gain (GPS): | 28 dB (typical) |
| Impedance (GPS): | 50 Ω |
Scope of Delivery
| 1 x QuWireless QuMax AC50M Antenna System |
| 1 x Mast Mounting Kit (Antenna Mounting Accessories) |
Frequently Asked Questions (FAQ)
Which router can be installed in the QuMax AC50M antenna?
The QuMax AC50M is specifically designed for the Teltonika RUTC50 5G Router and offers a precisely fitting installation slot. According to the manufacturer, it is also compatible with the Teltonika RUTC40 and RUTC42 models, part of the Teltonika LTE / 5G Routers range.
How is the QuMax AC50M powered?
Power is supplied intelligently and easily via a single Ethernet Cable using Power over Ethernet (PoE). A PoE Injector / Power Supplies in the building feeds the voltage, which is then routed along with the data to the Router installed in the antenna housing.
Which frequency bands does the 5G/4G antenna of the QuMax AC50M support?
The integrated 5G/4G Directional Antenna supports a very broad frequency spectrum from 617 MHz to 6000 MHz. This includes all common European 4G and 5G bands, such as Band 1, 3, 7, 20, 28, as well as the important 5G Antennas / Outdoor Antennas bands n77 and n78, to ensure optimal connectivity.
Is the antenna suitable for use in rural areas with poor reception?
Yes, absolutely. The combination of a powerful Directional Antenna (up to 7 dBi gain) and the elimination of Cabling losses through Router integration makes this system ideal for locations with weak mobile signals, as is often the case in rural or remote areas.
What is the difference between the 5G Directional Antenna and the WiFi Antennas?
The system uses two antenna concepts: The 4x4 MIMO 5G/4G Antenna is a Directional Antenna. It is precisely aligned with the nearest cell tower to receive a strong signal from there. The integrated WiFi Antennas are Omni-Directional Antennas. They distribute the WiFi signal in a 360-degree radius around the antenna, ideal for providing an outdoor area with fast WiFi 6/6E.
Is the mounting material included?
Yes, a suitable Mounting Systems kit for attaching the Antennas to a mast is included.
