Your RUTC50 in an Outdoor Armor: Maximum 5G Power Without Losses

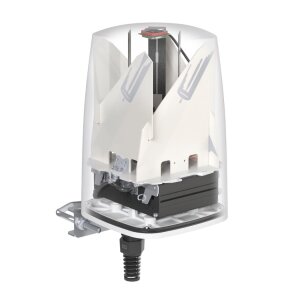

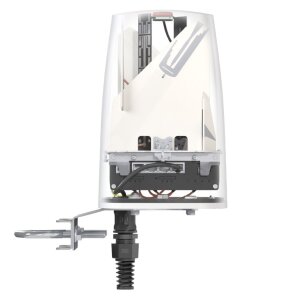

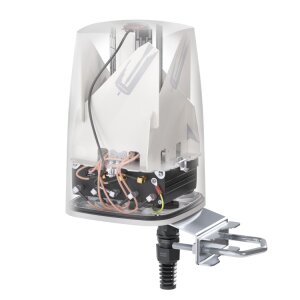

The key advantage of the QuSpot AC50S lies in its clever design. By installing your Teltonika RUTC50 router directly into the Antenna Enclosure, you eliminate the main cause of poor reception: long, lossy Antenna cables. Every meter of cable weakens the precious signal. Here, there are no losses between the Antenna and the router. The result is a significantly more stable connection, higher speeds, and reliable reception, even when the mobile signal is weak. Get the absolute maximum out of your 5G plan – no matter where you are.
Plug & Play Instead of Hours of Alignment: The Omni-Directional Revolution
Forget the tedious task of aligning a directional antenna. The QuSpot AC50S is a 5G/4G MIMO omni-directional antenna that receives signals equally well from all directions (360°). This makes it the perfect choice for mobile applications. Whether you are traveling in a motorhome, anchored on a boat, or changing locations on a construction site, the antenna ensures a constant connection without realignment. Simply mount, connect, and be online instantly.
Built to Last: IP67 Protection for Maritime and Mobile Adventures
The QuSpot AC50S is more than just an antenna – it's a protective shield for your valuable technology. The Enclosure, made of UV-resistant ABS plastic, is IP67 certified, meaning it is completely dust and waterproof. Whether it's continuous rain, saltwater spray at sea, or extreme temperatures from -40°C to +75°C, your router remains safely protected and fully functional. This robustness makes the antenna the first choice for use on yachts, in agriculture, or for any other outdoor application where reliability is key. This All-in-One Outdoor Antenna for Boat 5G is the ideal solution to improve your signal.
Strengths & Notes at a Glance
- Pro: Maximum signal quality by eliminating cable losses.
- Pro: Extremely robust and weatherproof IP67/IP68 all-in-one design.
- Pro: Easy installation without alignment thanks to its omni-directional characteristic.
- Pro: Future-proof with 4x4 MIMO 5G and Wi-Fi 6E support.
- Note: The Enclosure is specifically designed for the Teltonika RUTC50 (as well as RUTC40/42) and is not compatible with other routers.
- Note: The Teltonika RUTC50 5G Router is not included and must be purchased separately.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuSpot AC50S |
| Product Type: | Integrated antenna system with router enclosure |
| Compatible Routers: | Teltonika RUTC50 (primarily), RUTC40/RUTC42 (partially) |
| EAN: | 5905868603019 |
| HAN / MPN: | AC50S |
| Enclosure Material: | ABS, Aluminum, PTFE (UV-resistant) |
| Protection Class: | IP67 / IP68 (dust and waterproof) |
| Dimensions: | 160 x 160 x 240 mm |
| Weight: | 1.5 kg |
| Operating Temperature: | -40°C to +75°C |
| Mounting: | Pole or wall mount |
| Pole Diameter: | 40 - 60 mm |
| External Connector: | 1x RJ45 (waterproof) |
| PoE Support: | Yes, Passive PoE (for RUTC50 from Batch No. 7) |
| 5G / 4G Antenna | |
| Antenna Type: | 4x4 MIMO 5G/4G Omni-Directional Antenna |
| Frequency & Gain (617-960 MHz): | ~2 dBi |
| Frequency & Gain (1.7-2.7 GHz): | ~4 dBi |
| Frequency & Gain (3.3-4.7 GHz): | ~4.5 dBi |
| Frequency & Gain (5.2-6.0 GHz): | 2 dBi |
| Polarization: | Vertical |
| Beamwidth (H/V): | 360° / 25° ±5° |
| Impedance: | 50 Ω |
| VSWR: | <2.00 (max. <2.50) |
| Internal Connectors: | 4x SMA (for router) |
| Wi-Fi Antenna | |
| Antenna Type: | Dual-Band Wi-Fi 6E Omni-Directional Antenna |
| Frequency & Gain (2.4-2.5 GHz): | 6 dBi |
| Frequency & Gain (4.7-6.0 GHz): | 7.5 dBi |
| Polarization: | Vertical |
| Beamwidth (H/V): | 360° / 25° ±5° |
| Impedance: | 50 Ω |
| VSWR: | <1.70 (max. <2.00) |
| Internal Connectors: | 3x RP-SMA (for router) |
| GPS Antenna | |
| Antenna Type: | Active GPS Antenna |
| Frequency Range: | 1.56 – 1.61 GHz |
| Gain (passive): | 3 dBi |
| Gain (active at 3V): | 28 dBi |
| Polarization: | RHCP |
| Power Supply: | 2.5 V ~ 6.5 V DC |
| Power Consumption: | 2.5 - 6.5 mA |
| Impedance: | 50 Ω |
| VSWR: | < 2.0 |
| Internal Connector: | 1x SMA (for router) |
Package Contents
| 1 x QuSpot AC50S Antenna Enclosure |
| 1 x Pole/Wall Mount Kit |
| 1 x QuRJ45 waterproof RJ45 gland |
| 1 x Screw and accessory set |
| 1 x 8mm wrench |
Frequently Asked Questions (FAQ)
What exactly is the QuSpot AC50S?
The QuSpot AC50S is an all-in-one solution that combines powerful 5G, Wi-Fi, and GPS omnidirectional Antennas in a single, weatherproof IP67 enclosure. This enclosure is specifically designed to accommodate a Teltonika RUTC50 5G router and protect it for outdoor use.
Do I need to align the antenna with a cell tower?
No, that is the great advantage of an omnidirectional antenna. It receives signals from all horizontal directions (360 degrees), eliminating the need for manual alignment. This makes it ideal for mobile applications such as on vehicles or boats.
Is the QuSpot AC50S suitable for use at sea?
Yes, absolutely. Thanks to its robust, UV-resistant material and high IP67 protection class, the antenna is ideal for maritime environments like yachts or boats, as it protects the router from saltwater, moisture, and sun exposure.
Does the antenna support Power over Ethernet (PoE)?
Yes, the solution supports Passive PoE, which simplifies Cabling. Data and power can be transmitted over a single Ethernet Cable. Please note that this feature is only supported with Teltonika RUTC50 routers from batch number 7 onwards.
What speed advantages can I expect?
The main advantage is maximizing the router's potential by avoiding signal loss that occurs with long Antenna Cables. This leads to a more stable connection and potentially higher data rates, especially in areas with weak Network coverage. The final speed depends on the mobile plan and Network availability.
Can I install a router other than the Teltonika RUTC50?
No, the enclosure is mechanically and in terms of connections perfectly fitted for the Teltonika RUTC50. Other router models, especially from other manufacturers, will not fit in the enclosure. There is partial compatibility with the Teltonika RUTC40 and RUTC42 models.
