Description

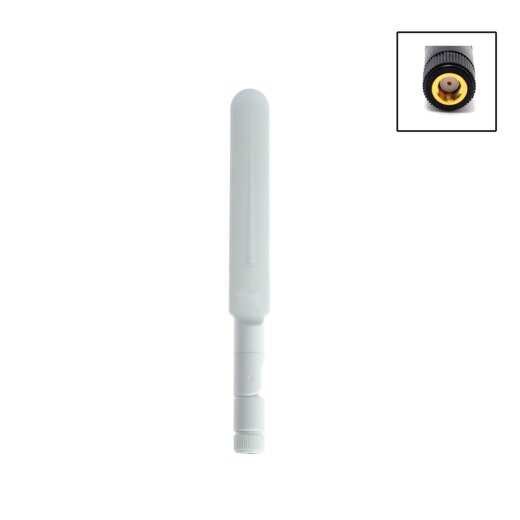

This compact flat type WiFi Omni Antenna is designed for 2.4 GHz WiFi frequency band (IEEE 802.11 b/g/n) and has a gain of 4dBi.
Omnidirectional antennas in general are charcteristically constructed to cover large areas and to provide the WiFi Signal all-over into all directions. This WiFi Antenna has a horizontal beamwidth of 360° and a vertical beamwidth of 50°.
The WiFi Antenna has a RP-SMA female connector (WiFi standard) and can be directly mounted on your WiFi device.
Technical Data:
| Type of Antenna: | Omnidirectional WiFi Antenna |
| Gain: | 4dBi |
| Impedance: | 50 Ohm |
| Frequency: | 2400 - 2485 MHz (IEEE802.11 b/g/n) |
| VSWR: | max. 1.5 |
| Polarisation: | Vertical (Linear) |
| Beam width: | 360° Horizontal 50° Vertical |
| Connector: | RP-SMA female connector |
| Appliance: | Indoor |
| Dimensions: | 16 × 1.78 × 1.37 cm |
| Weight: | 24g |
| Color: | White |
| Operating Temperature: | -20° to 60° C |
| Storage Temperature: | -30 bis 75° C |
Scope of delivery
| 1 x 2.4GHz, 4dBi Flat Type Omni WiFi Antenna |
