Is Your Network Slowing You Down?
Small offices and demanding home users know the problem: conventional routers quickly reach their limits when it comes to high data rates, complex firewall rules, or VPN connections. Lags, unstable connections, and a lack of control over your network are the frustrating reality that impairs your productivity and streaming experience.

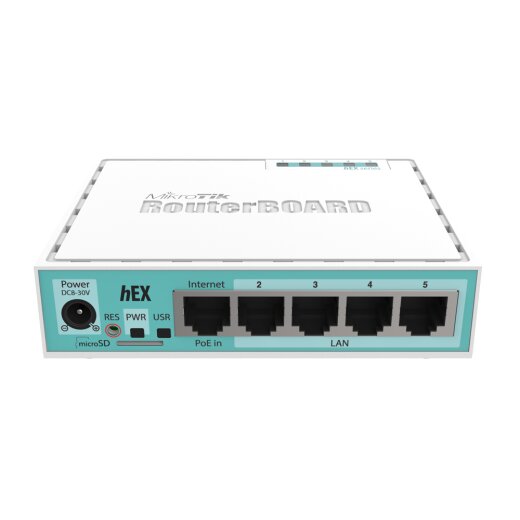

The Solution: MikroTik hEX refresh E50UG – Performance That Excites!
The MikroTik hEX refresh E50UG is the answer to your network problems. With its upgraded Dual-Core ARM CPU at 950 MHz and 512 MB RAM, it offers performance you wouldn't expect from a device in this price range. It effortlessly handles Gigabit speeds and ensures smooth data transfer, even under high load.
Maximum Connectivity and Flexibility
This compact Gigabit Router is equipped with five 10/100/1000 Mbit/s Ethernet ports, allowing flexible connection of your wired devices. The integrated USB Type-A port significantly expands its application possibilities, enabling you to connect an LTE modem, external storage, or other peripheral devices, for example. Passive cooling guarantees silent operation and a long lifespan.
RouterOS v7: Your Network, Your Rules
With the pre-installed RouterOS v7 (License Level 4), you get an operating system that offers unparalleled control over your network. Configure detailed firewall rules, set up VPN tunnels, manage bandwidths, and utilize advanced routing functions – all with an intuitive interface. The MikroTik hEX refresh E50UG is the ideal choice for anyone looking for a reliable, powerful, and customizable network device that grows with their requirements.
Technical Specifications
| Product Code: | E50UG |
| CPU: | EN7562CT Dual-Core ARM |
| CPU Clock Speed: | 950 MHz |
| CPU Cores: | 2 |
| RAM: | 512 MB DDR3L |
| Storage: | 128 MB NAND |
| Ethernet Ports: | 5 x 10/100/1000 Mbit/s Gigabit RJ45 |
| USB Port: | 1 x USB Type A (USB 2.0) |
| PoE Input: | Passive PoE on Ether1 (12-28 V DC) |
| DC Inputs: | 2 (DC jack, PoE-IN) |
| DC Input Voltage: | 12-28 V |
| Max. Power Consumption: | 10 W (4 W without attachments) |
| Cooling Type: | Passive |
| Operating System: | RouterOS v7 |
| RouterOS License Level: | 4 |
| IPsec Hardware Acceleration: | Yes |
| Dimensions: | 113 x 89 x 28 mm |
| MTBF: | Approx. 100,000 hours at 25°C |
| Operating Temperature: | -40°C to 70°C |
| Certifications: | CE, EAC, ROHS |
Scope of Delivery
| 1 x MikroTik hEX refresh E50UG Router |
| 1 x 24V 0.38A Power Adapter |
| 1 x Quick Start Guide |
Häufig gestellte Fragen (FAQ)
What is the main difference between the MikroTik hEX refresh E50UG and older hEX models?
The hEX refresh E50UG offers a significant performance boost thanks to a more modern dual-core ARM CPU with 950 MHz and a doubling of RAM to 512 MB RAM. This results in up to 134% higher performance, especially for demanding routing and firewall tasks.
Does the MikroTik hEX refresh E50UG support Wi-Fi?
No, the MikroTik hEX refresh E50UG is a purely wired router and does not have an integrated Wi-Fi module. It is ideal for environments where wireless connectivity is not needed or where you want to use separate Wi-Fi Access Points for optimal coverage.
Can I connect an LTE modem via the USB port?
Yes, the USB Type-A port of the hEX refresh E50UG can be used to connect an LTE modem, allowing you to use a mobile internet connection as a primary or backup link. This provides additional flexibility and redundancy for your network.
Which RouterOS version is pre-installed on the device and what features does it offer?
The MikroTik hEX refresh E50UG comes with RouterOS v7 (License Level 4) pre-installed. This version offers a wealth of features, including advanced routing protocols (OSPF, BGP), firewall rules, VPN servers and clients (including IPsec hardware acceleration), QoS (Quality of Service), and much more to precisely control and optimize your network.
Is the MikroTik hEX refresh E50UG suitable for continuous operation?
Absolutely! The hEX refresh E50UG is designed for continuous operation and features passive cooling, making it particularly reliable and silent. Its high MTBF (Mean Time Between Failures) of approximately 100,000 hours at 25°C underscores its robustness and longevity.
