Finally stable WiFi for Home Office and Home
No more frustration over bad WiFi. The Cudy M1300 Mesh System was developed to guarantee a stable and reliable internet connection in every corner of your home. Whether you're working in the basement, streaming in the garden, or playing in the attic – the system creates a unified and strong WiFi Network. Through intelligent load distribution and seamless roaming, it ensures stable WiFi for the home office, video conferences without dropouts, and uninterrupted entertainment. It's more than just a simple WiFi Router; it's the command center for your digital life.
The Mesh System with Integrated VPN for Maximum Security
In an era where data security is paramount, the Cudy M1300 goes a decisive step further. It is a full-fledged Mesh Router with VPN functionality. With native support for state-of-the-art protocols like WireGuard, OpenVPN, and IPsec, you can route your entire home Network through a secure VPN tunnel with just one click. Or set up your own VPN server to securely access your data from anywhere in the world. This feature, otherwise only found in expensive professional devices, protects your privacy and secures all your devices simultaneously.
Effortless Setup and Seamless Roaming Throughout the House
Complicated Network configurations are a thing of the past. Setting up the Cudy M1300 is incredibly simple: connect the first unit to your modem and follow the instructions in the Cudy App. Additional nodes are added at the push of a button and configure themselves automatically. The system creates a single WiFi Network (one SSID). As you move through your house, your devices automatically connect to the node providing the strongest signal, without any noticeable interruption. That's true, seamless roaming.
Gigabit Power for Streaming, Gaming, and More
Each M1300 unit is equipped with two Gigabit Ethernet Cables ports. This gives you the freedom to connect important devices like your gaming PC, a game console, or a smart TV directly via cable to utilize the maximum speed and stability of your internet connection. Additionally, you can use the ports for a wired backhaul. In this setup, the mesh nodes are connected via Ethernet Cables, which fully frees up the WiFi bands for your end devices and further boosts the system's overall performance. Perfect for demanding applications and large data volumes.
Strengths & Notes at a Glance
- Pro: Excellent value for money for a full-featured mesh system with Gigabit ports.
- Pro: Exceptionally extensive VPN support (WireGuard, OpenVPN as Client & Server).
- Pro: Effortless setup and flexible expandability with additional units.
- Pro: Stable Gigabit performance on each unit for wired devices or backhaul.
- Note: Based on the Wi-Fi 5 (802.11ac) standard, not the newer Wi-Fi 6 (AX).
- Note: Firmware does not offer official support for a full OpenWrt installation, which limits advanced customizations.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | M1300 |
| EAN: | 6971690792800 |
| Product Type: | WiFi Mesh System |
| Processor: | MediaTek MT7621, 880 MHz Dual-Core |
| RAM: | 128 MB DDR3 |
| Flash Memory (ROM): | 16 MB NOR |
| WiFi Standards: | IEEE 802.11ac/n/a (5 GHz), IEEE 802.11n/b/g (2.4 GHz) |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| Maximum Signal Rate: | AC1200 (867 Mbps bei 5 GHz + 300 Mbps bei 2.4 GHz) |
| WiFi Streams: | 2x2 MIMO (2T2R) for both bands |
| Antennas: | 4x internal omnidirectional Antennas per unit |
| Antenna Gain: | Max. 6.04 dBi (5 GHz), Max. 4.22 dBi (2.4 GHz) |
| Transmit Power (CE): | <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| WiFi Technologies: | MU-MIMO, Beamforming, Seamless Roaming, WMM |

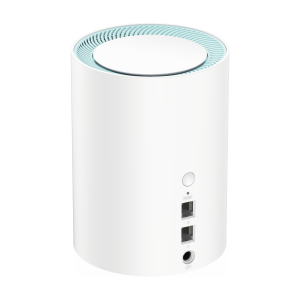

| Ethernet Cables Ports: | 2x Gigabit Ports (1x WAN/LAN, 1x LAN) per unit |
| Buttons: | 1x Pair/WPS, 1x Reset |
| WiFi Encryption: | WPA3, WPA2, WPA, WEP |
| VPN Support: | WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP (Client & Server) |
| WAN Types: | Dynamic IP, Static IP, PPPoE |
| Network Protocols: | IPv4, IPv6, IGMP Snooping |
| Secure DNS: | DNS over TLS (DoT) with Cloudflare, Google, Quad9 |
| Additional Features: | Guest Network, Parental Control, Port Forwarding, UPnP, DMZ |
| Management: | Web-Interface, Cudy Mobile App (iOS & Android) |
| Power Supply: | 12V / 1A DC Power Adapter |
| Power Consumption: | ≤ 11.5 W |
| Dimensions (per unit): | Φ 110 mm × 154.5 mm |
| Weight (per unit): | approx. 291.2 g |
| Operating Temperature: | 0 °C to 40 °C |
| Certificates: | CE, FCC |

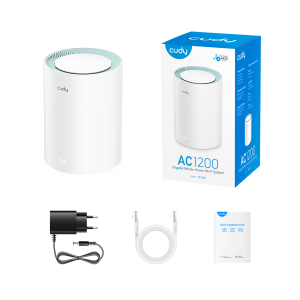

Scope of Delivery
| 1 x Cudy M1300 Mesh Unit |
| 1 x Power Adapter (12V/1A) |
| 1 x RJ45 Ethernet Cables |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
What is the WiFi coverage of the Cudy M1300?
A 3-pack of the Cudy M1300 is designed to provide WiFi coverage for an area of up to 220 square meters (approx. 2400 sq ft). Actual coverage may vary depending on the building's characteristics, such as the thickness and material of the walls.
Can I use the Cudy M1300 with my internet provider's router?
Yes. You can connect the first Cudy M1300 unit to your provider's modem or router via an Ethernet Cable and set up the Cudy system as your primary WiFi network. For optimal performance, it is recommended to disable the WiFi function on the provider's router to avoid interference.
Does the Cudy M1300 support wired backhaul?
Yes. You can connect the mesh nodes to each other with an Ethernet Cable (Wired Backhaul). This ensures a more stable and faster connection between the nodes, as the WiFi bands are fully available for communication with end devices.
How many devices can connect to the Cudy M1300?
The system is designed for up to 128 devices, with a recommended upper limit of approximately 50-100 clients for stable performance. Thanks to MU-MIMO technology, it can serve multiple devices simultaneously more efficiently than older routers.
Is setting up the Cudy M1300 complicated?
No, the setup is designed for beginners. It is primarily done via the Cudy smartphone app, which guides users step-by-step through the process – from connecting the first unit to adding further satellites.
Does the Cudy M1300 offer security features like a firewall or VPN?
Yes, the system features an integrated firewall and offers comprehensive VPN functions. It can connect to external servers as a VPN client or act as a VPN server itself (e.g., via WireGuard or OpenVPN) to enable secure remote access to your home network.
