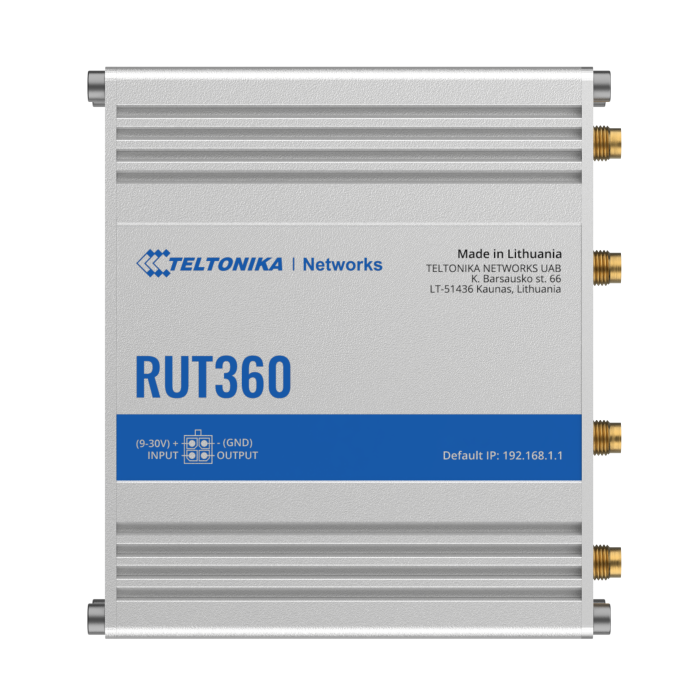

4G Cat 6 Performance: The Turbo for your M2M Application
The Teltonika RUT360 is more than just an update – it's a leap in performance. With 4G Cat 6 and Carrier Aggregation, it bundles two frequency bands simultaneously to deliver download speeds of up to 300 Mbps. That's twice as fast as conventional Cat 4 routers. Whether for transmitting HD video streams from IP Cameras, as fast internet access in remote locations, or for data-intensive IoT applications – the RUT360 ensures that your data flows without bottlenecks.
Built for Extremes: Reliability from -40 to +75 °C
Where consumer hardware long gives up, the RUT360 is just getting started. Its robust aluminum housing reliably protects the high-quality electronics, and the impressive operating temperature range of -40 °C to +75 °C guarantees stable operation under the harshest conditions. The wide input voltage range of 9 to 30 VDC makes it the perfect companion in control cabinets, production facilities, or as a robust 4G Router for Vehicles such as trucks, buses, and motorhomes.
Intelligent Network Management with RutOS & WAN Failover
The heart of the router is RutOS, an OpenWrt-based operating system that gives you full control over your Network. Configure complex firewall rules, set up secure VPN tunnels with OpenVPN or IPsec, and ensure maximum reliability. The WAN Failover function is crucial: If the primary internet connection (e.g., wired WAN) fails, the router automatically and seamlessly switches to the 4G connection. This keeps your application always online.
Full Remote Control thanks to Teltonika RMS
Do you manage a fleet of routers at distributed locations? Then compatibility with the Teltonika Remote Management System (RMS) is your decisive advantage. Access all your devices from a central web interface, monitor their status in real-time, install firmware updates, or change configurations – all without having to be on-site. This not only saves time and travel costs but also enables proactive maintenance of your entire infrastructure. You can find suitable devices in our category of Teltonika 4G / 5G Routers.
Strengths & Notes at a Glance
- Pro: Offers significantly higher cellular speeds (up to 300 Mbps) than older models with 4G Cat 6 and Carrier Aggregation.
- Pro: Extremely robust design with aluminum housing and a wide operating temperature range (-40 °C to +75 °C), ideal for industry and vehicles.
- Pro: Extensive software functions (RutOS) including WAN Failover, a wide range of VPN protocols, and detailed Firewall.
- Pro: Fully compatible with the Teltonika Remote Management System (RMS) for efficient remote management.
- Note: The Ethernet Ports are limited to 10/100 Mbps, which can restrict the full 4G speed in the wired LAN.
- Note: Only supports the older WiFi standard Wi-Fi 4 (802.11n) in the crowded 2.4 GHz band.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | RUT360 |
| EAN: | 4779027312804 |
| MPN: | RUT360000000 |
| Product Class: | Industrial 4G Cellular Router |
| CPU: | Qualcomm Atheros QCA9531, MIPS 24kc, 650 MHz |
| RAM: | 128 MB, DDR2 |
| Flash Memory: | 16 MB, SPI Flash |
| Cellular Modem: | Qualcomm MDM9240 |
| 4G Category: | 4G Cat 6 with Carrier Aggregation (2CA) |
| 4G Speed: | Up to 300 Mbps (Download), up to 50 Mbps (Upload) |
| 3G Speed: | Up to 42 Mbps (Download), up to 5.76 Mbps (Upload) |
| 4G-FDD Bands: | B1, B3, B5, B7, B8, B20, B28, B32 |
| 4G-TDD Bands: | B38, B40, B41 |
| 3G Bands: | B1, B3, B5, B8 |
| SIM Slot: | 1 x Mini-SIM (2FF), external push/push holder |
| Cellular Antenna Connectors: | 2 x SMA (female) |
| WiFi Standard: | IEEE 802.11b/g/n (Wi-Fi 4), 2.4 GHz |
| WiFi MIMO: | 2x2 MIMO |
| WiFi Speed: | Up to 300 Mbps |
| WiFi Security: | WPA2-PSK, WPA2-Enterprise, WPA3-SAE, WPA3-EAP |
| WiFi Antenna Connectors: | 2 x RP-SMA (female) |
| Ethernet Ports: | 2 x RJ45, 10/100 Mbps (1x WAN configurable as LAN, 1x LAN) |
| Operating System: | RutOS (OpenWrt-based) |
| VPN Support: | OpenVPN, IPsec (IKEv1, IKEv2), GRE, L2TP, PPTP, Stunnel, DMVPN |
| Housing: | Aluminum, IP30 protection class |
| Dimensions (W x H x D): | 100 x 30 x 85 mm |
| Weight: | 247 g |
| Operating Temperature: | -40 °C to +75 °C |
| Power Supply: | 9 - 30 VDC, 4-pin industrial connector |
| Power Consumption: | ~1.5 W (Idle), < 10.5 W (Maximum) |
| Management: | WebUI, FOTA, SSH, SNMP, Teltonika RMS |
Scope of Delivery
| 1 x Teltonika RUT360 Router |
| 2 x 4G Antennas (swivel, SMA male) |
| 2 x WiFi Antennas (swivel, RP-SMA male) |
| 1 x 18W Euro Power Supply |
| 1 x Ethernet Cable (1.5 m) |
| 1 x SIM Adapter Kit |
| 1 x QSG (Quick Start Guide) |
Frequently Asked Questions (FAQ)
Can the Teltonika RUT360 be used as the main internet router for a small office?
Yes, this is possible, especially in locations without a fast DSL or fiber optic connection. With 4G Cat 6 speeds of up to 300 Mbps, it can provide a solid internet connection. However, it should be noted that the Ethernet ports are limited to 100 Mbps and the WiFi to the 2.4 GHz standard.
What does 'Carrier Aggregation' mean for the RUT360?
Carrier Aggregation (CA) is a feature of 4G Cat 6 that allows the router to use two different 4G frequency bands simultaneously. This leads to higher stability, better data rates, and more efficient use of the mobile Network, especially in areas with high network utilization.
Do I need a special SIM card for the RUT360?
No, you do not need a special SIM card. The router uses a standard Mini-SIM (2FF) format SIM card. Any data-enabled SIM card from a mobile provider that supports the router's frequency bands can be used.
Is the Teltonika RUT360 suitable for use in vehicles?
Yes, absolutely. Its robust design, wide input voltage range of 9-30V, which corresponds to the usual 12V/24V vehicle electrical systems, and its compact size make it very well suited for use in cars, buses, or motorhomes.
What is the difference between the RUT360 and the RUT240?
The RUT360 is the direct successor to the bestseller RUT240. The main difference is the mobile technology: The RUT360 uses 4G Cat 6 (up to 300 Mbps), while the RUT240 uses 4G Cat 4 (up to 150 Mbps). The RUT360 therefore potentially offers double the download speed.
Can I remotely restart the router if it stops responding?
Yes, the router has several watchdog functions, including a 'Ping Reboot' that automatically restarts the device if a defined host is no longer reachable. Additionally, it can be remotely administered and restarted via the Teltonika Remote Management System (RMS) or by SMS command.
